天天芯片 - 物料搜索

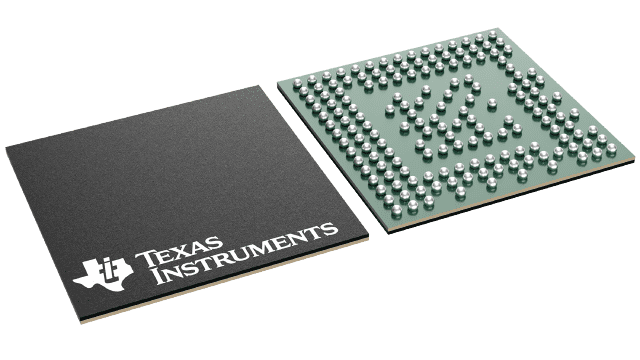

IWR6443

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成 MCU 和硬件加速器的 60GHz 至 64GHz 单芯片智能毫米波传感器

Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 12 Arm CPU: Arm Cortex-R4F at 200 MHz Coprocessors: Radar Hardware Accelerator Interface type: CAN-FD, I2C, LVDS, QSPI, SPI, UART RAM (kByte): 1472 Operating temperature range (°C): -40 to 105 Power supply solution: LP87745-Q1 Rating: Catalog Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 12 Arm CPU: Arm Cortex-R4F at 200 MHz Coprocessors: Radar Hardware Accelerator Interface type: CAN-FD, I2C, LVDS, QSPI, SPI, UART 更多

RAM (kByte): 1472 Operating temperature range (°C): -40 to 105 Power supply solution: LP87745-Q1 Rating: Catalog

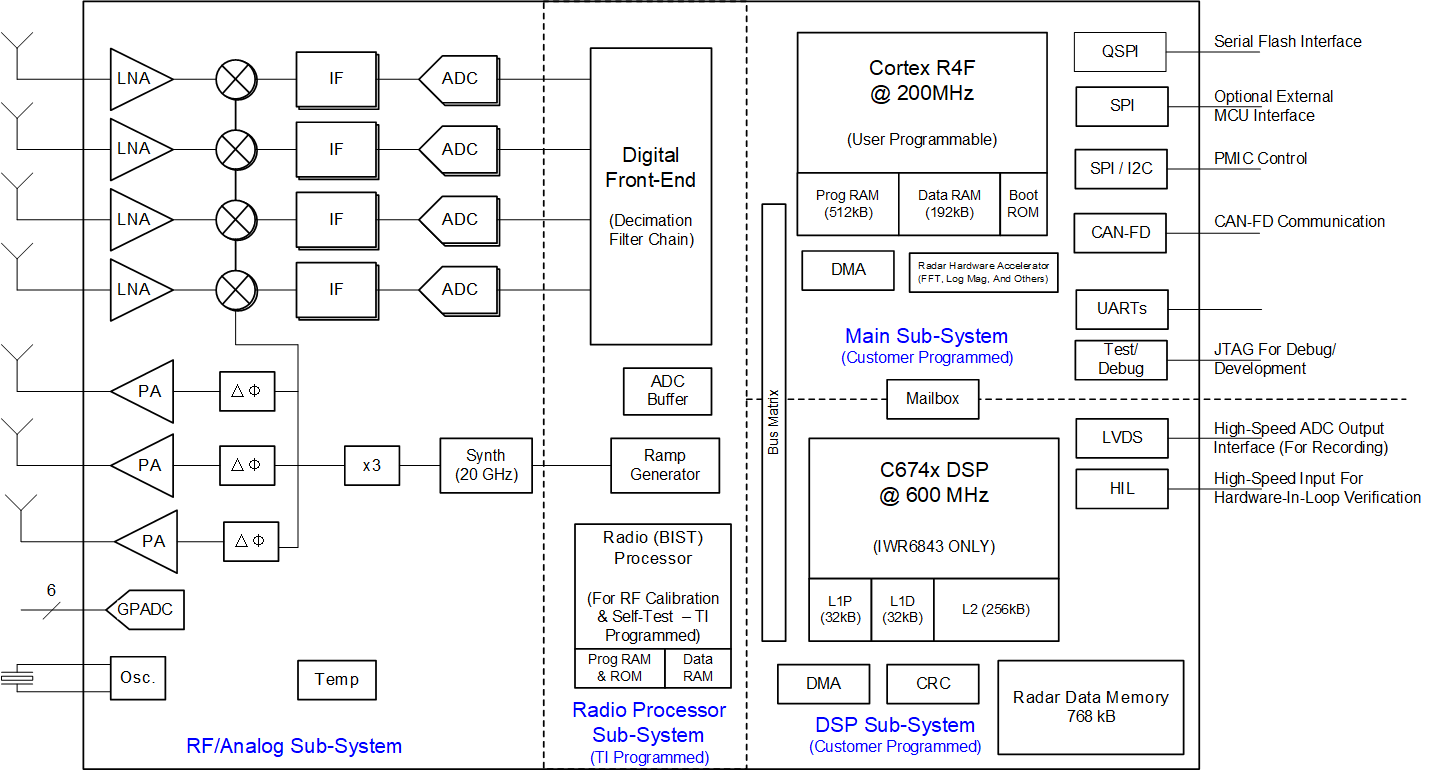

IWR6843

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成有处理功能的 60GHz 至 64GHz 单芯片智能毫米波传感器

Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 12 Arm CPU: Arm Cortex-R4F at 200 MHz Coprocessors: Radar Hardware Accelerator DSP type: 1 C67x DSP @ 600MHz Interface type: CAN-FD, I2C, LVDS, QSPI, SPI, UART RAM (kByte): 1792 Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1 Rating: Catalog Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 12 Arm CPU: Arm Cortex-R4F at 200 MHz 更多

Coprocessors: Radar Hardware Accelerator DSP type: 1 C67x DSP @ 600MHz Interface type: CAN-FD, I2C, LVDS, QSPI, SPI, UART RAM (kByte): 1792 Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1 Rating: Catalog

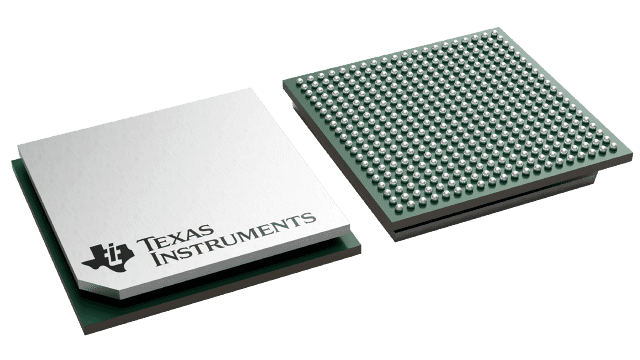

AFE7988

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 4 发送、4 接收、1 反馈、600MHz 至 6GHz、支持高达 1200MHz IBW 的射频采样收发器

Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog

AFE7700

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 4 通道发送、4 通道接收、2 通道反馈、600MHz 至 6GHz、四个 PLL、通用射频收发器

Applications: General purpose Number of TXs and RXs: 4 TX Number of DUCs per TX: 1 Number of DDCs per RX: 1 RF frequency (max) (MHz): 6000 RF frequency (min) (MHz): 600 Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: General purpose Number of TXs and RXs: 4 TX Number of DUCs per TX: 1 Number of DDCs per RX: 1 RF frequency (max) (MHz): 6000 RF frequency (min) (MHz): 600 Operating temperature range (°C): -40 to 85 Rating: Catalog

AFE7920

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有双频带 DUC/DDC 的 4 发送 4 接收 2 反馈射频采样收发器

Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog

AFE7989

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 4 发送、4 接收、1 反馈、600MHz 至 6GHz、支持高达 400MHz IBW 的射频采样收发器

Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog

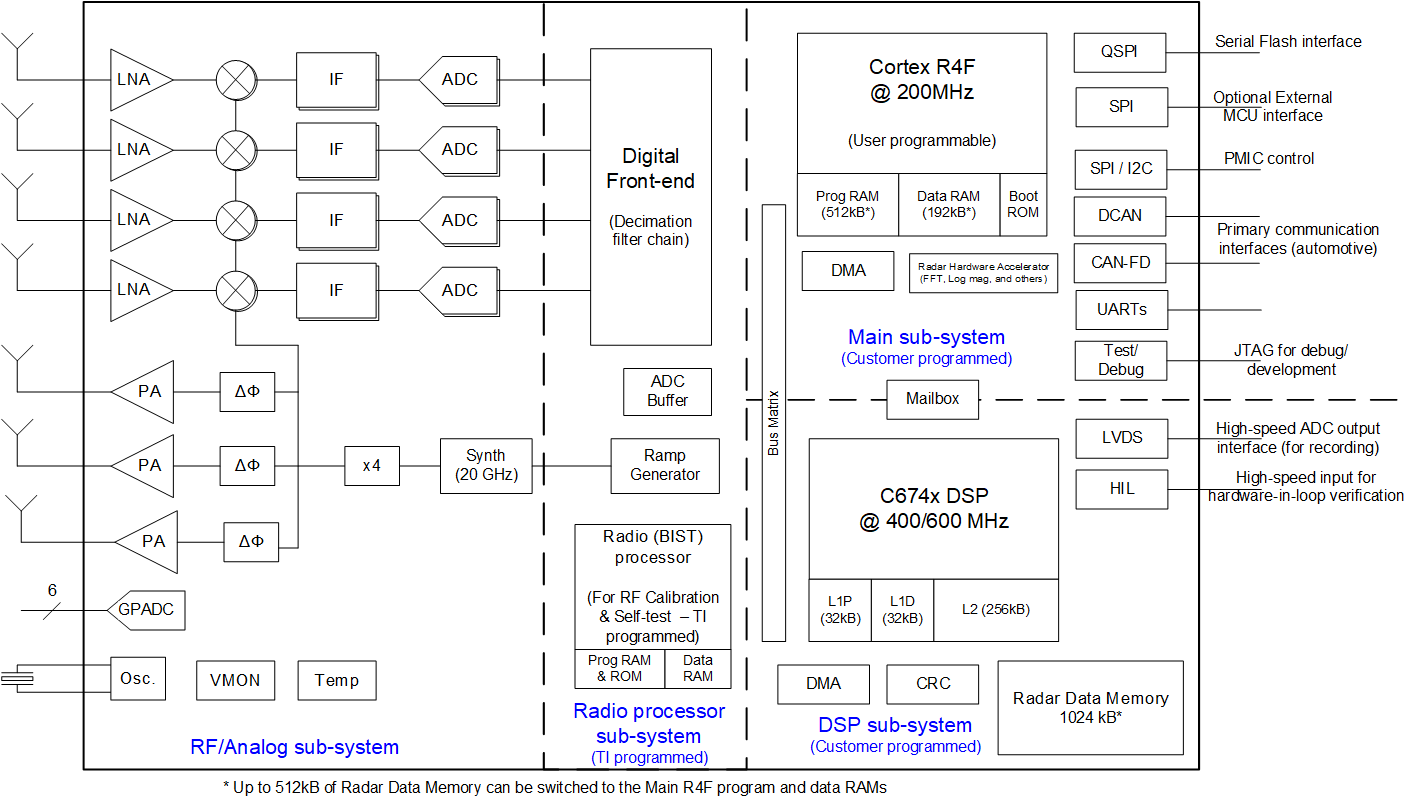

IWR1843

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成 DSP、MCU 和雷达加速器的 76GHz 至 81GHz 单芯片工业雷达传感器

Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 12 Arm CPU: Arm Cortex-R4F at 200 MHz Coprocessors: Radar Hardware Accelerator DSP type: 1 C67x DSP @ 600MHz Interface type: CAN, CAN-FD, I2C, LVDS, QSPI, SPI, UART RAM (kByte): 2048 Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87702-Q1, LP87745-Q1 Rating: Catalog Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 12 Arm CPU: Arm Cortex-R4F at 200 MHz 更多

Coprocessors: Radar Hardware Accelerator DSP type: 1 C67x DSP @ 600MHz Interface type: CAN, CAN-FD, I2C, LVDS, QSPI, SPI, UART RAM (kByte): 2048 Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87702-Q1, LP87745-Q1 Rating: Catalog

AWR1843

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成 DSP、MCU 和雷达加速器的单芯片 76GHz 至 81GHz 汽车雷达传感器

Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: CAN, CAN-FD, I2C DSP type: C674x DSP 600MHz Hardware accelerators: Radar hardware accelerator RAM (kByte): 2048 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP87745-Q1 Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: CAN, CAN-FD, I2C DSP type: C674x DSP 600MHz 更多

Hardware accelerators: Radar hardware accelerator RAM (kByte): 2048 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP87745-Q1

AFE7769

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 4 发送、4 接收、2 反馈、600MHz 至 6GHz、四个 PLL、无线射频收发器

Applications: Wireless infrastructure Number of TXs and RXs: 4 TX, 4 RX, 2 F Number of DUCs per TX: 1 Number of DDCs per RX: 1 RF frequency (max) (MHz): 6000 RF frequency (min) (MHz): 600 Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: Wireless infrastructure Number of TXs and RXs: 4 TX, 4 RX, 2 F Number of DUCs per TX: 1 Number of DDCs per RX: 1 RF frequency (max) (MHz): 6000 RF frequency (min) (MHz): 600 Operating temperature range (°C): -40 to 85 Rating: Catalog

AFE7799

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 4 发送、4 接收、2 反馈、600MHz 至 6GHz、支持高达 600MHz IBW 的射频收发器
