天天芯片 - 物料搜索

CC2674P10

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 1MB 闪存和功率放大器的 SimpleLink™ Arm® Cortex®-M33 多协议 2.4GHz 无线 MCU

Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 1024 RAM (kByte): 296 Number of GPIOs: 42 Sensitivity (best) (dBm): -103 Operating temperature range (°C): -40 to 105 Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 1024 RAM (kByte): 296 Number of GPIOs: 42 Sensitivity (best) (dBm): -103 Operating temperature range (°C): -40 to 105

CC2340R5

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 512kB 闪存的 SimpleLink™ 32 位 Arm® Cortex®-M0+ 2.4GHz 无线 MCU

Type: Wireless MCU Features: LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), OAD Rating: Catalog Flash memory (kByte): 512 RAM (kByte): 36 Number of GPIOs: 12, 26 Sensitivity (best) (dBm): -102 Operating temperature range (°C): -40 to 125 TX power (max) (dBm): 8 Type: Wireless MCU Features: LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), OAD Rating: Catalog Flash memory (kByte): 512 RAM (kByte): 36 Number of GPIOs: 12, 26 Sensitivity (best) (dBm): -102 Operating temperature range (°C): -40 to 125 TX power (max) (dBm): 8

CC2662R-Q1

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 用于无线电池管理系统且通过汽车认证的 SimpleLink™ 无线 MCU

Standard: Wireless BMS Rating: Automotive Operating temperature range (°C): -40 to 105 Standard: Wireless BMS Rating: Automotive Operating temperature range (°C): -40 to 105

CC2651R3SIPA

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有集成天线的 SimpleLink™ 多协议 2.4GHz 无线系统级封装模块

Type: Wireless module Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 32 Number of GPIOs: 32 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105 Type: Wireless module Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 32 Number of GPIOs: 32 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105

CC2652PSIP

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有集成式功率放大器的 SimpleLink™ 多协议 2.4GHz 无线系统级封装模块

Protocols: Bluetooth 5.2 Low Energy, Proprietary 15.4, Thread, Zigbee 3.0 Type: Wireless module Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 88 Number of GPIOs: 32 Sensitivity (best) (dBm): -103 Operating temperature range (°C): -40 to 105 Protocols: Bluetooth 5.2 Low Energy, Proprietary 15.4, Thread, Zigbee 3.0 Type: Wireless module Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 88 Number of GPIOs: 32 Sensitivity (best) (dBm): -103 Operating temperature range (°C): -40 to 105

CC2651P3

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 352kB 闪存的 SimpleLink™ 32 位 Arm® Cortex®-M4 单协议 2.4GHz 无线 MCU

Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 40 Number of GPIOs: 26 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105 Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 40 Number of GPIOs: 26 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105

CC2652RSIP

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 352KB 内存的 SimpleLink™ 多协议 2.4GHz 无线系统级封装模块

Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless module Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 88 Number of GPIOs: 32 Sensitivity (best) (dBm): -99 Operating temperature range (°C): -40 to 105 Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless module Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 88 Number of GPIOs: 32 Sensitivity (best) (dBm): -99 Operating temperature range (°C): -40 to 105

CC2651R3

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 352kB 闪存的 SimpleLink™ 32 位 Arm® Cortex®-M4 单协议 2.4GHz 无线 MCU

Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Peripherals: 1 SPI, 2 comparators, 4 timers, 8-bit DAC, I2C, I2S Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 40 Number of GPIOs: 31 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105 Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Peripherals: 1 SPI, 2 comparators, 4 timers, 8-bit DAC, I2C, I2S Rating: Catalog Flash memory (kByte): 352 RAM (kByte): 40 Number of GPIOs: 31 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105

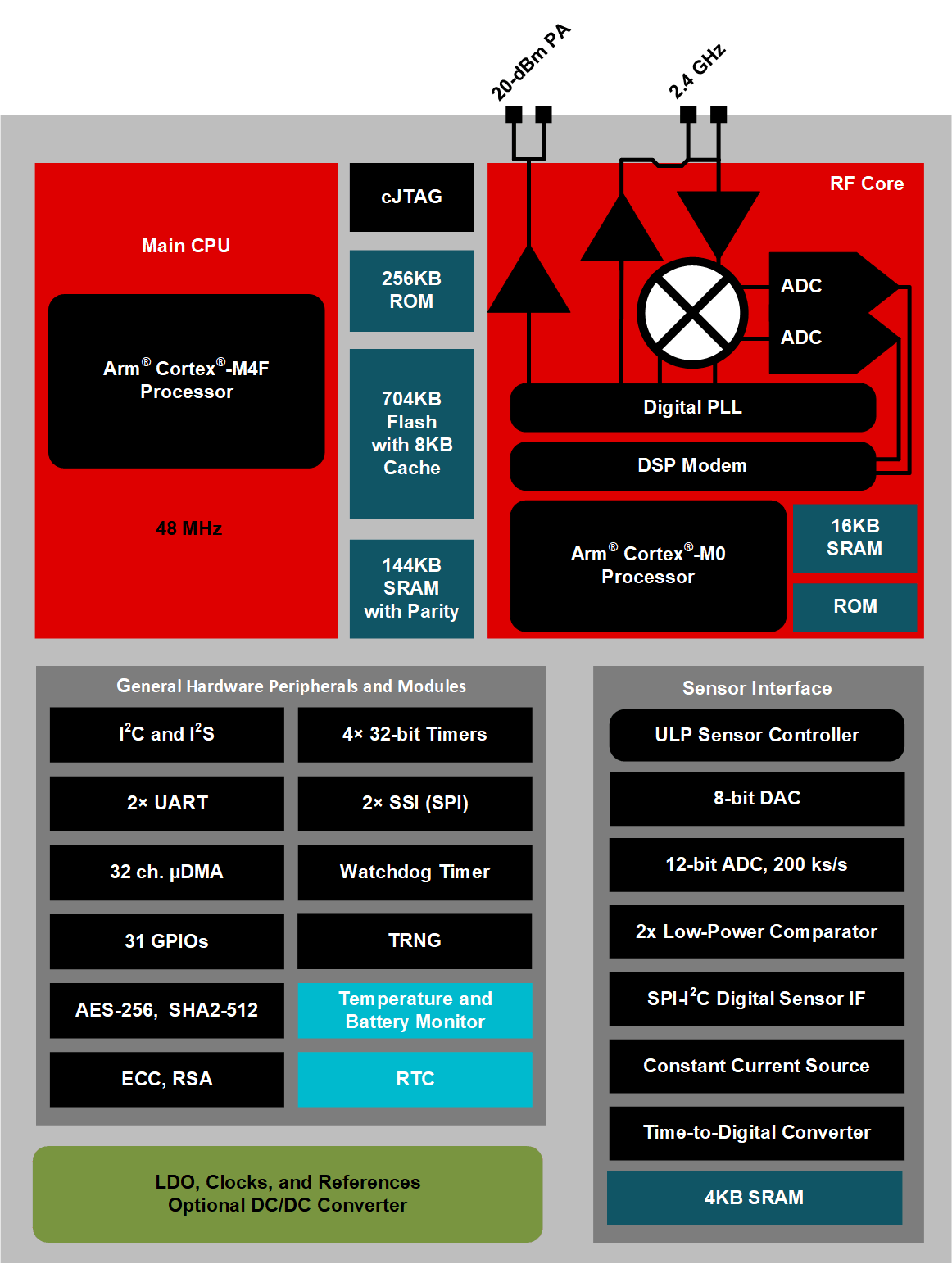

CC2652P7

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有集成式功率放大器的 SimpleLink™ Arm® Cortex®-M4F 多协议 2.4GHz 无线 MCU、704kB 闪存

Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 704 RAM (kByte): 152 Number of GPIOs: 26 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105 Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 704 RAM (kByte): 152 Number of GPIOs: 26 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105

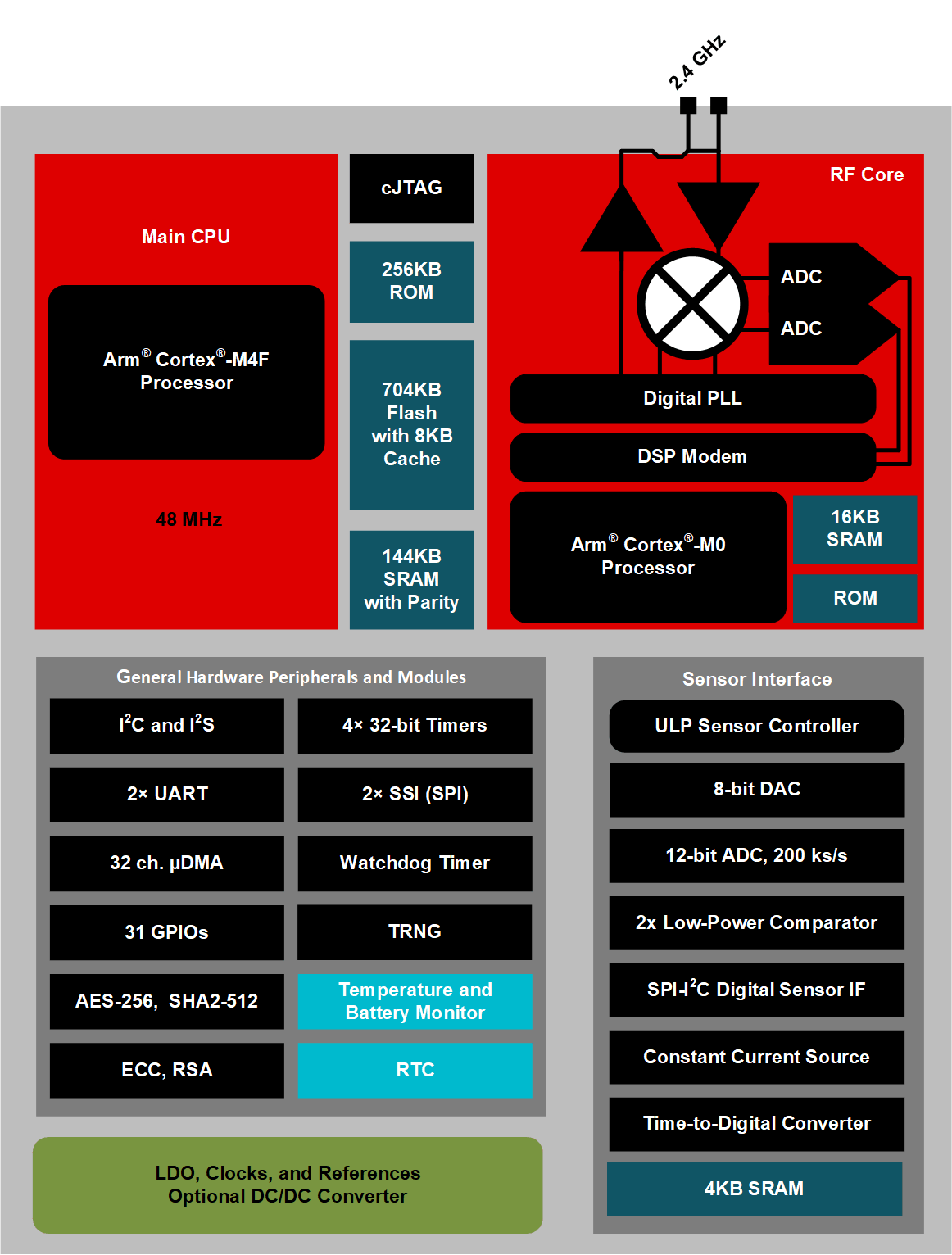

CC2652R7

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有 704kB 闪存的 SimpleLink™ Arm® Cortex®-M4F 多协议 2.4GHz 无线 MCU

Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 704 RAM (kByte): 152 Number of GPIOs: 31 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105 Protocols: Bluetooth 5.2 Low Energy, Thread, Zigbee 3.0 Type: Wireless MCU Rating: Catalog Flash memory (kByte): 704 RAM (kByte): 152 Number of GPIOs: 31 Sensitivity (best) (dBm): -104 Operating temperature range (°C): -40 to 105
