GPIOs: 11.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SD(1,12-bit ENoB(audio), 10 bit ENoB (DC), 12MHz clock)
CapSense: No
Flash: 512.0kByte
I2C: 1
SPI: 1
SRAM: 352.0kByte
UART: 2
PWM: 4
Main CPU Core: Arm® Cortex®- M3
Secondary CPU Core: None
CPU Core: 48MHz
Bluetooth LE: Yes
Bluetooth Classic: Yes
PDM: 0
Type of Antenna: PCB trace antenna
Extended Range: No
Bluetooth LE Data rate: 1.0MByte/s
Bluetooth EDR 2MBPS RX SENSITIVITY: –95.5 dBm
更多
Bluetooth LE RX Sensitivity: - 96.5 dBm
Bluetooth LE TX Power: 9 dBm
Bluetooth EDR 2Mbps TX POWER: 9 dBm
ROM: 848KB
V max: 3.6V
Operational Amplifier: No
Operating Temperature max: 105.0°C
Pads: 24.0
Size (X mm x Y mm x Z mm): 12 x 15.5 x 1.95 mm
Base Silicon: CYW20706
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-12-2015
Currently planned availability until at least: 31-12-2030
GPIOs: 24.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SD(1,12 bit ENoB (audio), 10-bit ENoB (DC), 12MHz Clock)
CapSense: No
Flash: 512.0kByte
I2C: 1
SPI: 1
SRAM: 384.0kByte
UART: 2
PWM: 6
Main CPU Core: Arm® Cortex®- M4
Secondary CPU Core: None
CPU Core: 96MHz
Bluetooth LE: Yes
Bluetooth Classic: No
PDM: 1
Type of Antenna: PCB trace antenna
Extended Range: No
Bluetooth LE Data rate: 2.0MByte/s
Bluetooth EDR 2MBPS RX SENSITIVITY: N/A
更多
Bluetooth LE RX Sensitivity: - 94.5 dBm
Bluetooth LE TX Power: 12 dBm
Bluetooth EDR 2Mbps TX POWER: N/A
ROM: 2MB
V max: 3.6V
Operational Amplifier: No
Operating Temperature max: 85.0°C
Pads: 43.0
Size (X mm x Y mm x Z mm): 13.31 x 21.89 x 1.95 mm
Base Silicon: CYW20835
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-12-2019
Currently planned availability until at least: 31-12-2034
GPIOs: 19.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 806 ksps)
CapSense: Yes
Flash: 256.0kByte
I2C: Configurable
Serial Communication Blocks: 5.0
SPI: Configurable
SRAM: 32.0kByte
UART: Configurable
PWM: 4
Main CPU Core: Arm® Cortex®- M0
Secondary CPU Core: None
CPU Core: 48MHz
Bluetooth LE: Yes
Bluetooth Classic: No
PDM: Configurable
Type of Antenna: PCB trace antenna
Extended Range: No
Bluetooth LE Data rate: 1.0MByte/s
更多
Bluetooth EDR 2MBPS RX SENSITIVITY: N/A
Bluetooth LE RX Sensitivity: - 93 dBm
Bluetooth LE TX Power: 7.5dBm
Bluetooth EDR 2Mbps TX POWER: N/A
V max: 3.6V
Operational Amplifier: Yes
Operating Temperature max: 85.0°C
Pads: 30.0
Size (X mm x Y mm x Z mm): 15 x 23 x 2.00 mm
Base Silicon: PSoC™ 4-BLE
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-03-2015
Currently planned availability until at least: 31-03-2030
GPIOs: 24.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SD(1,12 bit ENoB (audio), 10-bit ENoB (DC), 12MHz Clock)
CapSense: No
Flash: 512.0kByte
I2C: 1
SPI: 1
SRAM: 384.0kByte
UART: 2
PWM: 6
Main CPU Core: Arm® Cortex®- M4
Secondary CPU Core: None
CPU Core: 96MHz
Bluetooth LE: Yes
Bluetooth Classic: No
PDM: 1
Type of Antenna: External - RF pad
Extended Range: No
Bluetooth LE Data rate: 2.0MByte/s
Bluetooth EDR 2MBPS RX SENSITIVITY: N/A
更多
Bluetooth LE RX Sensitivity: - 94.5 dBm
Bluetooth LE TX Power: 12 dBm
Bluetooth EDR 2Mbps TX POWER: N/A
ROM: 2MB
V max: 3.6V
Operational Amplifier: No
Operating Temperature max: 85.0°C
Pads: 45.0
Size (X mm x Y mm x Z mm): 13.31 x 21.89 x 1.95 mm
Base Silicon: CYW20835
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-12-2019
Currently planned availability until at least: 31-12-2034
ADC (#, Max. Resolution @ Sample Rate): 3, 10-bit ADC@2M Samples/s

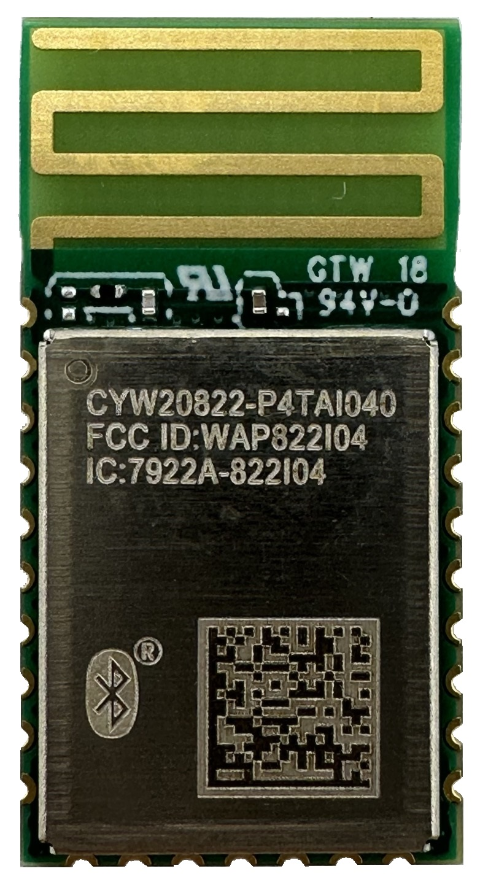

Base Silicon: CYW20822
Bluetooth LE: 5.0
Bluetooth LE Data rate: 2.0MByte/s
Bluetooth LE RX SENSITIVITY: -101 dBm@125 kbps
Bluetooth LE TX POWER: 4
CPU Core: 16 MHz 32-bit ARM® Cortex® M0
CapSense: N/A
Extended Range: Yes
Family: CYW20822
Flash: 1.0MByte
GPIOs: 12.0
I2C: 2
Main CPU Core: 16 MHz 32-bit ARM® Cortex® M0
Operating Temperature max: 85.0°C
Operational Amplifier: N/A
PDM: Yes
PWM: 8
Pads: 27.0
ROM: 256KB
更多
SPI: 2
SRAM: 128.0kByte
Secondary CPU Core: N/A
Size (X mm x Y mm x Z mm): 20.2 mm x 10.5 mm x 2.3 mm
Type of Antenna: Trace Antenna
UART: 2
V[BAT]: 3.3V
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-03-2024
Currently planned availability until at least: 31-03-2039
GPIOs: 19.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 806 ksps)
CapSense: Yes
Flash: 256.0kByte
I2C: Configurable
Serial Communication Blocks: 5.0
SPI: Configurable
SRAM: 32.0kByte
UART: Configurable
PWM: 4
Main CPU Core: Arm® Cortex®- M0
Secondary CPU Core: None
CPU Core: 48MHz
Bluetooth LE: Yes
Bluetooth Classic: No
PDM: Configurable
Type of Antenna: External -u.FL
Extended Range: No
Bluetooth LE Data rate: 1.0MByte/s
更多
Bluetooth EDR 2MBPS RX SENSITIVITY: N/A
Bluetooth LE RX Sensitivity: - 93 dBm
Bluetooth LE TX Power: 7.5dBm
Bluetooth EDR 2Mbps TX POWER: N/A
V max: 3.6V
Operational Amplifier: Yes
Operating Temperature max: 85.0°C
Pads: 30.0
Size (X mm x Y mm x Z mm): 15 x 23 x 2.00 mm
Base Silicon: PSoC™ 4-BLE
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-03-2015
Currently planned availability until at least: 31-03-2030
GPIOs: 19.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 806 ksps)
CapSense: Yes
Flash: 256.0kByte
I2C: Configurable
Serial Communication Blocks: 5.0
SPI: Configurable
SRAM: 32.0kByte
UART: Configurable
PWM: 4
Main CPU Core: Arm® Cortex®- M0
Secondary CPU Core: None
CPU Core: 48MHz
Bluetooth LE: Yes
Bluetooth Classic: No
PDM: Configurable
Type of Antenna: External - RF pad
Extended Range: No
Bluetooth LE Data rate: 1.0MByte/s
更多
Bluetooth EDR 2MBPS RX SENSITIVITY: N/A
Bluetooth LE RX Sensitivity: - 93 dBm
Bluetooth LE TX Power: 7.5dBm
Bluetooth EDR 2Mbps TX POWER: N/A
V max: 3.6V
Operational Amplifier: Yes
Operating Temperature max: 85.0°C
Pads: 30.0
Size (X mm x Y mm x Z mm): 15 x 23 x 2.00 mm
Base Silicon: PSoC™ 4-BLE
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-03-2015
Currently planned availability until at least: 31-03-2030
GPIOs: 36.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SAR (1, 12-bit @ 1 msps)
CapSense: Yes
Flash: 1.0MByte
I2C: Configurable
Serial Communication Blocks: 5.0
SPI: Configurable
SRAM: 288.0kByte
UART: Configurable
PWM: 32
Main CPU Core: Arm® Cortex®- M4
Secondary CPU Core: Arm® Cortex®- M0
Bluetooth LE: Yes
Bluetooth Classic: No
PDM: Configurable
Type of Antenna: PCB trace antenna
Extended Range: No
Bluetooth LE Data rate: 2.0MByte/s
Bluetooth EDR 2MBPS RX SENSITIVITY: N/A
更多
Bluetooth LE RX Sensitivity: -92dBm
Bluetooth LE TX Power: 4dBm
Bluetooth EDR 2Mbps TX POWER: N/A
ROM: 128KB
V max: 3.6V
Operational Amplifier: Yes
Operating Temperature max: 85.0°C
Pads: 43.0
Size (X mm x Y mm x Z mm): 14 x 18.5 x 2.00 mm
Base Silicon: PSoC™ 63-BLE
CPU Core: 150(M4)/100(M0) MHz
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-03-2024
Currently planned availability until at least: 31-03-2039
GPIOs: 20.0
Family: AIROC™ Bluetooth Modules
ADC (#, Max. Resolution @ Sample Rate): SD(1,12-bit ENoB (audio), 10-bit ENoB (DC), 12MHz clock)
CapSense: No
Flash: 256.0kByte
I2C: 1
SPI: 2
SRAM: 176.0kByte
UART: 2
PWM: 6
Main CPU Core: Arm® Cortex®- M4
Secondary CPU Core: None
CPU Core: 96MHz
Bluetooth LE: Yes
Bluetooth Classic: Yes
PDM: 1
Type of Antenna: External -u.FL
Extended Range: Yes
Bluetooth LE Data rate: 2.0MByte/s
Bluetooth EDR 2MBPS RX SENSITIVITY: -93.5dBm
更多
Bluetooth LE RX Sensitivity: - 95.0 dBm
Bluetooth LE TX Power: 15dBm
Bluetooth EDR 2Mbps TX POWER: 15dBm
ROM: 1MB
V max: 3.3V
Operational Amplifier: No
Operating Temperature max: 85.0°C
Pads: 35.0
Size (X mm x Y mm x Z mm): 12.5 × 19 × 1.85 mm
Base Silicon: CYW20819
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-03-2018
Currently planned availability until at least: 31-03-2033

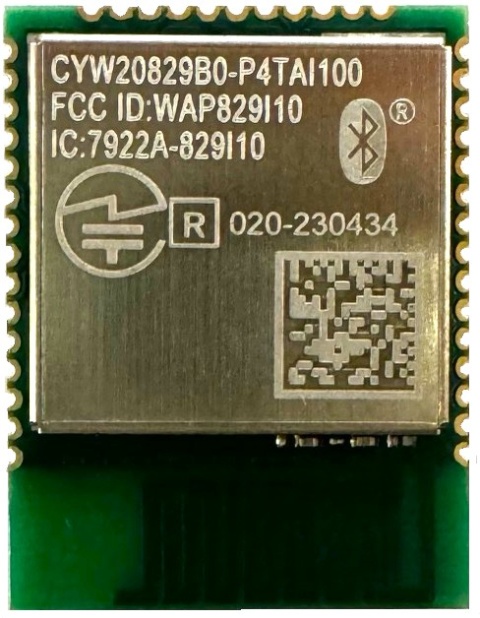

CYW20829B0-P4TAI100
数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: Bluetooth® LE 5.4 Module with Industry’s best range, ARM® Cortex® -M33 dedicated for applications and CAN FD
Base Silicon: CYW20829
Main CPU Core: Arm® Cortex®-M33
Secondary CPU Core: Arm® Cortex®-M33
CPU Core: 96MHz
Bluetooth LE: Yes
Bluetooth Classic: No
CapSense: No
V max: 3.6V
Flash: 1024.0kByte
SRAM: 256.0kByte
GPIOs: 26.0
UART: 2
ROM: 64
SPI: 2
PDM: 2
I2C: 2
ADC (#, Max. Resolution @ Sample Rate): SD (1, 12bit ENoB (audio), 11 bit ENoB (DC), 12MHz Clock)
Serial Communication Blocks: 3.0
Type of Antenna: PCB trace antenna
Extended Range: Yes
更多
Bluetooth LE Data rate: 2.0MByte/s
PWM: 7
Pads: 41.0
Bluetooth EDR 2MBPS RX SENSITIVITY: N/A
Bluetooth LE RX SENSITIVITY: –106.0 dBm
Size (X mm x Y mm x Z mm): 14.5 x 19 x 1.95 mm
Bluetooth LE TX POWER: 10 dBm
Bluetooth EDR 2Mbps TX POWER: N/A
Operating Temperature max: 85.0°C
Longevity - 15 years: Yes
Longevity - Extended: No
Launch Date: 31-03-2024
Currently planned availability until at least: 31-03-2039
Family: AIROC™ Bluetooth Modules
