TMP421

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用 WCSP 封装、具有 N 因数和串联电阻校正的远程和本地温度传感器

Local sensor accuracy (max): 2.5 Type: Remote Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: One-shot conversion Supply current (max) (µA): 38 Temp resolution (max) (bps): 12 Remote channels (#): 1 Addresses: 9 Rating: Catalog Local sensor accuracy (max): 2.5 Type: Remote Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: One-shot conversion Supply current (max) (µA): 38 更多

Temp resolution (max) (bps): 12 Remote channels (#): 1 Addresses: 9 Rating: Catalog

LM96194

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 具有 β 补偿、风扇控制、硬件和电源监控器、采用 QFN 封装的 ±2°C 四路远程和本地温度传感器

Local sensor accuracy (max): 2.5 Type: Fan Controller Operating temperature range (°C): -40 to 100 Supply voltage (min) (V): 3 Interface type: SMBus Supply voltage (max) (V): 3.6 Supply current (max) (µA): 1600 Temp resolution (max) (bps): 9 Remote channels (#): 4 Addresses: 3 Rating: Catalog Local sensor accuracy (max): 2.5 Type: Fan Controller Operating temperature range (°C): -40 to 100 Supply voltage (min) (V): 3 Interface type: SMBus Supply voltage (max) (V): 3.6 Supply current (max) (µA): 1600 Temp resolution (max) (bps): 9 Remote channels (#): 4 更多

Addresses: 3 Rating: Catalog

LM95214

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 具有 SMBus 接口的 ±2°C 四路远程和本地温度传感器

Local sensor accuracy (max): 2 Type: Remote Operating temperature range (°C): -40 to 140 Supply voltage (min) (V): 3 Interface type: I2C, SMBus Supply voltage (max) (V): 3.6 Features: ALERT, One-shot conversion Supply current (max) (µA): 800 Temp resolution (max) (bps): 11 Remote channels (#): 4 Addresses: 3 Rating: Catalog Local sensor accuracy (max): 2 Type: Remote Operating temperature range (°C): -40 to 140 Supply voltage (min) (V): 3 Interface type: I2C, SMBus Supply voltage (max) (V): 3.6 Features: ALERT, One-shot conversion Supply current (max) (µA): 800 更多

Temp resolution (max) (bps): 11 Remote channels (#): 4 Addresses: 3 Rating: Catalog

LM95233

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用 TruTherm 技术且具有 SMBus 接口的 ±2°C 双路远程和本地温度传感器

Local sensor accuracy (max): 2 Type: Remote Operating temperature range (°C): -40 to 140 Supply voltage (min) (V): 3 Interface type: I2C, SMBus Supply voltage (max) (V): 3.6 Features: ALERT, One-shot conversion Supply current (max) (µA): 500 Temp resolution (max) (bps): 11 Remote channels (#): 2 Addresses: 3 Rating: Catalog Local sensor accuracy (max): 2 Type: Remote Operating temperature range (°C): -40 to 140 Supply voltage (min) (V): 3 Interface type: I2C, SMBus Supply voltage (max) (V): 3.6 Features: ALERT, One-shot conversion Supply current (max) (µA): 500 更多

Temp resolution (max) (bps): 11 Remote channels (#): 2 Addresses: 3 Rating: Catalog

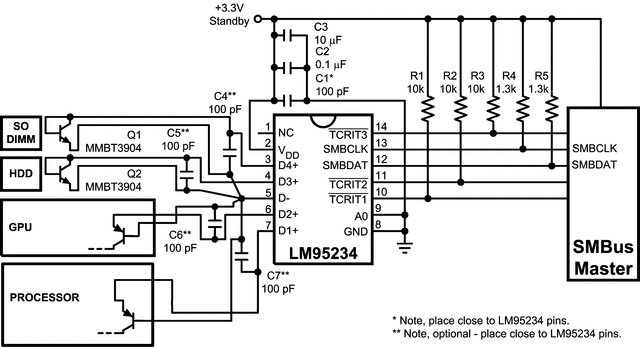

LM95234

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用 TruTherm 技术且具有 SMBus 接口的 ±2°C 四路远程和本地温度传感器

Local sensor accuracy (max): 2 Type: Remote Operating temperature range (°C): -40 to 140 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 800 Temp resolution (max) (bps): 11 Remote channels (#): 4 Addresses: 3 Rating: Catalog Local sensor accuracy (max): 2 Type: Remote Operating temperature range (°C): -40 to 140 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 800 更多

Temp resolution (max) (bps): 11 Remote channels (#): 4 Addresses: 3 Rating: Catalog

TMP411

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 具有 N 因数和串联电阻校正的远程和本地温度传感器

Local sensor accuracy (max): 2.5 Type: Remote Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT Supply current (max) (µA): 30 Temp resolution (max) (bps): 12 Remote channels (#): 1 Addresses: 4 Rating: Catalog Local sensor accuracy (max): 2.5 Type: Remote Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT Supply current (max) (µA): 30 更多

Temp resolution (max) (bps): 12 Remote channels (#): 1 Addresses: 4 Rating: Catalog

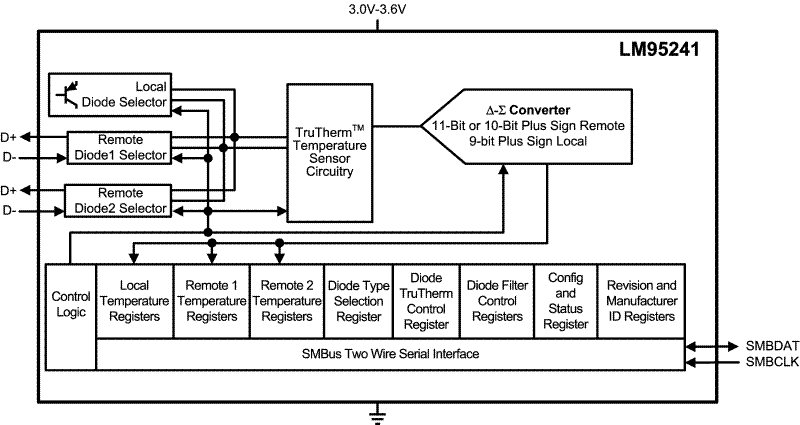

LM95241

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 带 β 补偿、采用 SMBus 和 I2C 接口的 ±1.25°C 双通道远程和本地温度传感器

Local sensor accuracy (max): 3 Type: Remote Operating temperature range (°C): 0 to 85 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 640 Temp resolution (max) (bps): 10 Remote channels (#): 2 Addresses: 3 Rating: Catalog Local sensor accuracy (max): 3 Type: Remote Operating temperature range (°C): 0 to 85 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 640 更多

Temp resolution (max) (bps): 10 Remote channels (#): 2 Addresses: 3 Rating: Catalog

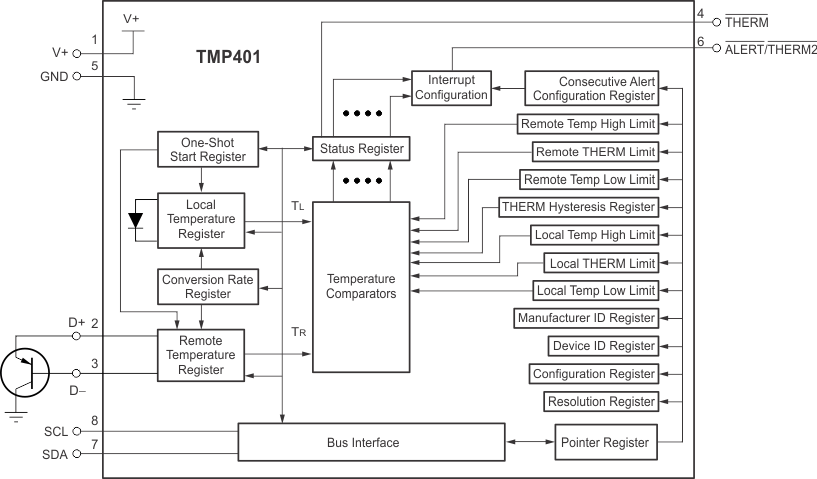

TMP401

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用 VSSOP-8 封装、具有 N 因数和串联电阻校正的远程和本地温度传感器

Local sensor accuracy (max): 3 Type: Remote Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 3 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT Supply current (max) (µA): 36 Temp resolution (max) (bps): 12 Remote channels (#): 1 Addresses: 1 Rating: Catalog Local sensor accuracy (max): 3 Type: Remote Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 3 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT Supply current (max) (µA): 36 更多

Temp resolution (max) (bps): 12 Remote channels (#): 1 Addresses: 1 Rating: Catalog

TMP275

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 采用业界通用 LM75 外形尺寸和引脚排列、具有 I2C/SMBus 接口的 ±0.5°C 温度传感器

Local sensor accuracy (max): 0.5 Type: Local Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 85 Temp resolution (max) (bps): 12 Remote channels (#): 0 Addresses: 8 Rating: Catalog Local sensor accuracy (max): 0.5 Type: Local Operating temperature range (°C): -40 to 125 Supply voltage (min) (V): 2.7 Interface type: I2C, SMBus Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 85 更多

Temp resolution (max) (bps): 12 Remote channels (#): 0 Addresses: 8 Rating: Catalog

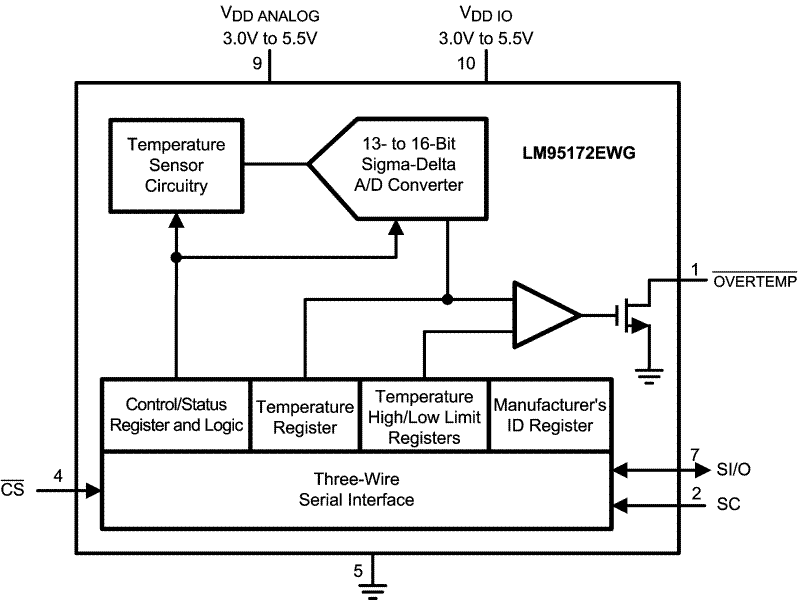

LM95172-Q1

数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

描述: 具有 SPI 接口且支持 200°C 温度的汽车级 ±1°C 温度传感器

Local sensor accuracy (max): 1 Type: Local Operating temperature range (°C): -40 to 200 Supply voltage (min) (V): 3 Interface type: SPI Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 456 Temp resolution (max) (bps): 16 Remote channels (#): 0 Rating: Catalog Local sensor accuracy (max): 1 Type: Local Operating temperature range (°C): -40 to 200 Supply voltage (min) (V): 3 Interface type: SPI Supply voltage (max) (V): 5.5 Features: ALERT, One-shot conversion Supply current (max) (µA): 456 Temp resolution (max) (bps): 16 更多

Remote channels (#): 0 Rating: Catalog
