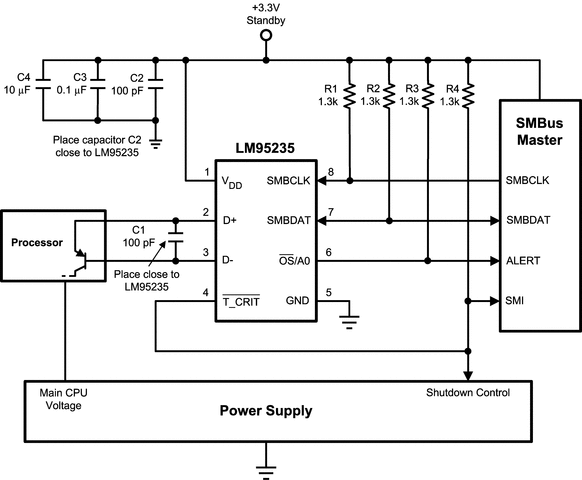

LM95235
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件
描述: 具有 SMBus 接口、采用 β 补偿技术、适用于 65/90nm 二极管的 ±0.75°C 远程和本地温度传感器
Local sensor accuracy (max): 2
Type: Remote
Operating temperature range (°C): -40 to 90
Supply voltage (min) (V): 3
Interface type: I2C, SMBus
Supply voltage (max) (V): 5.5
Features: ALERT, One-shot conversion
Supply current (max) (µA): 650
Temp resolution (max) (bps): 11
Remote channels (#): 1
Addresses: 3
Rating: Catalog
Local sensor accuracy (max): 2
Type: Remote
Operating temperature range (°C): -40 to 90
Supply voltage (min) (V): 3
Interface type: I2C, SMBus
Supply voltage (max) (V): 5.5
Features: ALERT, One-shot conversion
Supply current (max) (µA): 650
更多
Temp resolution (max) (bps): 11
Remote channels (#): 1
Addresses: 3
Rating: Catalog
TMP105
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件

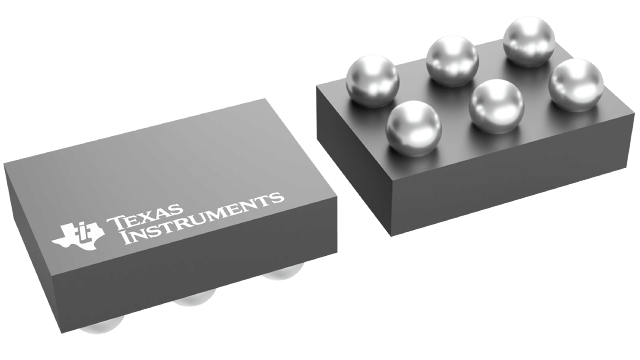

描述: 采用 WCSP 封装、具有 I2C/SMBus 接口和警报功能的 ±2°C、2.6V 至 3.3V 数字温度传感器
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.6
Interface type: I2C, SMBus
Supply voltage (max) (V): 3.3
Features: ALERT, One-shot conversion
Supply current (max) (µA): 85
Temp resolution (max) (bps): 12
Remote channels (#): 0
Addresses: 2
Rating: Catalog
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.6
Interface type: I2C, SMBus
Supply voltage (max) (V): 3.3
Features: ALERT, One-shot conversion
Supply current (max) (µA): 85
更多
Temp resolution (max) (bps): 12
Remote channels (#): 0
Addresses: 2
Rating: Catalog
TMP106
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件
描述: 采用 WCSP 封装、具有 I2C/SMBus 接口和警报功能的 ±2°C、2.7V 至 5.5V 数字温度传感器
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: I2C, SMBus
Supply voltage (max) (V): 5.5
Features: ALERT, One-shot conversion
Supply current (max) (µA): 85
Temp resolution (max) (bps): 12
Remote channels (#): 0
Addresses: 2
Rating: Catalog
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: I2C, SMBus
Supply voltage (max) (V): 5.5
Features: ALERT, One-shot conversion
Supply current (max) (µA): 85
更多
Temp resolution (max) (bps): 12
Remote channels (#): 0
Addresses: 2
Rating: Catalog
TMP121-EP
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件
描述: 具有 SPI 接口、采用 SOT-23 封装的增强型产品 1.5°C、2.7V 至 5.5V 数字温度传感器
Local sensor accuracy (max): 1.5
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: SPI
Supply voltage (max) (V): 5.5
Supply current (max) (µA): 50
Temp resolution (max) (bps): 12
Remote channels (#): 0
Rating: HiRel Enhanced Product
Local sensor accuracy (max): 1.5
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: SPI
Supply voltage (max) (V): 5.5
Supply current (max) (µA): 50
Temp resolution (max) (bps): 12
Remote channels (#): 0
Rating: HiRel Enhanced Product
Local sensor accuracy (max): 3
Type: Remote
Operating temperature range (°C): 0 to 85
Supply voltage (min) (V): 3
Interface type: I2C, SMBus
Supply voltage (max) (V): 3.6
Features: ALERT, One-shot conversion
Supply current (max) (µA): 402
Temp resolution (max) (bps): 10
Remote channels (#): 2
Addresses: 3
Rating: Catalog
Local sensor accuracy (max): 3
Type: Remote
Operating temperature range (°C): 0 to 85
Supply voltage (min) (V): 3
Interface type: I2C, SMBus
Supply voltage (max) (V): 3.6
Features: ALERT, One-shot conversion
Supply current (max) (µA): 402
更多
Temp resolution (max) (bps): 10
Remote channels (#): 2
Addresses: 3
Rating: Catalog
TMP100-EP
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件
描述: 采用 SOT-23 封装、具有 I2C/SMBus 接口的增强型产品温度传感器
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -55 to 125
Supply voltage (min) (V): 2.7
Interface type: I2C, SMBus
Supply voltage (max) (V): 5.5
Features: One-shot conversion
Supply current (max) (µA): 75
Temp resolution (max) (bps): 12
Remote channels (#): 0
Addresses: 8
Rating: HiRel Enhanced Product
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -55 to 125
Supply voltage (min) (V): 2.7
Interface type: I2C, SMBus
Supply voltage (max) (V): 5.5
Features: One-shot conversion
Supply current (max) (µA): 75
更多
Temp resolution (max) (bps): 12
Remote channels (#): 0
Addresses: 8
Rating: HiRel Enhanced Product

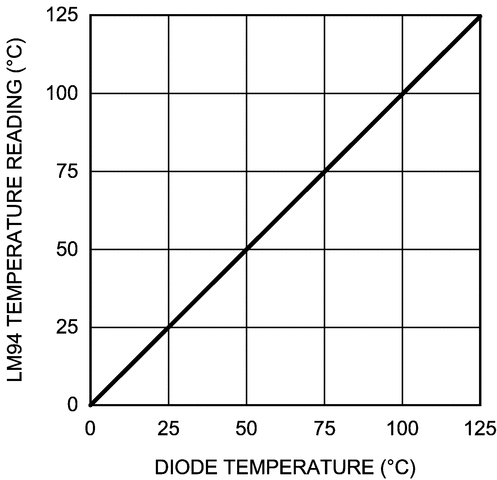

LM94
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件
描述: 具有 β 补偿、风扇控制、硬件和电源监控器、采用 TSSOP 封装的 ±2°C 四路远程和本地温度传感器
Local sensor accuracy (max): 3
Type: Fan Controller
Operating temperature range (°C): 0 to 100
Supply voltage (min) (V): 3
Interface type: SMBus
Supply voltage (max) (V): 3.6
Features: PWM output, Tachometer
Supply current (max) (µA): 1600
Temp resolution (max) (bps): 8
Remote channels (#): 4
Addresses: 3
Rating: Catalog
Local sensor accuracy (max): 3
Type: Fan Controller
Operating temperature range (°C): 0 to 100
Supply voltage (min) (V): 3
Interface type: SMBus
Supply voltage (max) (V): 3.6
Features: PWM output, Tachometer
Supply current (max) (µA): 1600
更多
Temp resolution (max) (bps): 8
Remote channels (#): 4
Addresses: 3
Rating: Catalog
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: 1-wire Sensor Path
Supply voltage (max) (V): 5.5
Supply current (max) (µA): 120
Temp resolution (max) (bps): 10
Remote channels (#): 0
Addresses: 4
Rating: Catalog
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: 1-wire Sensor Path
Supply voltage (max) (V): 5.5
Supply current (max) (µA): 120
Temp resolution (max) (bps): 10
Remote channels (#): 0
更多
Addresses: 4
Rating: Catalog
TMP125
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件
描述: 具有 SPI 接口且工作温度范围为 -40°C 至 125°C 的 ±2°C 2.7V 至 5.5V 数字温度传感器
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: SPI
Supply voltage (max) (V): 5.5
Supply current (max) (µA): 50
Temp resolution (max) (bps): 12
Remote channels (#): 0
Rating: Catalog
Local sensor accuracy (max): 2
Type: Local
Operating temperature range (°C): -40 to 125
Supply voltage (min) (V): 2.7
Interface type: SPI
Supply voltage (max) (V): 5.5
Supply current (max) (µA): 50
Temp resolution (max) (bps): 12
Remote channels (#): 0
Rating: Catalog

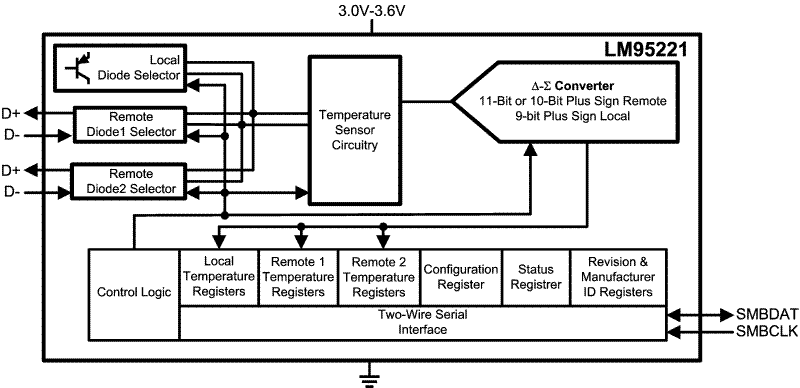

LM95221
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 热学量传感器件 / 温度传感器件
描述: 带 β 补偿、采用 SMBus 和 I2C 接口的 ±3°C 双通道远程和本地温度传感器
Local sensor accuracy (max): 3
Type: Remote
Operating temperature range (°C): 0 to 85
Supply voltage (min) (V): 3
Interface type: I2C, SMBus
Supply voltage (max) (V): 3.6
Features: ALERT, One-shot conversion
Supply current (max) (µA): 2600
Temp resolution (max) (bps): 10
Remote channels (#): 2
Addresses: 1
Rating: Catalog
Local sensor accuracy (max): 3
Type: Remote
Operating temperature range (°C): 0 to 85
Supply voltage (min) (V): 3
Interface type: I2C, SMBus
Supply voltage (max) (V): 3.6
Features: ALERT, One-shot conversion
Supply current (max) (µA): 2600
更多
Temp resolution (max) (bps): 10
Remote channels (#): 2
Addresses: 1
Rating: Catalog
