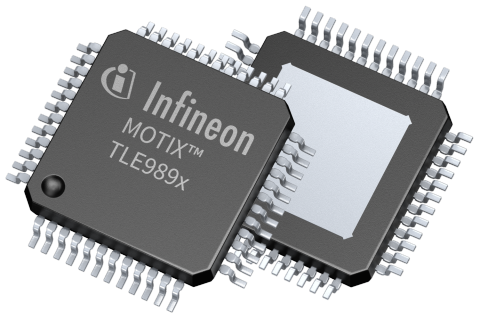

TLE9891-2QTW61
制造商:
描述: The MOTIX™ TLE9891-2QTW61 is a 3-phase bridge driver with CAN 2.0
物料参数
| Clock Frequency max: | 60.0MHz |
| GPIO: | 14 |
| High Voltage Monitor Input: | 1 |
| Instruction Set Architecture: | Arm® Cortex®-M3 |
| Interfaces: | CAN2.0 |
| Low Side Switch: | 0 |
| MOSFET Drivers(Low Side): | 3 |
| MOSFET Drivers(High Side): | 3 |
| Operating Voltage max: | 28.0V |
| Operational Amplifier: | Yes |
| PN MOS DRIVER: | No |
| Product Category: | Microcontroller (MCU) |
| RAM: | 16.0kByte |
| Solid Flash: | 128.0kByte |
| T[j] max: | 175.0°C |
| Temperature: | - 40°C - 175°C |
| Frequency: | 60.0MHz |
| Technology: | MOTIX™ MCU (SoC) |
| Currently planned availability until at least: | 2038 |
| Family: | MOTIX™ 32-bit motor control SoC |
