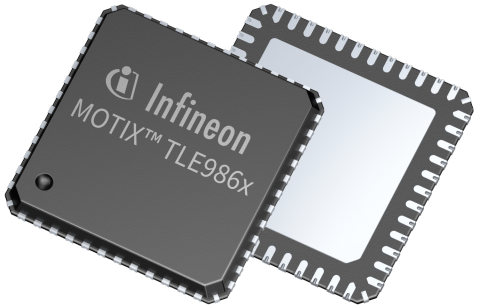

TLE9867QXW20
制造商:
描述: The MOTIX™ TLE9867QXW20 is qualified up to 175°C and can be used for actuator drives
物料参数
| Solid Flash: | 64.0kByte |
| RAM: | 6.0kByte |
| Frequency: | 24.0MHz |
| Low Side Switch: | 0 |
| High Side Switch: | 0 |
| High Voltage Monitor Input: | 1 |
| GPIO: | 10 |
| Interfaces: | PWM + LIN |
| Operational Amplifier: | Yes |
| MOSFET Drivers(Low Side): | 2 |
| PN MOS DRIVER: | No |
| MOSFET Drivers(High Side): | 2 |
| T[j] max: | 175.0°C |
| Language: | SPICE |
| Product Category: | Microcontroller (MCU) |
| Temperature: | - 40°C - 175°C |
| Operating Voltage max: | 28.0V |
| Clock Frequency max: | 24.0MHz |
| Instruction Set Architecture: | Arm® Cortex®-M3 |
| Currently planned availability until at least: | 2038 |
| Technology: | MOTIX™ MCU (SoC) |
| Family: | MOTIX™ 32-bit motor control SoC |
