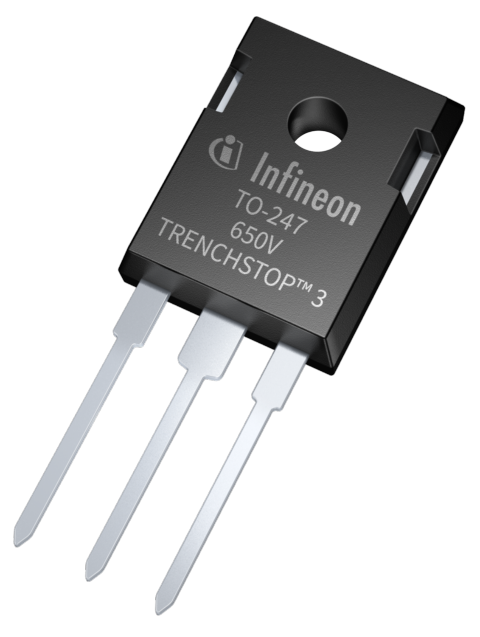

IKW40N60H3
制造商:
描述: 600 V IGBT with anti-parallel diode in TO-247 package
物料参数
| I[rrm]: | 13.6A |
| E[on]: | 1.1mJ |
| I[C](@ 100°) max: | 40.0A |
| I[C](@ 25°) max: | 80.0A |
| I[Cpuls] max: | 160.0A |
| I[F] max: | 40.0A |
| I[Fpuls] max: | 160.0A |
| V[F]: | 1.65V |
| Q[Gate]: | 223.0nC |
| Q[rr]: | 810.0nC |
| V[CE(sat)]: | 1.95V |
| V[CE] max: | 600.0V |
| t[d(off)]: | 197.0ns |
| t[d(on)]: | 19.0ns |
| t[f]: | 21.0ns |
| t[r]: | 33.0ns |
| Switching Frequency max: | 100.0kHz |
| Package: | TO-247-3 |
| Switching Frequency: | HighSpeed3 20-100 kHz |
| E[off](Hard Switching): | 0.58mJ |
| Technology: | IGBT HighSpeed 3 |
| P[tot] max: | 306.0W |
| R[G]: | 7.9Ω |
