IGW100N60H3
制造商:
描述: 600 V, 100 A IGBT Discrete in TO-247 package
物料参数
| E[on]: | 3.7mJ |
| I[C](@ 100°) max: | 120.0A |
| I[C](@ 25°) max: | 140.0A |
| I[Cpuls] max: | 300.0A |
| I[F] max: | 100.0A |
| I[Fpuls] max: | 300.0A |
| Q[Gate]: | 625.0nC |
| V[CE(sat)]: | 1.85V |
| V[CE] max: | 600.0V |
| t[d(off)]: | 265.0ns |
| t[d(on)]: | 30.0ns |
| t[f]: | 30.0ns |
| t[r]: | 47.0ns |
| Switching Frequency max: | 100.0kHz |
| P[tot] max: | 714.0W |

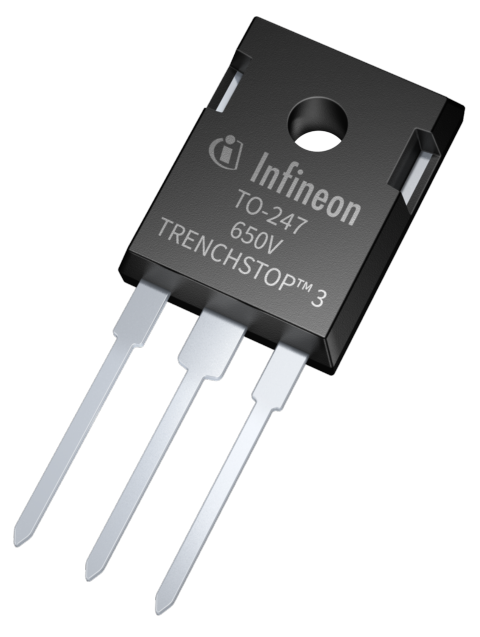

| Package: | TO-247 |
| Switching Frequency: | HighSpeed3 20-100 kHz |
| E[off](Hard Switching): | 1.9mJ |
| Technology: | IGBT HighSpeed 3 |
| R[G]: | 3.5Ω |
