IGW60N60H3
制造商:

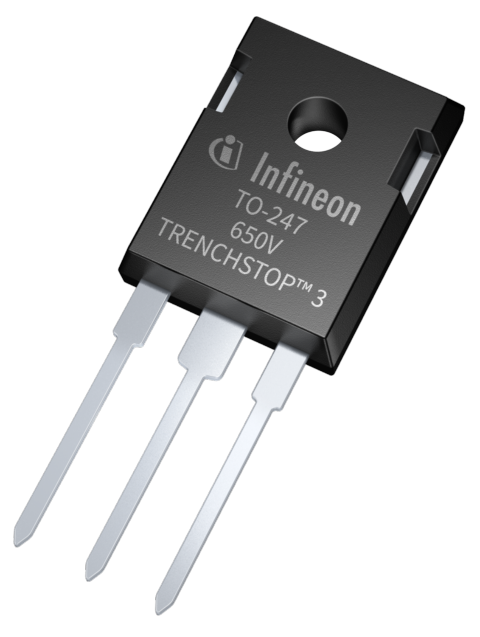

描述: 600 V IGBT Discrete in TO-247 package
物料参数
| E[on]: | 2.1mJ |
| I[C](@ 100°) max: | 60.0A |
| I[C](@ 25°) max: | 80.0A |
| I[Cpuls] max: | 180.0A |
| Q[Gate]: | 375.0nC |
| V[CE(sat)]: | 1.85V |
| V[CE] max: | 600.0V |
| t[d(off)]: | 252.0ns |
| t[d(on)]: | 27.0ns |
| t[f]: | 27.0ns |
| t[r]: | 44.0ns |
| Switching Frequency max: | 100.0kHz |
| P[tot] max: | 416.0W |
| Package: | TO-247 |
| Switching Frequency: | HighSpeed3 20-100 kHz |
| E[off](Hard Switching): | 1.13mJ |
| Technology: | IGBT HighSpeed 3 |
| R[G]: | 6.0Ω |
