IAUT165N08S5N029
制造商:
描述: 80V, N-Ch, 2.9 mΩ max, Automotive MOSFET, TOLL, OptiMOS™-5
物料参数
| I[Dpuls] max: | 660.0A |
| R[thJC] max: | 0.9K/W |
| P[tot] max: | 167.0mW |
| Qualification: | Automotive |

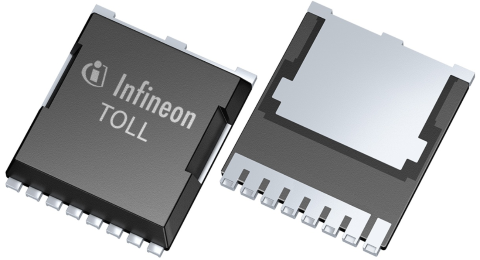

| Package: | TOLL (PG-HSOF-8) |
| V[DS] max: | 80.0V |
| Polarity: | N |
| I[D ](@25°C) max: | 165.0A |
| Technology: | OptiMOS™-5 |
| R[DS (on)](@10V) max: | 2.9mΩ |
| Operating Temperature max: | 175.0°C |
| Q[G](typ @10V): | 70.0nC |
| Q[G](typ @10V) max: | 90.0nC |
| V[GS(th)]: | 3.0V |
| Currently planned availability until at least: | 2038 |
| Launch year: | 2016 |
| Budgetary Price €/1k: | 1.11 |
