IAUT200N08S5N023
制造商:
描述: 80V, N-Ch, 2.3 mΩ max, Automotive MOSFET, TOLL, OptiMOS™-5
物料参数
| I[Dpuls] max: | 800.0A |
| R[thJC] max: | 0.7K/W |
| P[tot] max: | 200.0mW |
| Qualification: | Automotive |

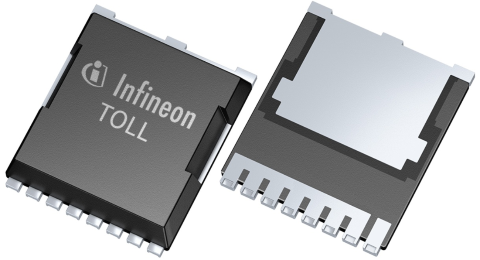

| Package: | TOLL (PG-HSOF-8) |
| V[DS] max: | 80.0V |
| R[DS (on)](@10V) max: | 2.3mΩ |
| Polarity: | N |
| I[D ](@25°C) max: | 200.0A |
| Technology: | OptiMOS™-5 |
| Operating Temperature max: | 175.0°C |
| Q[G](typ @10V): | 85.0nC |
| Q[G](typ @10V) max: | 110.0nC |
| V[GS(th)]: | 3.0V |
| Currently planned availability until at least: | 2038 |
| Launch year: | 2018 |
| Budgetary Price €/1k: | 1.23 |
