IKWH50N67PR7
制造商:

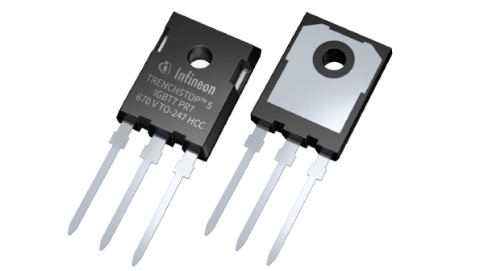

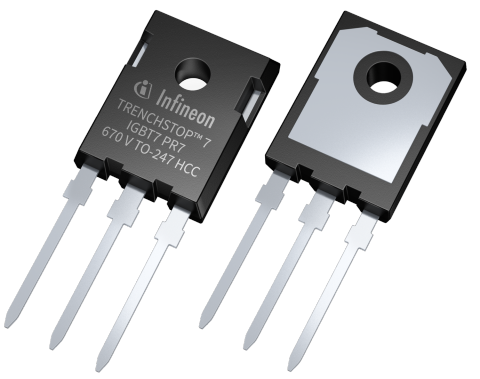

描述: 670 V, 50 A TRENCHSTOP™ IGBT7 PR7 with anti-parallel diode in TO-247-3pin high creepage and clearance package
物料参数
| E[off](Hard Switching): | 0.56mJ |
| E[on]: | 0.98mJ |
| I[C](@ 100°) max: | 65.0A |
| I[C](@ 25°) max: | 105.0A |
| I[Cpuls] max: | 150.0A |
| I[Fpuls] max: | 5.0A |
| P[tot] max: | 246.0W |
| Package: | TO-247-3-HCC |
| Q[Gate]: | 127.0nC |
| R[G]: | 9.8Ω |
| Switching Frequency max: | 65.0kHz |
| Technology: | TRENCHSTOP™ IGBT7 |
| V[CE(sat)]: | 1.4V |
| V[CE] max: | 670.0V |
| V[GE(th)]: | 3.95V |
| t[d(off)]: | 182.0ns |
| t[d(on)]: | 18.0ns |
| t[f]: | 32.0ns |
| t[r]: | 19.0ns |
