INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

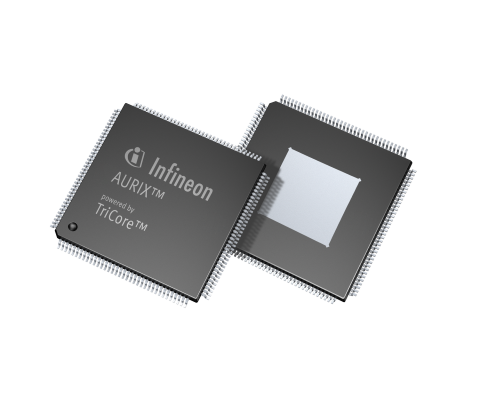

SAK-TC212L-8F133NAC
分类:数据:
简介: A powerful AURIX™ microcontroller with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 14
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
Hardware Accelerator: no
# of cores / lockstep cores: 1/1
更多
eMMC: no
SPI: 4.0
LIN: 2.0
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 7.25
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC212S-8F133FAC
分类:数据:
简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package.
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 14
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
Floating Point Unit: yes
On-chip Voltage Regulator: yes
Oscillator Watchdog: yes
Real Time Clock: yes
Watchdog Timer: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Hardware Accelerator: no
# of cores / lockstep cores: 1/0
更多
LIN: 2.0
SPI: 4.0
eMMC: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 5.6
ASIL/SIL support: ASIL-B/SIL-2
SAK-TC212S-8F133NAC
分类:数据:
简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 14
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
On-chip Clock Generation: yes
Floating Point Unit: yes
DSP Functionality: yes
I/O Operation Voltages: 3.3V
# of cores / lockstep cores: 1/0
Hardware Accelerator: no
更多
eMMC: no
SPI: 4.0
LIN: 2.0
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 6.78
ASIL/SIL support: ASIL-B/SIL-2
SAK-TC212S-8F133SCAC
分类:数据:
简介: Enabling safety applications with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package
DMA Channels: 16
DSP Functionality: yes
External Bus Interface: no
Fast Flash Programming: no
I/O Operation Voltages min: 3.3V
CAN Nodes: 3
SRAM (incl. Cache): 56.0kByte
Real Time Clock: yes
Program Memory: 0.5MByte
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
On-chip Clock Generation: yes
SPI: 4.0
LIN: 2.0
Floating Point Unit: yes
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
# of cores / lockstep cores: 1/0
更多
A/D Input Lines: 14
Hardware Accelerator: no
eMMC IO speed: no
eMMC: no
Watchdog Timer: yes
A/D Input Lines(incl. FADC): 14
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC213L-8F133FAC
分类:数据:
简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-100 package
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 24
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
# of cores / lockstep cores: 1/1
Hardware Accelerator: no
更多
eMMC: no
SPI: 4.0
LIN: 2.0
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 6.48
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC213L-8F133NAC
分类:数据:
简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-100 package
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 24
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
# of cores / lockstep cores: 1/1
Hardware Accelerator: no
更多
LIN: 2.0
SPI: 4.0
eMMC: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 7.62
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC214L-8F133NAC
分类:数据:
简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-144 package
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 24
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
# of cores / lockstep cores: 1/1
Hardware Accelerator: no
更多
LIN: 2.0
SPI: 4.0
eMMC: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 8.12
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC234LP-32F200FAC
分类:数据:
简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 2MB of Flash and a TQFP-144 package
SRAM (incl. Cache): 192.0kByte
CAN Nodes: 6
A/D Input Lines: 24
A/D Input Lines(incl. FADC): 24
Program Memory: 2.0MByte
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
On-chip Clock Generation: yes
Floating Point Unit: yes
DSP Functionality: yes
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
I/O Operation Voltages: 3.3V
DMA Channels: 16
Touch/LED Matrix Control: no
Hardware Accelerator: no
# of cores / lockstep cores: 1/1
LIN: 2.0
更多
SPI: 4.0
eMMC: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 9.84
ASIL/SIL support: ASIL-D/SIL-3
SAL-TC223L-16F133NAC
分类:数据:
简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 1MB of Flash and a TQFP-100 package
Program Memory: 1.0MByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 24
SRAM (incl. Cache): 96.0kByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
Touch/LED Matrix Control: no
DSP Functionality: yes
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
On-chip Clock Generation: yes
Floating Point Unit: yes
I/O Operation Voltages: 3.3V
# of cores / lockstep cores: 1/1
Hardware Accelerator: no
更多
eMMC: no
LIN: 2.0
SPI: 4.0
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 8.73
ASIL/SIL support: ASIL-D/SIL-3
DMA Channels: 16
CAN Nodes: 6
DSP Functionality: yes
On-chip Clock Generation: yes
On-chip Voltage Regulator: yes
Oscillator Watchdog: yes
Real Time Clock: yes
Program Memory: 2.0MByte
SRAM (incl. Cache): 248.0kByte
eMMC: no
SPI: 4.0
LIN: 5.0
Watchdog Timer: yes
# of cores / lockstep cores: 1/1
Floating Point Unit: yes
Type of Memory: Flash
Temperature: -40°C - +125°C

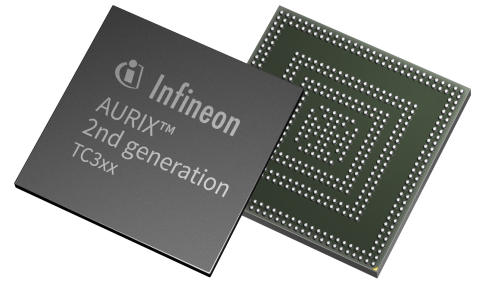

Family: AURIX™ 2G
Classification: ISO 26262-compliant
External Bus Interface: no
更多
Hardware Accelerator: no
Number of ADC Modules: 4.0
ASIL/SIL support: ASIL-D/SIL-3
