INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。
I[R]: 1.0nA
V[ESD] max: 18.0kV
R[dyn](reverse): 0.6Ω
C[L ]: 4.0pF
R[dyn](forward): 0.5Ω
I[PP]: 1A
I[EFT ]: 40A
Protected Lines: 1
V[WM]: 14.0V
C[L ]: 0.2pF
I[EFT ]: 50A
I[R] max: 50.0nA
I[PP]: 3.5A
Protected Lines: 1
R[dyn](reverse): 0.58Ω
R[dyn](forward): 0.58Ω
V[ESD] max: 18.0kV
V[cl typ. reverse](TLP 16A): 12.5
V[cl typ. reverse](@16A) max: 12.5V
V[WM]: 18.0V
C[L ] max: 0.35pF
C[L ]: 38.0pF
V[ESD] max: 25.0kV
R[dyn](reverse): 0.27Ω
R[dyn](forward): 0.27Ω
I[R] max: 100.0µA
I[EFT ]: 50A
I[PP]: 5.5A
Protected Lines: 1
V[WM]: 5.3V
V[cl typ. reverse](@16A): 10.0V
V[cl typ. reverse](TLP 16A): 10 V

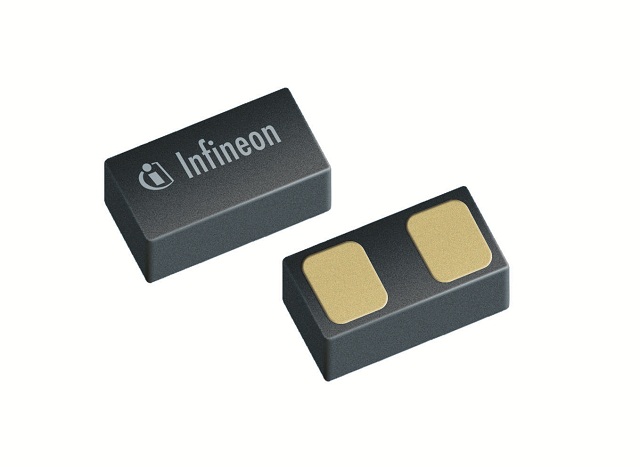

ESD150-B1-W0201
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管数据:
简介: Super Low Clamping Voltage, Low Capacitance, Bi Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor)
C[L ] max: 0.35pF
I[EFT ]: 50A
Protected Lines: 1
R[dyn](reverse): 0.16Ω
R[dyn](forward): 0.16Ω
V[ESD] max: 12.0kV
V[cl typ. reverse](TLP 16A): 5.4
V[WM] max: 3.3V
C[L ]: 0.24pF
V[WM] min: -3.3V
I[R] max: 10.0nA
I[R]: 1.0nA
I[PP]: 3 A

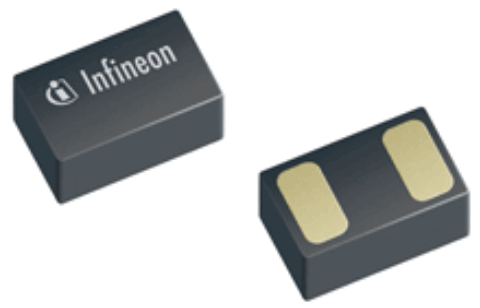

ESD151-B1-W0201
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管数据:
简介: Bi-directional ESD protection device, 3.6 V, 0.08 pF, 0201
I[R] max: 20.0nA
V[cl typ. reverse](@16A): 9.5V
R[dyn](forward): 0.39Ω
R[dyn](reverse): 0.39Ω
V[ESD] max: 9.0kV
I[EFT ]: 20A
I[PP]: 1A
Protected Lines: 1
C[L ]: 0.18pF
V[WM] max: 3.6V
I[R] max: 50.0µA
V[ESD] max: 20.0kV
R[dyn](reverse): 0.19Ω
C[L ]: 0.4pF
R[dyn](forward): 0.23Ω
V[cl typ. reverse](@16A): 8.0V
I[PP]: 3A
I[EFT ]: 50A
V[cl typ. reverse](TLP 30A): 11
Protected Lines: 1
V[cl typ. reverse](TLP 16A): 8
V[WM]: 3.3V
I[R]: 1.0nA
ESD121-B1-W0201
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管数据:
简介: Low Clamping Voltage, Low Capacitance, Bi Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor)
C[L ]: 0.25pF
I[EFT ]: 30A
Protected Lines: 1
R[dyn](reverse): 0.91Ω
R[dyn](forward): 0.91Ω
V[ESD] max: 18.0kV
V[cl typ. reverse](TLP 16A): 24V
V[WM] max: 7.0V
C[L ] max: 0.5pF
I[R] max: 100.0nA
I[R]: 1.0nA
I[PP]: 2 A
I[R]: 0.1nA
V[ESD] max: 10.0kV
R[dyn](reverse): 1.8Ω
C[L ]: 0.13pF
R[dyn](forward): 1.8Ω
V[cl typ. reverse](@16A): 18.0V
Protected Lines: 1
V[cl typ. reverse](TLP 16A): 48
V[WM] max: 15.0V
I[R] max: 50.0nA
V[ESD] max: 10.0kV
R[dyn](reverse): 1.8Ω
C[L ]: 0.13pF
R[dyn](forward): 1.8Ω
V[cl typ. reverse](@16A): 48.0V
Protected Lines: 1
V[cl typ. reverse](TLP 16A): 48
V[WM] max: 15.0V
V[WM] min: -15.0V
I[R]: 0.1nA
Protected Lines: 1
C[L ]: 0.13pF
V[WM] max: 5.5V
V[cl typ. reverse](at 16A TLP): 25
V[cl typ. reverse](at 8A TLP): 16
I[R]: 0.1nA
R[dyn](reverse): 1.1Ω
V[ESD](IEC61000-4-2 contact) max: 14.0kV
I[PP]: 1.5A
I[EFT ]: 30A
C[L ] max: 0.25pF
V[WM] min: -5.5V
R[dyn](forward): 1.1Ω
