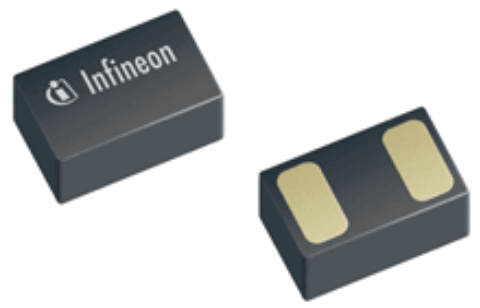

ESD120-B1-W0201
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管数据:
简介: Low Clamping Voltage, Low Capacitance, Bi Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor)
C[L ]: 0.28pF
I[EFT ]: 30A
Protected Lines: 1
R[dyn](reverse): 0.94Ω
R[dyn](forward): 0.94Ω
V[ESD] max: 15.0kV
V[cl typ. reverse](TLP 16A): 19V
V[WM] max: 2.1V
C[L ] max: 0.4pF
V[WM] min: -2.1V
I[R]: 1.0nA
I[R] max: 200.0nA
I[PP]: 1.5 A
C[L ]: 3.0pF
V[ESD] max: 18.0kV
R[dyn](reverse): 1.0Ω
R[dyn](forward): 1.0Ω
I[R]: 1.0nA
I[EFT ]: 40A
Protected Lines: 1
V[WM] max: 24.0V
V[cl typ. reverse](@16A): 51.0V
V[cl typ. reverse](TLP 16A): 51 V
I[PP]: 1.5 A
C[L ]: 0.2pF
I[EFT ]: 50A
I[R] max: 50.0nA
I[PP]: 3.5A
Protected Lines: 1
R[dyn](forward): 0.58Ω
R[dyn](reverse): 0.58Ω
V[ESD] max: 18.0kV
V[cl typ. reverse](TLP 16A): 12.5
V[cl typ. reverse](@16A): 12.0V
V[WM] max: 18.0V
C[L ] max: 0.35pF
V[WM] min: -18.0V
I[R]: 1.0nA
I[R] max: 30.0nA
I[PP]: 2A
Protected Lines: 1
R[dyn](forward): 0.8Ω
R[dyn](reverse): 0.8Ω
V[ESD] max: 15.0kV
V[cl typ. reverse](TLP 16A): 28V
V[cl typ. reverse](TLP 30A): 34V
C[L ]: 0.3pF
V[cl typ. reverse](@16A): 32.0V
V[WM] max: 18.0V
C[L ] max: 0.5pF
V[WM] min: -18.0V
I[EFT ]: 40 A
C[L ]: 0.3pF
I[EFT ]: 50A
I[R] max: 20.0nA
I[PP]: 7.5A
Protected Lines: 1
R[dyn](reverse): 0.28Ω
R[dyn](forward): 0.28Ω
V[ESD] max: 28.0kV
V[cl typ. reverse](TLP 16A): 7.7
V[WM] max: 2.1V
C[L ] max: 0.35pF
V[WM] min: -2.1V
I[R]: 0.1nA
C[L ]: 0.3pF
V[ESD] max: 12.0kV
R[dyn](forward): 0.6Ω
R[dyn](reverse): 0.6Ω
I[R]: 1.0nA
V[cl typ. reverse](TLP 16A): 14
V[cl typ. reverse](TLP 30A): 20
I[EFT ]: 50A
I[PP]: 3A
Protected Lines: 1
V[WM] max: 18.5V

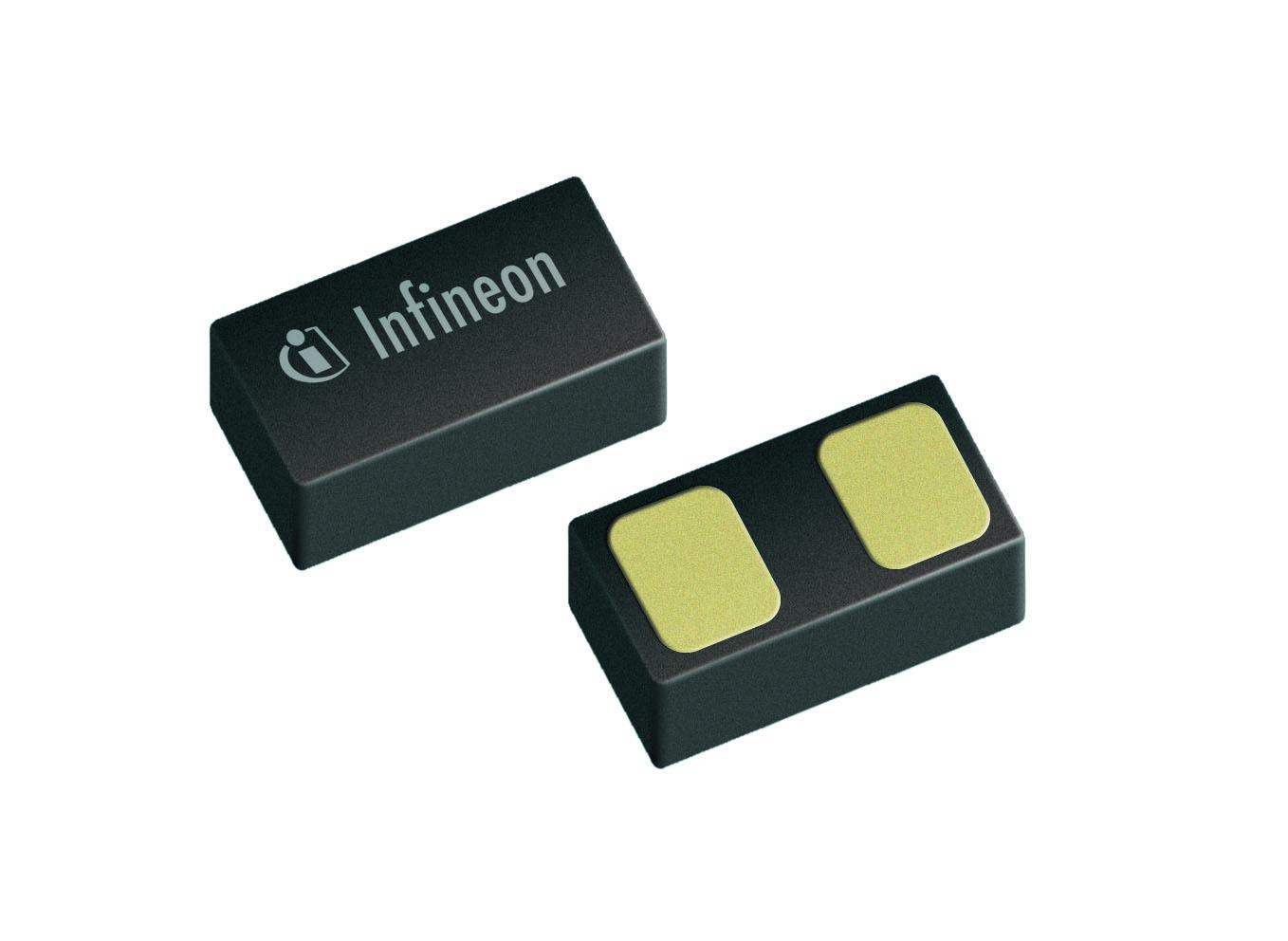

ESD155-B2-W0201
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管数据:
简介: Two line, bi-directional ESD protection device, 3.6 V, 0.18 pF, 0201
Protected Lines: 2
I[R] max: 20.0nA
V[cl typ. reverse](@16A): 5.4V
R[dyn](forward): 0.16Ω
R[dyn](reverse): 0.16Ω
V[ESD] max: 15.0kV
I[EFT ]: 50A
I[PP]: 2A
C[L ]: 0.31pF
V[WM] max: 3.6V
C[L ]: 0.2pF
V[ESD] max: 20.0kV
R[dyn](reverse): 0.45Ω
R[dyn](forward): 0.45Ω
I[R]: 1.0nA
V[cl typ. reverse](TLP 16A): 14
V[cl typ. reverse](TLP 30A): 20
I[EFT ]: 50A
I[PP]: 3A
Protected Lines: 1
V[WM] max: 3.6V
V[WM] max: 5.3V
C[L ]: 0.4pF
V[ESD] max: 20.0kV
R[dyn](reverse): 0.6Ω
R[dyn](forward): 0.5Ω
I[R]: 10.0nA
V[cl typ. reverse](TLP 16A): 19
V[cl typ. reverse](TLP 30A): 28
I[EFT ]: 50A
I[PP]: 3A
Protected Lines: 1
ESD156-B1-W0201
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管数据:
简介: Bi-directional ESD protection device, 3.6 V, 0.19 pF, 0201
Protected Lines: 1
V[WM] max: 3.6V
I[R]: 0.5nA
V[cl typ. reverse](@16A): 5.3V
R[dyn](forward): 0.16Ω
R[dyn](reverse): 0.16Ω
V[ESD] max: 15.0kV
I[EFT ]: 50A
I[PP]: 2A
C[L ] max: 0.21pF
