NVM / 凌捷掩膜: 320.0kByte CPU: 16-bit RAM: 8.0kByte Symmetric Cryptography: AES up to 256-bit Symmetric Cryptography: DES, 3DES Leading Technologies: SOLID FLASH™ Ambient Temperature max: 105.0°C Applications: industrial applications Delivery Forms: sawn wafer Interfaces: ISO 7816 Product Description: security controller Product Description: optimized for industrial applications (SIM) Applications: SIM

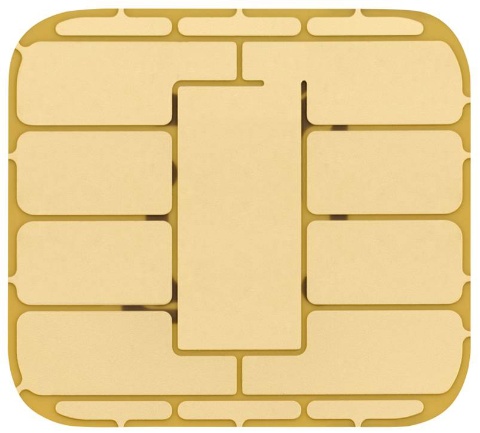

Pitch: 14.25mm Product Name: P-M4.8 Product Description: contact-based module Dimensions: 13 x 11.8mm Thickness: max. 600μm Contact Surface: NiAu ISO – Reference: ISO 7816-1 Delivery Forms: Tape on Reel Applications: payment Product Description: 8 contacts Product Description: epoxy tape Product Description: wire bond Product Description: mold Derivatives: Pd surface Applications: government identification ISO – Reference: ISO 7810 ISO – Reference: ISO 10373-1/-3 Derivatives: Au surface

NVM / 凌捷掩膜: 256.0kByte CPU: 16-bit RAM: 8.0kByte Symmetric Cryptography: AES up to 256-bit Symmetric Cryptography: DES, 3DES Leading Technologies: SOLID FLASH™ Ambient Temperature max: 105.0°C Applications: industrial applications Delivery Forms: MFF2 Delivery Forms: P-M2M4.7 Delivery Forms: sawn wafer Interfaces: ISO 7816 Package: MFF2 Package: P-M2M4.7 Product Description: security controller Product Description: optimized for industrial applications (SIM) Applications: SIM

NVM / 凌捷掩膜: 1.0MByte CPU: 32-bit Certifications: CC EAL5+ high RAM: 32.0kByte Leading Technologies: SOLID FLASH™ Ambient Temperature max: 105.0°C Applications: industrial applications Delivery Forms: MFF2 Delivery Forms: P-M2M4.7 Delivery Forms: sawn wafer Delivery Forms: WF WLB-16 Interfaces: ISO 7816 Package: MFF2 Package: P-M2M4.7 Product Description: security controller Product Description: optimized for industrial applications (eSIM) Applications: eSIM

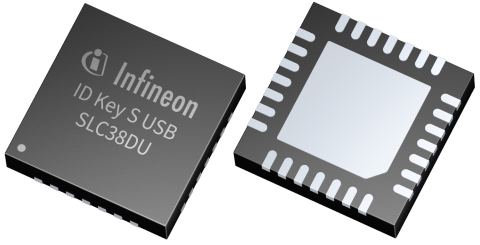

Applications: FIDO security keys Applications: authentication & access tokens Applications: USB tokens Applications: software protection dongles Applications: cold wallet tokens Asymmetric Cryptography: ECC up to 521-bit Asymmetric Cryptography: RSA up to 4096-bit CPU: 32-bit Arm® SecurCore® SC300 Certifications: CC EAL6+ high Delivery Forms: VQFN28 Interfaces: ISO 14443 A/B Interfaces: ISO 18092 passive mode Interfaces: USB 2.0 Interfaces: ISO 7816 Interfaces: I2C Interfaces: GPIOs Product Description: USB-security cryptocontroller with contactless interface RAM: 24.0kByte Symmetric Cryptography: AES up to 256-bit Symmetric Cryptography: DES 更多

Product Description: USB-security cryptocontroller Leading Technologies: SOLID FLASH™ Leading Technologies: USB Applications: FIDO security keys Applications: authentication & access tokens Applications: USB tokens Applications: software protection dongles Applications: cold wallet tokens Interfaces: USB 2.0 Interfaces: ISO 7816 Interfaces: I2C Interfaces: GPIOs NVM / 凌捷掩膜: 600.0kByte RAM: 24.0kByte CPU: 32-bit Arm® SecurCore® SC300 Symmetric Cryptography: AES up to 256-bit Symmetric Cryptography: DES Symmetric Cryptography: 3DES Asymmetric Cryptography: ECC up to 521-bit Asymmetric Cryptography: RSA up to 4096-bit 更多

Pitch: 9.5mm Product Name: S-MFC6.6 Product Description: contact-based module Dimensions: 11 x 8.3mm Thickness: max. 420µm Contact Surface: NiAu ISO – Reference: ISO 7816-1 Delivery Forms: Tape on Reel Applications: payment Derivatives: Pd surface Applications: government identification ISO – Reference: ISO 7810 ISO – Reference: ISO 10373-1/-3 Derivatives: Au surface Product Description: 6 contacts

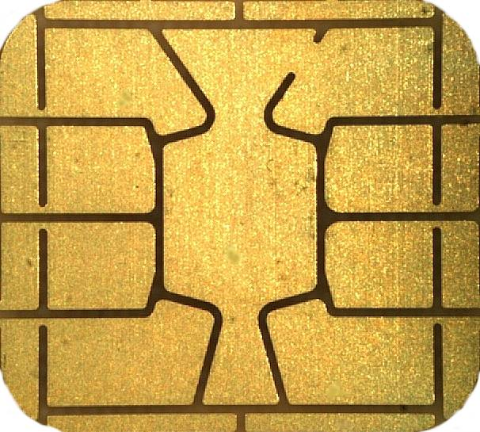

Product Description: contact-based module Pitch: 14.25mm Dimensions: 13 x 11.8mm Contact Surface: NiAu ISO – Reference: ISO 7816-1 Derivatives: Pd surface Delivery Forms: Tape on Reel Thickness: max. 420µm Applications: government identification Applications: authentication Product Name: S-MID4.8 ISO – Reference: ISO 7810 ISO – Reference: ISO 10373-1/-3 Product Description: for high demanding applications Product Description: 10 years life time Derivatives: Au surface

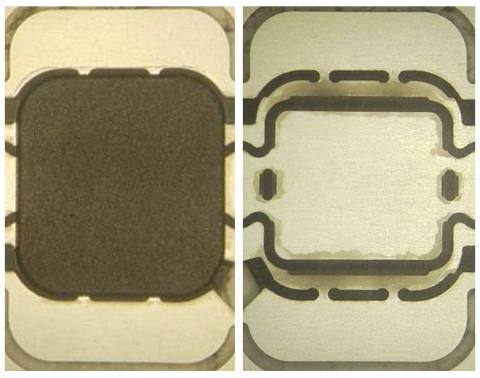

Pitch: 9.5mm Product Name: P-MCS8-2-1 Product Description: thin contactless module Dimensions: 8.1 x 5.15mm Thickness: max. 250µm Contact Surface: Ag ISO – Reference: ISO 7816-1 Delivery Forms: Tape on Reel Applications: payment Product Description: mold Applications: government identification ISO – Reference: ISO 7810 ISO – Reference: ISO 10373-1/-3 ISO – Reference: ISO 14443

Applications: access control Applications: authentication Applications: micro payment Applications: transport ticketing Certifications: CC EAL6+ high for HW Certifications: CIPURSE™ Data Rate: subject to the active interface Delivery Forms: ID-1/ID-000 card (SIM format) Delivery Forms: VQFN-8 Interfaces: ISO 7816 Package: ID-1/ID-000 Package: VQFN-8 Product Description: CIPURSE™ secure access module (SAM) Security Features: 3DES, AES128, AES192, AES256 Security Features: CIPURSE™ encryption Security Features: online and offline mode Security Features: secured key loading Tools: CIPURSE™ development kit Memory: fully configurable Memory: multi-application file system Security Features: NRG™ (ISO/IEC 14443-3 type A with CRYPTO1)
