INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

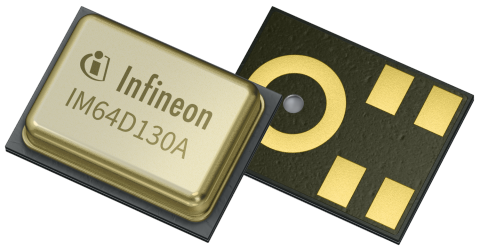

IM64D130A

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ - IM64D130A digital MEMS microphones - best fit for mid performance automotive applications

AOP: 130.0dBSPL Classification: AEC-Q103-003 Current Consumption: 1100.0µA Frequency Range: NoneHz Interfaces: Digital PDM Package dimensions: 3.50 x 2.65 x 0.98 mm³ SNR: 64.0dB(A) Sensitivity: -36.0dBFS Supply Voltage: 1.62 - 3.60 V

IM73A135

分类: 送受话器和扬声器 / 送话器
数据:

简介: High performance XENSIV™ MEMS microphone with ultra high dynamic range

Current Consumption: 170.0µA Interfaces: Analog differential SNR: 73.0dB(A) Supply Voltage: 1.52 - 3.00 V Sensitivity: -38.0dBV Package dimensions: 4.00 x 3.00 x 1.20 mm³ AOP: 135.0dBSPL Applications: Headphones Applications: Conference systems Applications: Cameras, Surveillance Applications: Content creation mics Applications: Medical devices Applications: Industrial applications

IM67D130A

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ - IM67D130A high performance digital MEMS microphone for automotive applications qualified according to automotive standard, AEC-Q103-003

Sensitivity: -36.0dBFS SNR: 67.0dB(A) AOP: 130.0dBSPL Current Consumption: 980.0µA Classification: AEC-Q103-003 Interfaces: Digital PDM Supply Voltage: 1.62 - 3.60 V Frequency Range: NoneHz Package dimensions: 4.00 x 3.00 x 1.20 mm³

IM68A130A

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ - IM68A130A high performance analog MEMS microphone - best fit for Active Noise Cancellation (ANC), automotive qualified AEC-Q103-003

AOP: 130.0dBSPL Classification: AEC-Q103-003 Current Consumption: 105.0µA Interfaces: Analog single-ended SNR: 68.0dB(A) Sensitivity: -38.0dBFS Supply Voltage: 2.40 - 3.60 V Frequency Range: NoneHz Package dimensions: 3.35 x 2.50 x 0.98 mm³

IM67D120A

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ – IM67D120A high performance AEC-Q qualified automotive MEMS microphone for 16-bit codecs, automotive qualified AEC-Q103-003

AOP: 120.0dBSPL Current Consumption: 980.0µA Sensitivity: -26.0dBFS SNR: 67.0dB(A) Classification: AEC-Q103-003 Interfaces: Digital PDM Supply Voltage: 1.62 - 3.60 V Frequency Range: NoneHz Package dimensions: 4.00 x 3.00 x 1.20 mm³

IM66D120A

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ - IM66D120A high performance digital MEMS microphone: best fit for automotive applications in particular Active Noise Cancellation

AOP: 120.0dBSPL Classification: AEC-Q103-003 Current Consumption: 1100.0µA Interfaces: Digital PDM Package dimensions: 3.50 x 2.65 x 0.98 mm³ SNR: 66.0dB(A) Sensitivity: -26.0dBFS Supply Voltage: 1.62 - 3.60 V Frequency Range: NoneHz

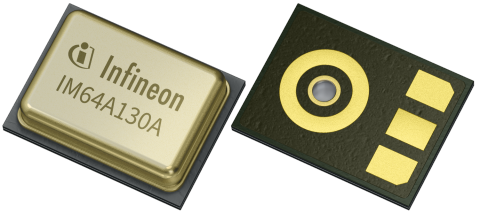

IM64A130A

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ - IM64A130A analog MEMS microphone - best fit for mid performance automotive applications

AOP: 130.0dBSPL Classification: AEC-Q103-003 Current Consumption: 105.0µA Frequency Range: NoneHz Interfaces: Analog single-ended Package dimensions: 3.35 x 2.50 x 0.98 mm³ SNR: 64.0dB(A) Sensitivity: -38.0dBFS Supply Voltage: 2.40 - 3.60 V

IM64D121A

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ - IM64D121A digital MEMS microphones - best fit for mid performance automotive applications

AOP: 121.0dBSPL Classification: AEC-Q103-003 Current Consumption: 1100.0µA Frequency Range: NoneHz Interfaces: Digital PDM Package dimensions: 3.50 x 2.65 x 0.98 mm³ SNR: 64.0dB(A) Sensitivity: -26.0dBFS Supply Voltage: 1.62 - 3.60 V

IM68A130

分类: 送受话器和扬声器 / 送话器
数据:

简介: High performance analog XENSIV™ MEMS microphone

AOP: 130.0dBSPL Current Consumption: 110.0µA Interfaces: Analog single ended Sensitivity: -38.0dBV SNR: 68.0dB(A) Supply Voltage: 2.40 - 3.60 V Package dimensions: 3.35 x 2.50 x 0.98 mm³ Applications: TWS earbuds Applications: Headphones Applications: Home IoT Applications: AR, VR, wearables Applications: Industrial applications

TLE4959-5U

分类: 敏感元器件和传感器(件) / 传感器件 / 力学量传感器件 / 速度传感器件
数据:

简介: XENSIV™ - TLE4959-5U magnetic speed sensor, Hall based with high magnetic sensitivity

Applications: Transmission C Package Available: no Chopped Monocell: no Direction Detection: yes Enhanced ESD: yes Interfaces: Voltage Programmable: no Technology: Hall True Power On: --- Type of Hysteresis: visible adaptive Vibration Suppression: yes
