INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

IM72D128

分类: 送受话器和扬声器 / 送话器
数据:

简介: Ultra-high performance XENSIV™ MEMS microphone with very high dynamic range

Current Consumption: 980.0µA Interfaces: Digital PDM Sensitivity: -36.0dBFS Supply Voltage: 1.62 - 3.60 V Package dimensions: 4.00 x 3.00 x 1.20 mm³ SNR: 72.0dB(A) AOP: 128.0dBSPL Applications: Conference systems Applications: Home IoT Applications: Cameras, surveillance Applications: Medical devices Applications: Industrial applications

IM73D122

分类: 送受话器和扬声器 / 送话器
数据:

简介: Ultra-low noise high sensitivity digital XENSIV™ MEMS microphone

AOP: 122.0dBSPL Current Consumption: 980.0µA Sensitivity: -26.0dBFS SNR: 73.0dB(A) Interfaces: Digital PDM Supply Voltage: 1.62 - 3.60 V Package dimensions: 4.00 x 3.00 x 1.20 mm³ Applications: Laptops, tablets Applications: Conference systems Applications: Cameras, surveillance

IM69D127

分类: 送受话器和扬声器 / 送话器
数据:

简介: High performance XENSIV™ MEMS microphone in a small 3.6 x 2.5mm package

Current Consumption: 980.0µA Interfaces: Digital PDM Supply Voltage: 1.62 - 3.60 V SNR: 69.0dB(A) Sensitivity: -34.0dBFS Package dimensions: 3.60 x 2.50 x 1.00 mm³ AOP: 127.0dBSPL

IM70D122

分类: 送受话器和扬声器 / 送话器
数据:

简介: Digital high sensitivity XENSIV™ MEMS microphone enabling high quality audio capturing for laptop & tablet applications

AOP: 122.0dBSPL Current Consumption: 980.0µA Interfaces: Digital PDM Sensitivity: -26.0dBFS SNR: 70.0dB(A) Supply Voltage: 1.62 - 3.60 V Package dimensions: 3.50 x 2.65 x 1.00 mm³ Applications: Laptops, tablets

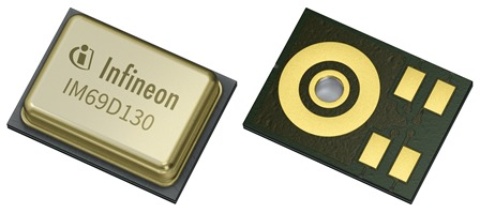

IM69D130

分类: 送受话器和扬声器 / 送话器
数据:

简介: XENSIV™ MEMS microphone with 105dB dynamic range and high output linearity up to 130dBSPL

Current Consumption: 980.0µA Supply Voltage: 1.62 - 3.60 V Sensitivity: -36.0dBFS SNR: 69.0dB(A) AOP: 130.0dBSPL Interfaces: Digital PDM Package dimensions: 4.00 x 3.00 x 1.20 mm³

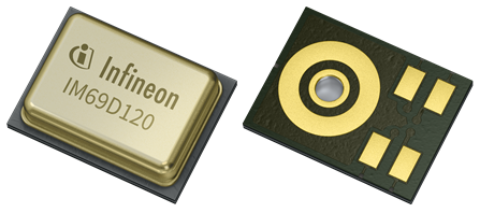

IM69D120

分类: 送受话器和扬声器 / 送话器
数据:

简介: High performance digital XENSIV™ MEMS microphone

Current Consumption: 980.0µA Supply Voltage: 1.62 - 3.60 V SNR: 69.0dB(A) Sensitivity: -26.0dBFS AOP: 120.0dBSPL Interfaces: Digital PDM Package dimensions: 4.00 x 3.00 x 1.20 mm³

KP204

分类:
数据:

简介: XENSIV™ - KP204 pressure sensor for Side Crash and Pedestrian Impact Detection

Operating Temperature max: 90.0°C Protocol: PSI5 Supply Voltage max: 11.0V Classification: ISO 26262-ready |Product Collections|: sensor-longevity Currently planned availability until at least: 2036 Absolute Pressure Range max: 126.5kPa Ambient Pressure Range max: 110.0kPa

KP200

分类:
数据:

简介: XENSIV™ - KP200 pressure sensor IC for side crash detection and pedestrian protection

Supply Voltage max: 11.0V Protocol: PSI5 Operating Temperature max: 85.0°C Classification: ISO 26262-ready |Product Collections|: sensor-longevity Currently planned availability until at least: 2036 Absolute Pressure Range max: 126.5kPa Ambient Pressure Range max: 110.0kPa

KP201

分类:
数据:

简介: XENSIV™ - KP201 pressure sensor for Side Crash Detection and Pedestrian Protection Systems for high operating temperature

Operating Temperature max: 125.0°C Protocol: PSI5 Supply Voltage max: 11.0V Classification: ISO 26262-ready |Product Collections|: sensor-longevity Currently planned availability until at least: 2036 Absolute Pressure Range max: 126.5kPa Ambient Pressure Range max: 110.0kPa

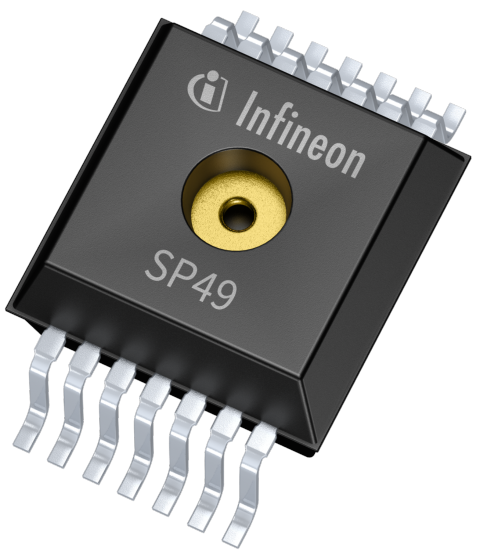

SP490-01-11

分类: 敏感元器件和传感器(件) / 传感器件 / 力学量传感器件 / 压力传感器件
数据:

简介: XENSIV™ - SP49 high level of integration tire pressure monitoring sensor ensures industry leading performance TPMS

Integrated G-Sensor: yes Pressure Range(kPa): NonekPa Additional Information: Flash memory 19kB Target Application: Valve-based TPMS
