INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE5012BDE1200

分类:
数据:

简介: SPI/IIF, GMR, Dual SMD

Package: Dual SMD Interfaces: SPI, IIF Magnetic field max: 70.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: GMR Temperature max: 150.0°C Classification: ISO 26262-ready ISO 26262: ready Currently planned availability until at least: 2033

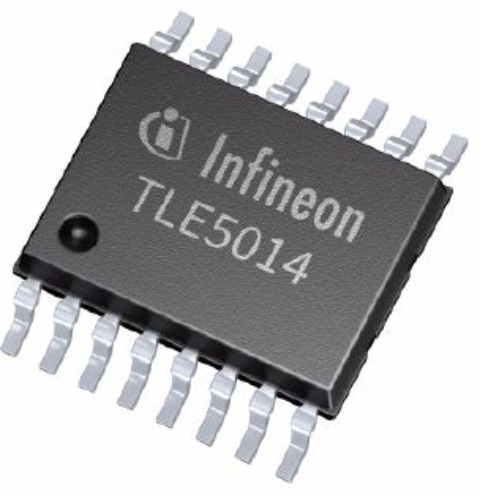

TLE5014C16

分类:
数据:

简介: SPC, GMR, SMD

Package: SMD Interfaces: SPC Magnetic field max: 80.0mT Supply Voltage max: 26.0V Supply Voltage((V)): -18-26 Technology: GMR Temperature max: 125.0°C Classification: ISO 26262-compliant ISO 26262: compliant Currently planned availability until at least: 2038

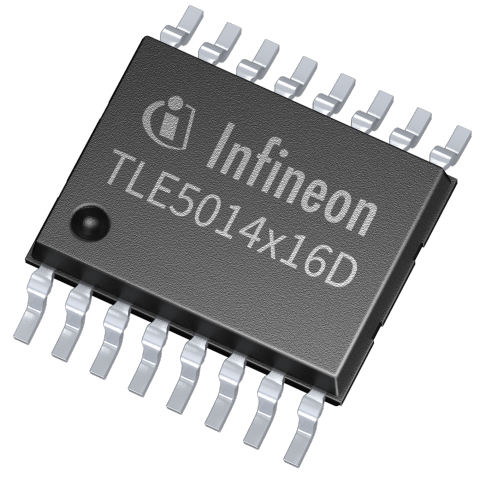

TLE5014P16D

分类:
数据:

简介: PWM, GMR, Dual SMD

Interfaces: PWM Package: Dual SMD Magnetic field max: 80.0mT Supply Voltage max: 26.0V Supply Voltage((V)): -18-26 Technology: GMR Temperature max: 125.0°C Classification: ISO 26262-compliant ISO 26262: compliant Currently planned availability until at least: 2038

TLE5014S16

分类:
数据:

简介: SENT, GMR, SMD

Interfaces: SENT Package: SMD Magnetic field max: 80.0mT Supply Voltage max: 26.0V Supply Voltage((V)): -18-26 Technology: GMR Temperature max: 125.0°C Classification: ISO 26262-compliant ISO 26262: compliant Currently planned availability until at least: 2038

TLE493D-W2B6A3

分类:
数据:

简介: Temperature range Tj=-40 °C…125°C

Interfaces: I2C Pre-Programed Init Address: yes Target Application: Automotive Wake-Up Functionality: yes Online Simulation: https://design.infineon.com/3dsim/ Language: Magnetics Product Category: Sensors Classification: ISO 26262-ready Classification: AEC-Q100 Qualification: Automotive

TLE5014SP16E0001

分类:
数据:

简介: SPI, GMR, SMD

Package: SMD Interfaces: SPI Magnetic field max: 80.0mT Supply Voltage max: 26.0V Supply Voltage((V)): -0.3-26 Technology: GMR Temperature max: 125.0°C Classification: QM ISO 26262: QM Currently planned availability until at least: 2038

TLE5014S16D

分类:
数据:

简介: SENT, GMR, Dual SMD

Package: Dual SMD Interfaces: SENT Magnetic field max: 80.0mT Supply Voltage max: 26.0V Supply Voltage((V)): -18-26 Technology: GMR Temperature max: 125.0°C Classification: ISO 26262-compliant ISO 26262: compliant Currently planned availability until at least: 2038

TLE5014SP16E0002

分类:
数据:

简介: SPI, GMR, SMD

Interfaces: SPI Package: SMD Magnetic field max: 80.0mT Supply Voltage max: 26.0V Supply Voltage((V)): -0.3-26 Technology: GMR Temperature max: 125.0°C Classification: ISO 26262-compliant ISO 26262: compliant Currently planned availability until at least: 2038

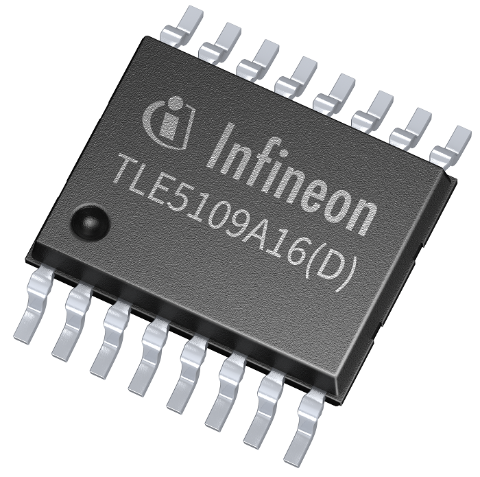

TLE5109A16E2210

分类:
数据:

简介: Analog, AMR, SMD

Family: Angle Sensors Interfaces: Analog Package: SMD Magnetic field max: 500.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: AMR Temperature max: 125.0°C Classification: ISO 26262-ready ISO 26262: ready Currently planned availability until at least: 2033

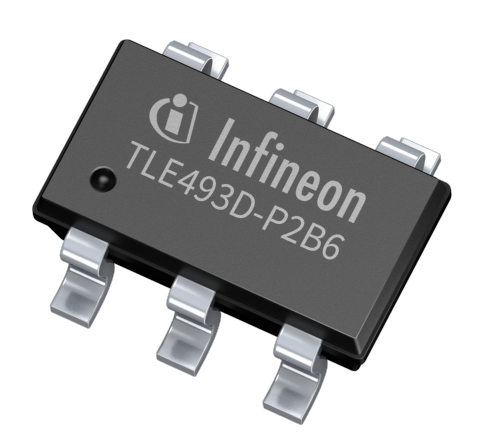

TLE493D-P2B6A0

分类:
数据:

简介: high accuracy, low power

Additional Information: improved accuracy Interfaces: I2C Pre-Programed Init Address: no Target Application: Automotive Wake-Up Functionality: yes Classification: ISO 26262-ready Classification: AEC-Q100 Qualification: AEC-Q100/ ISO 26262 ready
