INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

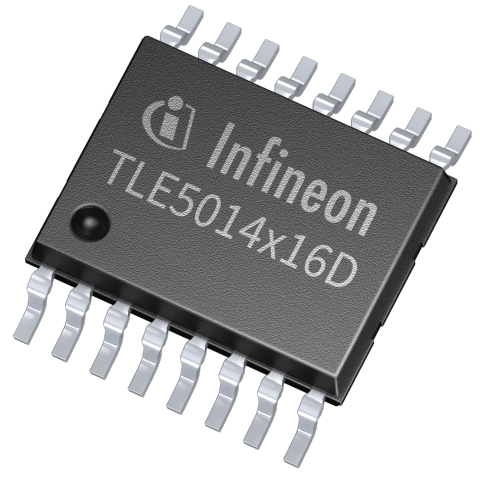

TLE5014SP16DE0002

分类:
数据:

简介: SPI, GMR, Dual SMD

Interfaces: SPI Package: Dual SMD Magnetic field max: 80.0mT Supply Voltage max: 26.0V Supply Voltage((V)): -0.3-26 Technology: GMR Temperature max: 125.0°C Classification: ISO 26262-compliant ISO 26262: compliant Currently planned availability until at least: 2038

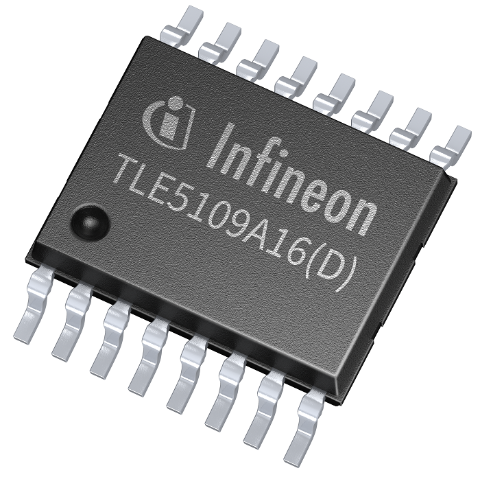

TLE5109A16E1210

分类:
数据:

简介: Analog, AMR, SMD

Family: Angle Sensors Interfaces: Analog Package: SMD Magnetic field max: 500.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: AMR Temperature max: 125.0°C Classification: ISO 26262-ready ISO 26262: ready Currently planned availability until at least: 2033

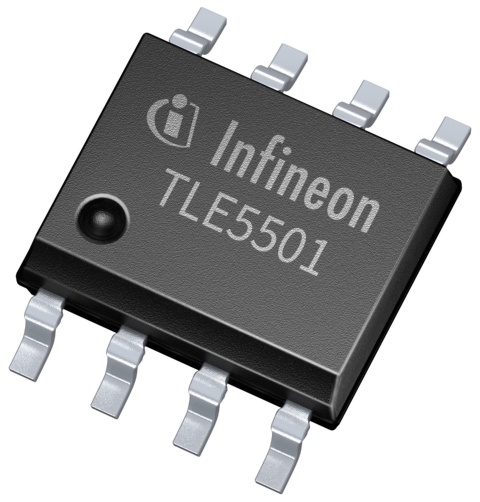

TLE5501E0001

分类:
数据:

简介: XENSIV™ - TLE5501 E0001 angle sensor, automotive qualified for high sensitivity applications

Package: SMD Interfaces: Analog Magnetic field max: 100.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: TMR Temperature max: 150.0°C Classification: QM ISO 26262: compliant Currently planned availability until at least: 2033

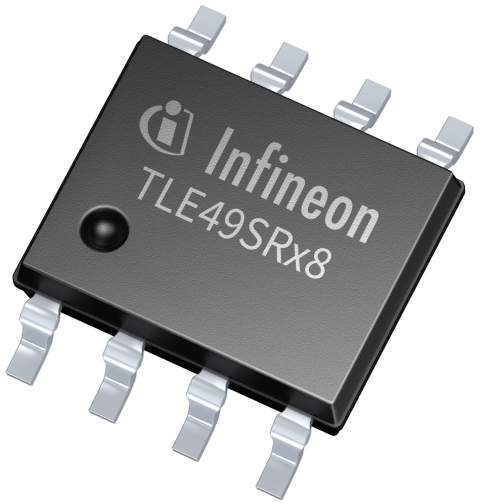

TLE49SRP8

分类:
数据:

简介: PWM, Hall, SMD

Classification: ISO 26262-compliant Interfaces: PWM Package: SMD Supply Voltage((V)): -21-26 Supply Voltage max: 26.0V Technology: Hall Temperature max: 125.0°C Magnetic field max: 90.0mT Currently planned availability until at least: 2038

TLE5109A16DE1210

分类:
数据:

简介: Analog, AMR, Dual SMD

Interfaces: Analog Package: Dual SMD Magnetic field max: 500.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: AMR Temperature max: 125.0°C Classification: ISO 26262-ready ISO 26262: ready

TLE5309DE1211

分类:
数据:

Package: Dual SMD Interfaces: Analog Magnetic field max: 50.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: AMR/GMR Temperature max: 125.0°C Classification: ISO 26262-ready ISO 26262: ready Currently planned availability until at least: 2033

TLI5012BE1000

分类:
数据:

简介: SPI/IIF, GMR, SMD

Package: SMD Interfaces: SPI, IIF Magnetic field max: 70.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: GMR Temperature max: 125.0°C Classification: QM ISO 26262: QM Currently planned availability until at least: 2033

TLE5309DE2211

分类:
数据:

简介: XENSIV™ - TLE5309D magnetic angle with analog output, highly immune to air-gap variations

Interfaces: Analog Package: Dual SMD Magnetic field max: 50.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: AMR/GMR Temperature max: 125.0°C Classification: ISO 26262-ready ISO 26262: ready Currently planned availability until at least: 2033

TLE5501E0002

分类:
数据:

简介: XENSIV(TM) - TLE5501 E0002 TMR-based angle sensor automotive ASIL

Interfaces: Analog Package: SMD Magnetic field max: 100.0mT Supply Voltage max: 6.5V Supply Voltage((V)): -0.5-6.5 Technology: TMR Temperature max: 150.0°C Classification: ISO 26262-compliant ISO 26262: compliant Currently planned availability until at least: 2033

TLE5309DE5201

分类:
数据:
