INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

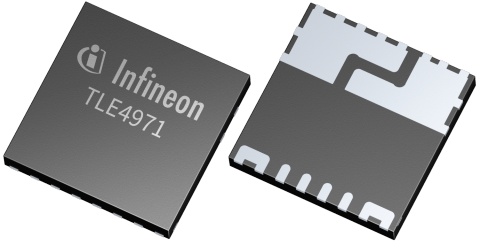

TLE4971-A050T5-E0001
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件数据:
简介: 50 A, <2 %, 3.1-3.5V, optical inspection
Accuracy: 2.0%
Current range: 50.0A
Diagnosis: OCD 1, OCD 2, OV, UV, diagnosis mode
Interfaces: Analog
Isolation UIORM: 1150.0V
Supply Voltage: 3.1 - 3.5
Classification: AEC-Q100
TLE4973-A120T5-S0001
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件数据:
简介: 132 A, 5 V, ISO 26262-compliant
Accuracy: 3.45%
Classification: AEC-Q100
Classification: ISO 26262-compliant
Current range: 132.0A
Diagnosis: OCD, OV, UV, diagnosis mode
Interfaces: Analog
Supply Voltage: 4.5 - 5.5
Accuracy: 2.0%
Current range: 50.0A
Diagnosis: OCD 1, OCD 2, OV, UV, diagnosis mode
Interfaces: Analog
Isolation UIORM: 1150.0V
Supply Voltage: 3.1 - 3.5
Classification: AEC-Q100
TLE4973-A025T5-S0001
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件数据:
简介: 27 A, 5 V, ISO 26262-compliant
Accuracy: 3.45%
Classification: AEC-Q100
Classification: ISO 26262-compliant
Current range: 27.0A
Diagnosis: OCD, OV, UV, diagnosis mode
Interfaces: Analog
Isolation UIORM: 1150.0V
Supply Voltage: 4.5 - 5.5
TLE4971-A025N5-U-E0001
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件数据:
简介: 25 A, <2 %, 3.1-3.5V, UL/CSA
Accuracy: 2.0%
Current range: 25.0A
Diagnosis: OCD 1, OCD 2, OV, UV, diagnosis mode
Interfaces: Analog
Isolation UIORM: 1150.0V
Supply Voltage: 3.1 - 3.5
Classification: AEC-Q100
Classification: IEC62368-1
Classification: UL 1577

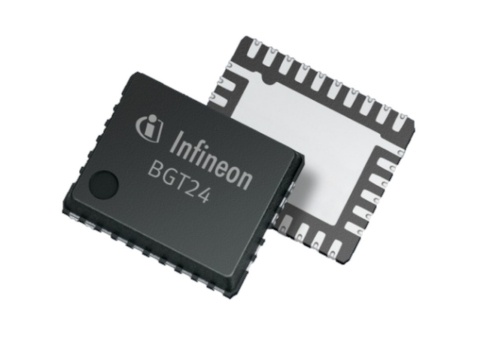

BGT24LTR22
分类:数据:
简介: XENSIV™ 24GHz multichannel radar sensor BGT24LTR22 for distance and angle measurement
Supply Voltage: 1.5V
NF: 8.0dB
Current Consumption: 170.0mA
Frequency max: 24.25GHz
Gain: 25.0dB
Antenna: External
Number of Rx Antennas: 2.0
Number of Tx Antennas: 2.0
Direction of Motion: Yes
Motion: yes
Target Application: Drone landing assist
Target Application: Drone obstacle avoidance
Target Application: People tracking
Target Application: HVAC
Target Application: Traffic monitoring
Target Application: Robotics collision avoidance
Target Application: Street lighting
Target Application: Security systems
Speed [m/s]: yes
Angle of Arrival: yes
更多
Max Detection Range: 20 m
Range: yes
Temperature Range: -40 to + 85°C
Qualification: Industrial (JEDEC20/22)
Family: XENSIV™ 24GHz Radar Sensors
Min Detection Range: 0.5 m
Supply Voltage: 3.3V
NF: 12.0dB
Current Consumption: 150.0mA
Frequency max: 26.0GHz
Gain: 26.0dB
Antenna: External
Number of Rx Antennas: 1.0
Number of Tx Antennas: 1.0
Direction of Motion: Yes
Target Application: Drone landing assist
Target Application: Drone obstacle avoidance
Target Application: Proximity sensing
Target Application: Building security
Target Application: Street lighting
Target Application: Industrial automation
Target Application: Tank level sensing
Motion: yes
Speed [m/s]: yes
Max Detection Range: 20 m
Range: yes
更多
Target Application: Smart Home
Temperature Range: -40 to + 105°C
Family: XENSIV™ 24GHz Radar Sensors
Qualification: Industrial (JEDEC20/22)
Min Detection Range: 0.5 m
BGT24MTR12
分类:数据:
简介: 24 – 24.25 GHz | 210 mA @ 3.3 V supply | 26 dB gain | 12 dB noise figure (NFSSB)
Supply Voltage: 3.3V
NF: 12.0dB
Current Consumption: 210.0mA
Frequency max: 24.25GHz
Gain: 26.0dB
Antenna: External
Number of Rx Antennas: 2.0
Number of Tx Antennas: 1.0
Direction of Motion: Yes
Target Application: Building security
Target Application: Drone obstacle avoidance
Target Application: Robotics collision avoidance
Target Application: Street lighting
Target Application: Industrial automation
Motion: yes
Board Name: DEMO POSITION2GO
Speed [m/s]: yes
Angle of Arrival: yes
Max Detection Range: 20 m
Range: yes
更多
Target Application: Smart Home
Temperature Range: -40 to + 105°C
Family: XENSIV™ 24GHz Radar Sensors
Qualification: Industrial (JEDEC20/22)
Min Detection Range: 0.5 m

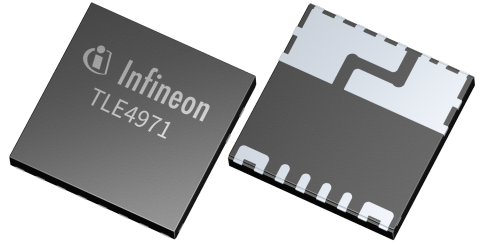

TLE4971-A120T5-U-E0001
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件数据:
简介: XENSIV™ - TLE4971-A120T5-U-E0001 high precision coreless current sensor, analog interface, optical inspection capable small SMD package, UL certified
Accuracy: 2.0%
Classification: AEC-Q100
Classification: IEC62368-1
Current range: 120.0A
Diagnosis: OCD 1, OCD 2, OV, UV, diagnosis mode
Interfaces: Analog
Isolation UIORM: 1150.0V
Supply Voltage: 3.1 - 3.5
Classification: UL 1577
TLE4971-A120T5-E0001
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件数据:
简介: 120 A, <2 %, 3.1-3.5V, optical inspection
Accuracy: 2.0%
Current range: 120.0A
Diagnosis: OCD 1, OCD 2, OV, UV, diagnosis mode
Interfaces: Analog
Isolation UIORM: 1150.0V
Supply Voltage: 3.1 - 3.5
Classification: AEC-Q100
