INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

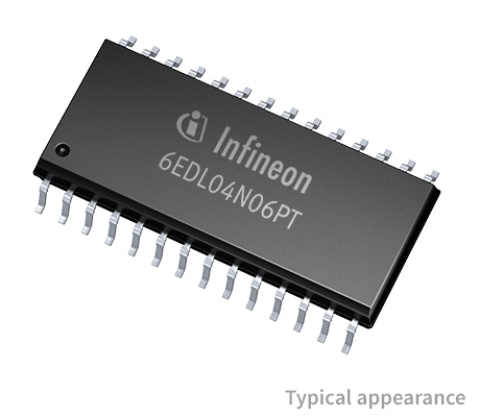

6EDL04N06PT
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 600 V three-phase gate driver IC with integrated bootstrap diode, over current protection, enable and fault reporting
Input Vcc: NoneV
Channels: 6.0
Configuration: Three Phase
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.165A
Output Current(Sink): 0.375A
Turn Off Propagation Delay: 530.0ns
Turn On Propagation Delay: 530.0ns
VCC UVLO(Off): 8.1V
VCC UVLO(On): 9.0V
VBS UVLO(Off): 8.1V
VBS UVLO(On): 9.0V

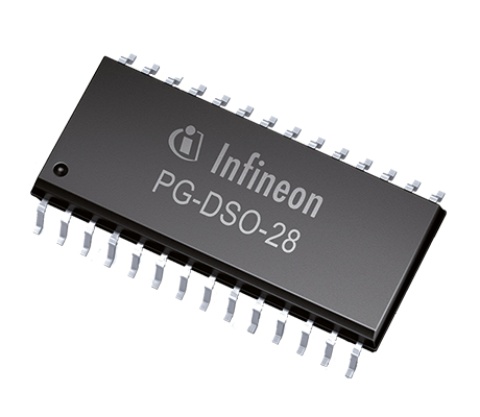

IR2235S
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 1200 V three-phase gate driver IC with over current protection, fault reporting, OPAMP and shutdown
Input Vcc: NoneV
Channels: 6.0
Configuration: Three Phase
Voltage Class: 1200.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.25A
Output Current(Sink): 0.5A
Turn Off Propagation Delay: 700.0ns
Turn On Propagation Delay: 750.0ns
VCC UVLO(Off): 9.4V
VCC UVLO(On): 10.4V
VBS UVLO(Off): 9.4V
VBS UVLO(On): 10.4V
Input Vcc: NoneV
Channels: 2.0
Configuration: High-side and low-side
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.21A
Output Current(Sink): 0.36A
Turn Off Propagation Delay: 150.0ns
Turn On Propagation Delay: 160.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.9V
Input Vcc: NoneV
Channels: 2.0
Configuration: High-side and low-side
Voltage Class: 200.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Sink): 1.0A
Output Current(Source): 1.0A
Turn Off Propagation Delay: 60.0ns
Turn On Propagation Delay: 60.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 9.0V
VBS UVLO(Off): 8.2V
VBS UVLO(On): 9.0V
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.29A
Output Current(Sink): 0.6A
Turn Off Propagation Delay: 150.0ns
Turn On Propagation Delay: 680.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.9V

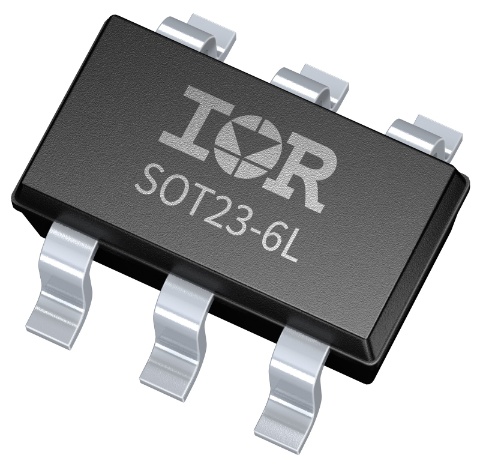

IRS20752L
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 200 V single high-side gate driver IC with single input
Input Vcc: NoneV
Channels: 1.0
Configuration: High-side
Voltage Class: 200.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Sink): 0.24A
Output Current(Source): 0.16A
Turn Off Propagation Delay: 215.0ns
Turn On Propagation Delay: 140.0ns
VCC UVLO(Off): 8.0V
VCC UVLO(On): 9.0V
VBS UVLO(Off): 8.0V
VBS UVLO(On): 9.0V
Input Vcc: NoneV
Channels: 2.0
Configuration: High-side and low-side
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.29A
Output Current(Sink): 0.6A
Turn Off Propagation Delay: 150.0ns
Turn On Propagation Delay: 160.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.9V

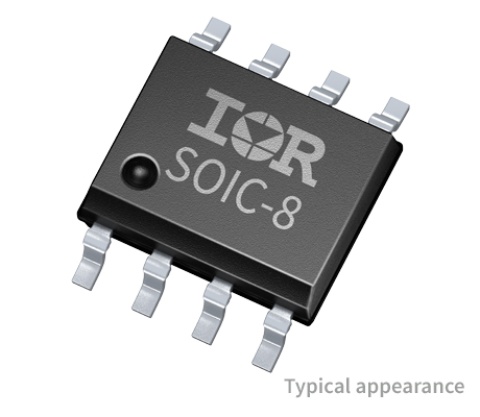

IRS2008S
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 200 V half-bridge gate driver IC with shutdown and VCC & VBS UVLO ensuring reliable start-up operation
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 200.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Package: SOIC 8N
Output Current(Source): 0.29A
Output Current(Sink): 0.6A
Turn Off Propagation Delay: 150.0ns
Turn On Propagation Delay: 680.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.9V
VBS UVLO(Off): 8.2V
VBS UVLO(On): 8.9V

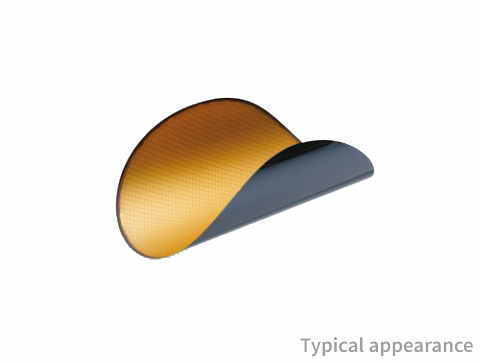

6EDM2003L06-F10
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 3-Phase Bridge Driver IC Bare Die for IGBT and MOSFET
Channels: 6.0
Configuration: Three Phase
Input Vcc: NoneV
Isolation Type: Functional levelshift
Output Current(Sink): 0.3A
Output Current(Source): 0.089A
VBS UVLO(Off): 10.4V
VBS UVLO(On): 12.1V
VCC UVLO(Off): 10.4V
VCC UVLO(On): 12.1V
Turn Off Propagation Delay: 560.0ns
Turn On Propagation Delay: 555.0ns
Voltage Class: 600.0V
Qualification: Industrial

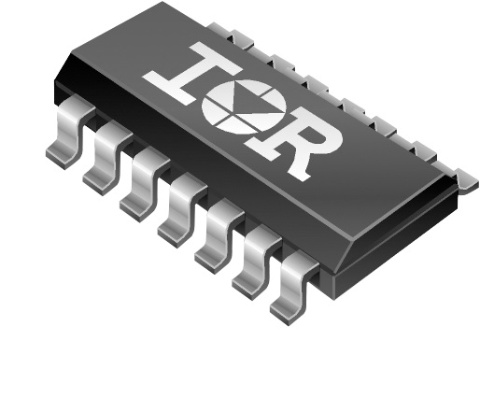

IRS21064S
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器数据:
简介: 600 V high-side and low-side gate driver IC with separate pin for logic ground
Input Vcc: NoneV
Channels: 2.0
Configuration: High-side and low-side
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.29A
Output Current(Sink): 0.6A
Turn Off Propagation Delay: 200.0ns
Turn On Propagation Delay: 220.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.9V
VBS UVLO(Off): 8.2V
VBS UVLO(On): 8.9V
