INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

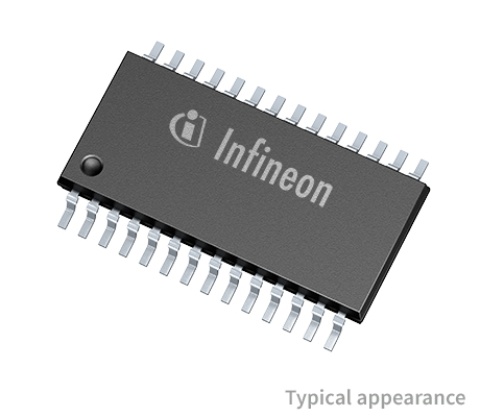

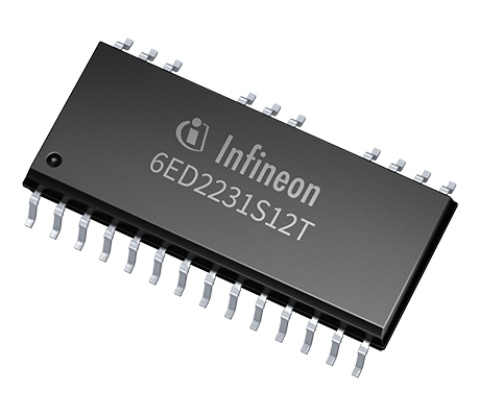

6ED2231S12T

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 1200 V, 3-phase gate driver for IGBT/ SiC modules and discretes with integrated bootstrap diode, over current and more tighten UVLO protection

Channels: 6.0 Configuration: Three Phase Output Current(Sink): 0.65A Output Current(Source): 0.35A Turn Off Propagation Delay: 650.0ns Turn On Propagation Delay: 700.0ns VBS UVLO(Off): 11.3V VBS UVLO(On): 12.2V VCC UVLO(Off): 11.3V VCC UVLO(On): 12.2V Voltage Class: 1200.0V Isolation Type: SOI (Silicon On Insulator) Input Vcc: NoneV Isolation Type: Functional levelshift Qualification: Industrial

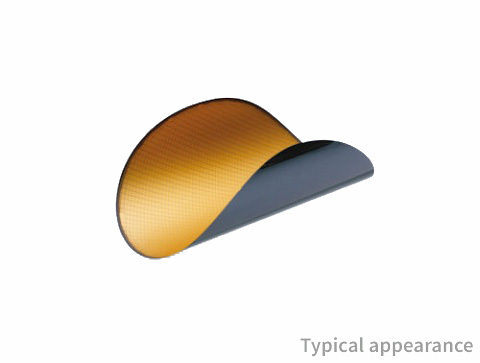

6EDL04N06PC

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 600 V three-phase gate driver IC bare die with integrated bootstrap diode, over current protection, enable and fault reporting

Input Vcc: NoneV Channels: 6.0 Configuration: Three Phase Voltage Class: 600.0V Qualification: Industrial Isolation Type: Functional levelshift Output Current(Sink): 0.375A Output Current(Source): 0.17A Turn On Propagation Delay: 530.0ns VCC UVLO(Off): 8.1V VCC UVLO(On): 9.0V VBS UVLO(Off): 8.1V VBS UVLO(On): 9.0V Turn Off Propagation Delay: 490.0ns

IR2214SS

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 1200 V half-bridge gate driver IC with integrated DESAT, Soft-Off, UVLO, TLTO, deadtime, and fault reporting

Input Vcc: NoneV Channels: 2.0 Configuration: Half Bridge Voltage Class: 1200.0V Qualification: Industrial Isolation Type: Functional levelshift Output Current(Source): 2.0A Output Current(Sink): 3.0A Turn Off Propagation Delay: 440.0ns Turn On Propagation Delay: 440.0ns VCC UVLO(Off): 9.3V VCC UVLO(On): 10.2V VBS UVLO(Off): 9.3V VBS UVLO(On): 10.2V

IR2213S

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 1200 V high- and low-side gate driver IC with shutdown

Input Vcc: NoneV Channels: 2.0 Configuration: High-side and low-side Voltage Class: 1200.0V Qualification: Industrial Isolation Type: Functional levelshift Output Current(Source): 2.0A Output Current(Sink): 2.5A Turn Off Propagation Delay: 225.0ns Turn On Propagation Delay: 280.0ns VCC UVLO(Off): 9.3V VCC UVLO(On): 10.2V VBS UVLO(Off): 9.3V VBS UVLO(On): 10.2V

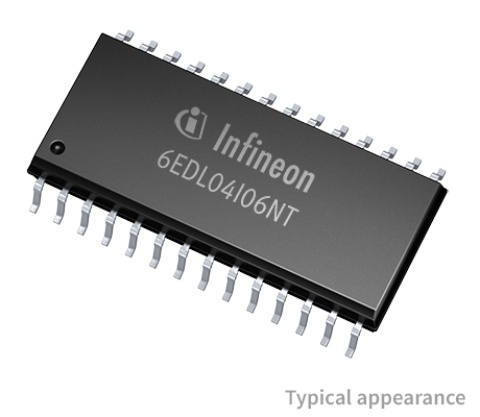

6EDL04I06NT

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 600 V three-phase gate driver IC with integrated bootstrap diode, over current protection, enable and fault reporting

Input Vcc: NoneV Channels: 6.0 Configuration: Three Phase Voltage Class: 600.0V Qualification: Industrial Isolation Type: Functional levelshift Output Current(Source): 0.165A Output Current(Sink): 0.375A Turn Off Propagation Delay: 490.0ns Turn On Propagation Delay: 530.0ns VCC UVLO(On): 11.7V VCC UVLO(Off): 9.8V VBS UVLO(On): 11.7V VBS UVLO(Off): 9.8V

6EDM2003L06-F06

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 3-Phase Bridge Driver IC Bare Die for IGBT and MOSFET

Channels: 6.0 Configuration: Three Phase Input Vcc: NoneV Isolation Type: Functional levelshift Output Current(Sink): 0.245A Output Current(Source): 0.053A VBS UVLO(Off): 10.4V VBS UVLO(On): 12.1V VCC UVLO(Off): 10.4V VCC UVLO(On): 12.1V Turn Off Propagation Delay: 560.0ns Turn On Propagation Delay: 555.0ns Voltage Class: 600.0V Qualification: Industrial

6ED003L02-F2

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 200 V three-phase gate driver IC with over current protection, enable and fault reporting

Input Vcc: NoneV Channels: 6.0 Configuration: Three Phase Voltage Class: 200.0V Qualification: Industrial Isolation Type: Functional levelshift Output Current(Source): 0.165A Output Current(Sink): 0.375A Turn Off Propagation Delay: 490.0ns Turn On Propagation Delay: 530.0ns VCC UVLO(On): 11.7V VCC UVLO(Off): 9.8V VBS UVLO(On): 11.7V VBS UVLO(Off): 9.8V

IR2010

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 200 V high-side and low-side gate driver IC with shutdown

Input Vcc: NoneV Channels: 2.0 Configuration: High-side and low-side Voltage Class: 200.0V Qualification: Industrial Isolation Type: Functional levelshift Output Current(Sink): 3.0A Output Current(Source): 3.0A Turn Off Propagation Delay: 65.0ns Turn On Propagation Delay: 95.0ns VCC UVLO(Off): 8.2V VCC UVLO(On): 8.6V VBS UVLO(Off): 8.2V VBS UVLO(On): 8.6V

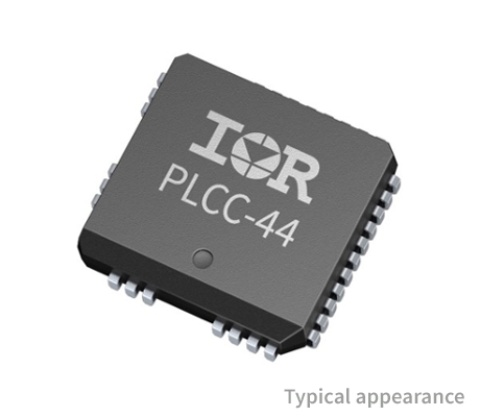

IR2235J

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 1200 V three-phase gate driver IC with over current protection, fault reporting, OPAMP and shutdown

Input Vcc: NoneV Channels: 6.0 Configuration: Three Phase Voltage Class: 1200.0V Qualification: Industrial Isolation Type: Functional levelshift Output Current(Source): 0.25A Output Current(Sink): 0.5A Turn Off Propagation Delay: 700.0ns Turn On Propagation Delay: 750.0ns VCC UVLO(Off): 9.4V VCC UVLO(On): 10.4V VBS UVLO(Off): 9.4V VBS UVLO(On): 10.4V

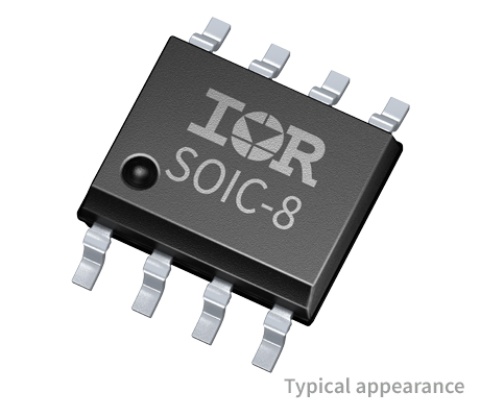

IRS2007S

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: 200 V half-bridge gate driver IC with VCC & VBS UVLO ensuring reliable start-up operation

Input Vcc: NoneV Channels: 2.0 Configuration: Half Bridge Voltage Class: 200.0V Qualification: Industrial Isolation Type: Functional levelshift Package: SOIC 8N Output Current(Sink): 0.6A Output Current(Source): 0.29A Turn Off Propagation Delay: 150.0ns Turn On Propagation Delay: 680.0ns VCC UVLO(Off): 8.2V VCC UVLO(On): 8.9V VBS UVLO(Off): 8.2V VBS UVLO(On): 8.9V
