INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

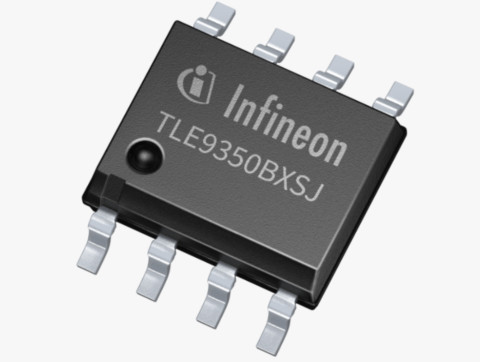

TLE9350BXSJ

分类:
数据:

简介: TLE9350XSJ Infineon High Speed CAN FD transceiver for use in HS CAN networks for automotive and also for industrial applications.

Language: IBIS Family: CAN FD 5MBit/s Additional Features: higher mission profile Bus Wake-Up Capability: No Standards: ISO 11898-2:2016 Standards: SAE J2284-4/-5 Quiescent Current: <18µA @5V STB Transmission Rate max: 5.0MBit/s |Product Group|: CAN transceiver Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

TLE8250GVIO

分类:
数据:

简介: The TLE8250GVIO is a transceiver designed for CAN networks in automotive and industrial applications.

Additional Features: NEN Bus Wake-Up Capability: No Features: NEN Wake-up Inputs: None Qualification: Automotive Standards: ISO11898-2 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 1.0MBit/s Type: CAN Family: Classical CAN 1MBit/s Base Product: CAN Classic Product Category: Transceivers Quiescent Current: < 15 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

TLE9250LE

分类:
数据:

简介: The TLE9250LE is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: No Additional Features: NRM, NEN Wake-up Inputs: None Standards: ISO11898-2 Type: CAN FD Features: Tiny Package Features: NRM Features: Receive Only Mode Features: NEN Qualification: Automotive Supply Voltage: 5 V Language: IBIS Product Category: Transceivers Base Product: TLE925x Type: CAN Quiescent Current: < 20 µA at 5 V standby Family: CAN Transceiver Currently planned availability until at least: 2038 |Product Group|: CAN transceiver 更多

Green: RoHS compliant Green: Halogen free

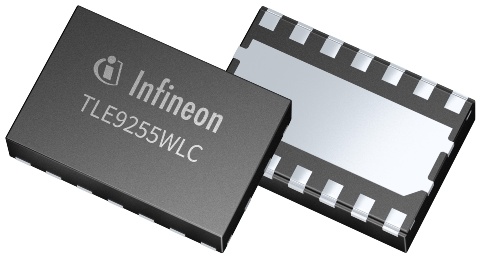

TLE9255WLC

分类:
数据:

简介: The TLE9255WLC is part of the Infineon CAN transceiver family being compliant to the new ISO11898-2 from 2016 and also to the former ISO11898-6

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Wake-up Inputs: Wake-up Pin Wake-up Inputs: Bus Wake-up Standards: ISO11898-6 Type: CAN PN Features: Tiny Package Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN FD Type: CAN Language: IBIS Product Category: Transceivers Base Product: TLE9255 Additional Features: Partial Networking, WK, SPI, INH, Vio Features: Receive Only Mode,INH,Partial Networking,SPI,Vio,WK Quiescent Current: < 20 µA in sleep mode Family: CAN Transceiver Currently planned availability until at least: 2038 更多

|Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

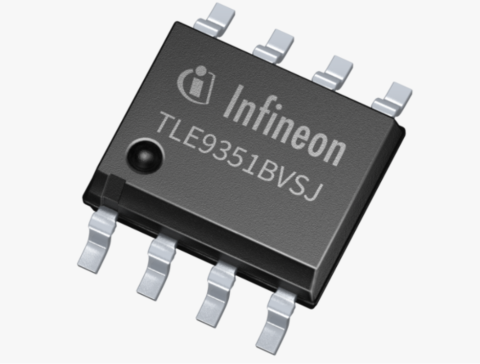

TLE9351BVSJ

分类:
数据:

简介: High speed CAN Transceivers with up to 5Mbit/s transmission speed for automotive & many other applications.

Language: IBIS Additional Features: higher mission profile Bus Wake-Up Capability: Yes Standards: ISO 11898-2:2016 Standards: SAE J2284-4/-8 Quiescent Current: <18µA @5V STB Transmission Rate max: 5.0MBit/s Family: CAN Transceiver |Product Group|: CAN transceiver Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

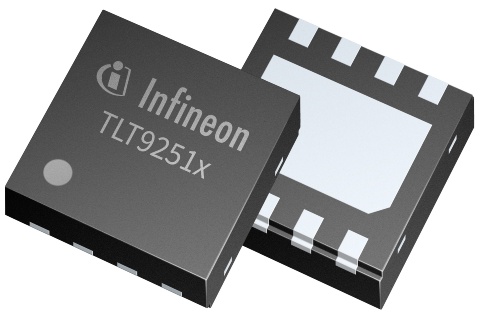

TLT9251VLE

分类:
数据:

简介: TLT9251VLE is the high speed CAN Transceiver with flexible data rate up to 5MB and grade “0” (Ta=+150°) capability.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: WK Additional Features: Vio Standards: ISO11898-2 Features: WK Features: Vio Qualification: Automotive Type: CAN FD Language: IBIS Product Category: Transceivers Base Product: TLT9252x Supply Voltage: 3.3 V Supply Voltage: 5 V Wake-up Inputs: Bus Wake-up Features: AEC-Q100 Grade 0 Additional Features: AEC-Q100 Grade 0 Quiescent Current: < 15 µA at 5 V stand by Family: CAN Transceiver Currently planned availability until at least: 2038 更多

|Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

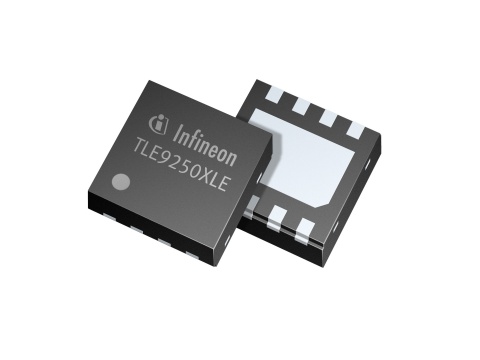

TLE9250XLE

分类:
数据:

简介: The TLE9250XLE is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: No Additional Features: RM, Vio Wake-up Inputs: None Standards: ISO11898-2 Type: CAN FD Features: Tiny Package Features: Receive Only Mode Features: Vio Features: RM Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: N/A, no standby mode Family: CAN Transceiver Currently planned availability until at least: 2038 更多

|Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

TLE9251VLE

分类:
数据:

简介: The TLE9251VLE is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: STB, Vio Wake-up Inputs: Bus Wake-up Standards: ISO11898-5 Features: STB Features: Tiny Package Features: Vio Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN FD Type: CAN Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: < 15 µA at 5 V standby Family: CAN Transceiver Currently planned availability until at least: 2038 |Product Group|: CAN transceiver 更多

Green: RoHS compliant Green: Halogen free

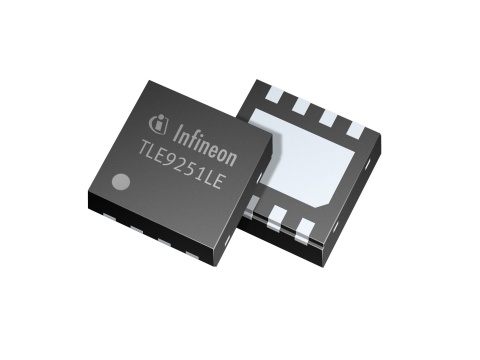

TLE9251LE

分类:
数据:

简介: The TLE9251LE is part of the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: STB Standards: ISO11898-5 Language: IBIS Product Category: Transceivers Base Product: TLE925x Features: STB,Vcc Qualification: Automotive Supply Voltage: 5 V Type: CAN FD Type: CAN Wake-up Inputs: Bus Wake-up Quiescent Current: < 18 µA at 5 V standby Family: CAN Transceiver Currently planned availability until at least: 2038 |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

TLT9252VLC

分类:
数据:

简介: TLT9252VLC is the first Infineon high speed CAN Transceiver with flexible data rate up to 5MB and grade “0” (Ta=+150°) capability.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: WK Additional Features: Vio Standards: ISO11898-2 Features: WK Features: Vio Qualification: Automotive Type: CAN FD Language: IBIS Product Category: Transceivers Base Product: TLT9252x Supply Voltage: 3.3 V Supply Voltage: 5 V Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Features: AEC-Q100 Grade 0 Additional Features: AEC-Q100 Grade 0 Quiescent Current: < 25 µA in sleep mode Family: CAN Transceiver 更多

Currently planned availability until at least: 2038 |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free
