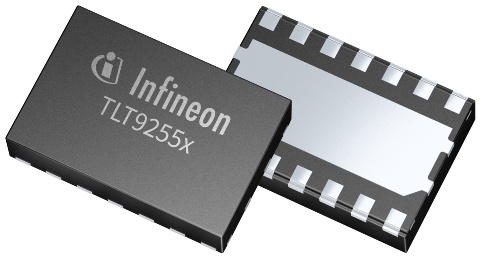

TLT9255WLC

分类:
数据:

简介: TLT9255WLC is the first Infineon high speed CAN Transceiver with flexible data rate up to 5MB and grade “0” (Ta=+150°) capability.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Standards: ISO11898-2 Qualification: Automotive Type: CAN FD Features: Partial Networking Features: WK Features: SPI Features: INH Features: Vio Language: IBIS Product Category: Transceivers Base Product: TLT9255 Additional Features: Partial Networking, WK, SPI, INH, Vio Features: Receive Only Mode Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CN Type: CAN Type: CAN PN 更多

Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Features: AEC-Q100 Grade 0 Additional Features: AEC-Q100 Grade 0 Quiescent Current: < 20 µA in sleep mode Family: CAN Transceiver Currently planned availability until at least: 2038 |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

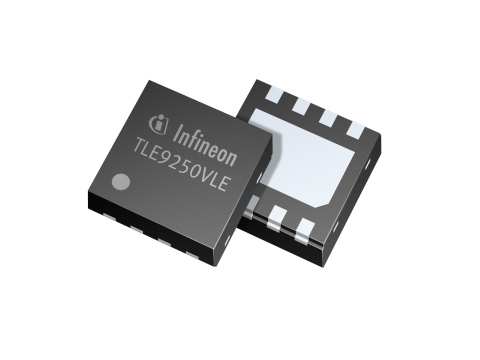

TLE9250VLE

分类:
数据:

简介: The TLE9250VLE is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: No Additional Features: NEN; Vio Wake-up Inputs: None Standards: ISO11898-2 Type: CAN FD Features: NEN Features: Tiny Package Features: Vio Qualification: Automotive Supply Voltage: 3.3 V Type: CAN Supply Voltage: 5 V Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: < 15 µA at 5 V standby Family: CAN Transceiver Currently planned availability until at least: 2038 |Product Group|: CAN transceiver 更多

Green: RoHS compliant Green: Halogen free

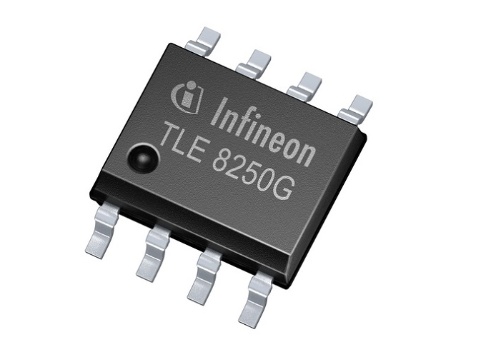

TLE8250G

分类:
数据:

简介: The TLE8250G is a transceiver designed for CAN networks in automotive and industrial applications.

Additional Features: NRM, NEN Bus Wake-Up Capability: No Features: NEN Wake-up Inputs: None Qualification: Automotive Standards: ISO11898-2 Supply Voltage: 5 V Transmission Rate max: 1.0MBit/s Type: CAN Family: Classical CAN 1MBit/s Features: NRM Features: Receive Only Mode Base Product: CAN Classic Product Category: Transceivers Quiescent Current: < 15 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

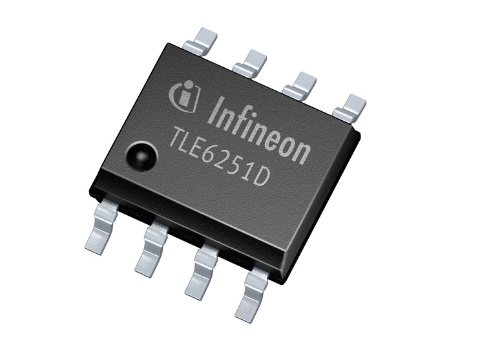

TLE6251D

分类:
数据:

简介: The TLE6251D is a transceiver designed for CAN networks in automotive and industrial applications.

Additional Features: STB, Vio Bus Wake-Up Capability: Yes Features: STB Features: Vio Wake-up Inputs: Bus Wake-up Qualification: Automotive Standards: ISO11898-5 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 1.0MBit/s Type: CAN Family: Classical CAN 1MBit/s Base Product: CAN Classic Product Category: Transceivers Quiescent Current: < 30 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

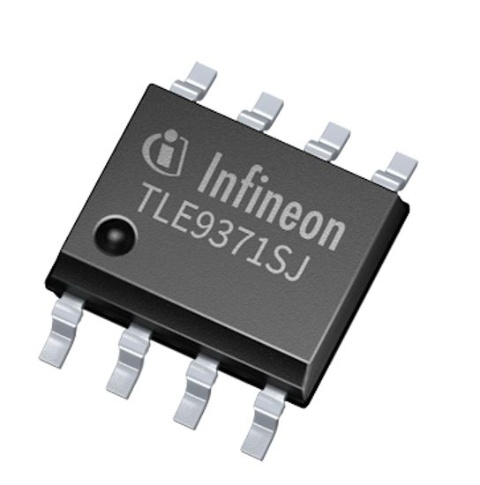

TLE9371SJ

分类:
数据:

简介: Infineon’s TLE937x family with up to 8MB/s flexible data rate

Package: DSO-8 Transmission Rate max: 8.0MBit/s Quiescent Current: < Max 20 µA on Vcc in Standby Bus Wake-Up Capability: Yes Additional Features: STB Standards: ISO11898-2 Base Product: TLE937x Features: STB Features: WK Product Category: Transceivers Qualification: Automotive Supply Voltage: 5 V Type: CAN FD Type: CAN Wake-up Inputs: Bus Wake-up Family: CAN Transceiver |Product Group|: CAN transceiver Currently planned availability until at least: 2038 Green: RoHS compliant Green: Halogen free

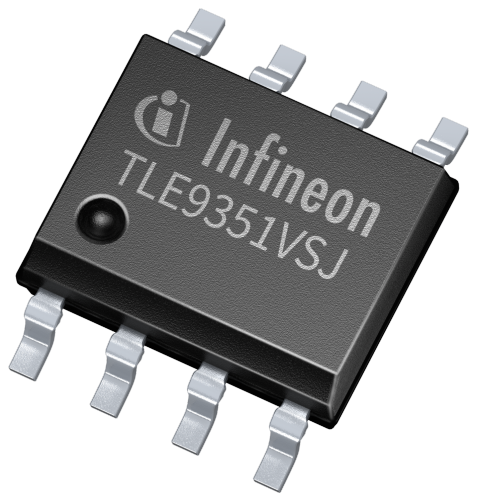

TLE9351VSJ

分类:
数据:

简介: The TLE9350XSJ is the Infineon High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Family: CAN FD 5MBit/s Bus Wake-Up Capability: Yes Additional Features: STB Additional Features: Vio Standards: ISO11898-2 Transmission Rate max: 5.0MBit/s Qualification: Automotive Wake-up Inputs: Bus Wake-up Base Product: TLE935x Features: STB Features: WK Features: Vio Product Category: Transceivers Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN FD Type: CAN Quiescent Current: < 18 µA at 5 V standby Language: IBIS |Product Group|: CAN transceiver 更多

Green: RoHS compliant Green: Halogen free

TLE9350VSJ

分类:
数据:

简介: The TLE9350XSJ is the Infineon High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Family: CAN FD 5MBit/s Bus Wake-Up Capability: No Additional Features: NEN Additional Features: Vio Standards: ISO11898-2 Transmission Rate max: 5.0MBit/s Qualification: Automotive Base Product: TLE935x Features: NEN Features: Vio Product Category: Transceivers Supply Voltage: 5 V Supply Voltage: 3.3 V Type: CAN FD Type: CAN Wake-up Inputs: None Quiescent Current: < 18 µA at 5 V standby Language: IBIS |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

TLE9250SJ

分类:
数据:

简介: The TLE9250SJ is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Wake-up Inputs: None Bus Wake-Up Capability: No Additional Features: NRM, NEN Standards: ISO11898-2 Family: CAN FD 5MBit/s Type: CAN FD Features: NEN Features: NRM Features: Receive Only Mode Qualification: Automotive Language: IBIS Product Category: Transceivers Base Product: TLE925x Supply Voltage: 5 V Type: CAN Quiescent Current: < 20 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

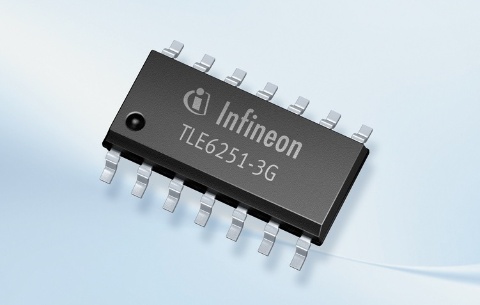

TLE6251-3G

分类:
数据:

简介: The TLE6251-3G with an excellent passive behavior in Power Down, extremely suitable for mixed power supply HS-CAN networks.

Additional Features: NSTB, WK, EN, NERR, INH Output, Vio, NSTB Bus Wake-Up Capability: Yes Features: NSTB Features: WK Features: EN Features: NERR Features: INH Output Features: Vio Wake-up Inputs: Wake-up Pin Wake-up Inputs: Bus Wake-up Qualification: Automotive Standards: ISO11898-5 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 1.0MBit/s Type: CAN Family: Classical CAN 1MBit/s Features: Receive Only Mode Base Product: CAN Classic Product Category: Transceivers 更多

Quiescent Current: < 30 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

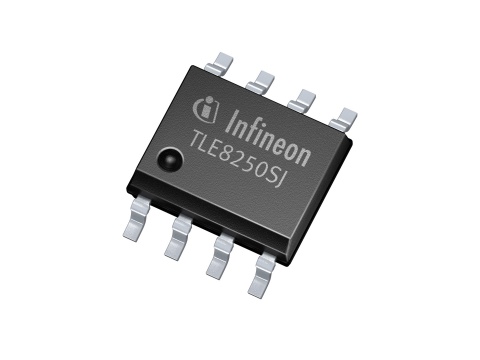

TLE8250SJ

分类:
数据:

简介: The TLE8250SJ is a transceiver designed for HS CAN networks in automotive and industrial applications.

Transmission Rate max: 2.0MBit/s Bus Wake-Up Capability: No Additional Features: NRM, NEN Wake-up Inputs: None Standards: ISO11898-2 Qualification: Automotive Features: NEN Supply Voltage: 5 V Type: CAN FD Type: CAN Family: CAN FD 2MBit/s Features: NRM Features: Receive Only Mode Base Product: TLE825x Product Category: Transceivers Quiescent Current: < 12 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free
