INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

TLE9250XSJ

分类:
数据:

简介: The TLE9250XSJ is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: No Additional Features: RM, Vio Wake-up Inputs: None Standards: ISO11898-2 Family: CAN FD 5MBit/s Type: CAN FD Features: RM Features: Receive Only Mode Features: Vio Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: N/A, no standby mode |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

TLE9350SJ

分类:
数据:

简介: The TLE9350SJ is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Family: CAN FD 5MBit/s Bus Wake-Up Capability: No Standards: ISO11898-2 Additional Features: NRM Additional Features: NEN Transmission Rate max: 5.0MBit/s Qualification: Automotive Features: Receive Only Mode Base Product: TLE935x Features: NEN Features: NRM Product Category: Transceivers Supply Voltage: 5 V Type: CAN FD Type: CAN Wake-up Inputs: None Quiescent Current: < 20 µA at 5 V standby Language: IBIS |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

TLE9251VSJ

分类:
数据:

简介: The TLE9251VSJ is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: STB, Vio Wake-up Inputs: Bus Wake-up Family: CAN FD 5MBit/s Features: STB Features: Vio Qualification: Automotive Standards: ISO11898-5 Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN FD Type: CAN Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: < 15 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

TLE9251SJ

分类:
数据:

简介: The TLE9251SJ is part of the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Family: CAN FD 5MBit/s Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: STB Standards: ISO11898-5 Language: IBIS Product Category: Transceivers Base Product: TLE925x Features: STB, Vcc Qualification: Automotive Supply Voltage: 5 V Type: CAN FD Type: CAN Wake-up Inputs: Bus Wake-up Quiescent Current: < 18 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

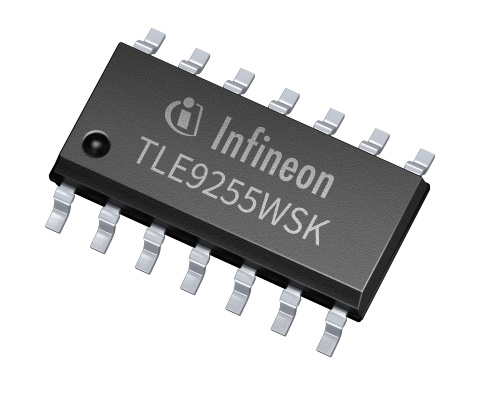

TLE9255WSK

分类:
数据:

简介: The TLE9255WLC is part of the Infineon CAN transceiver family being compliant to the new ISO11898-2 from 2016 and also to the former ISO11898-7

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Wake-up Inputs: Wake-up Pin Wake-up Inputs: Bus Wake-up Standards: ISO11898-6 Type: CAN PN Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN FD Type: CAN Language: IBIS Product Category: Transceivers Base Product: TLE9255 Additional Features: Partial Networking, WK, SPI, INH, Vio Features: Receive Only Mode,INH,Partial Networking,SPI,Vio,WK Quiescent Current: < 20 µA in sleep mode Family: CAN Transceiver Currently planned availability until at least: 2038 |Product Group|: CAN transceiver 更多

Green: RoHS compliant Green: Halogen free

TLE7251VSJ

分类:
数据:

简介: The TLE7251VSJ is a transceiver designed for HS CAN networks in automotive and industrial applications.

Qualification: Automotive Bus Wake-Up Capability: Yes Additional Features: STB, Vio Type: CAN FD Wake-up Inputs: Bus Wake-up Standards: ISO11898-5 Transmission Rate max: 2.0MBit/s Supply Voltage: 3.3 V Supply Voltage: 5 V Features: STB Features: Vio Type: CAN Family: CAN FD 2MBit/s Base Product: TLE725x Product Category: Transceivers Quiescent Current: < 14 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

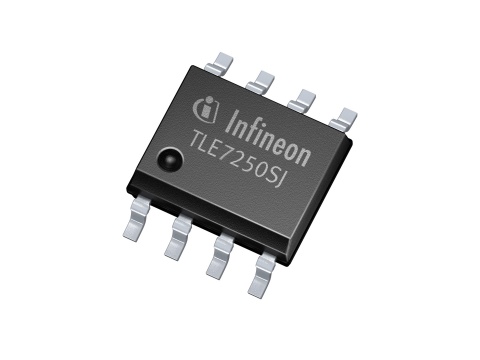

TLE7250SJ

分类:
数据:

简介: The TLE7250SJ is a transceiver designed for HS CAN networks in automotive and industrial applications.

Qualification: Automotive Bus Wake-Up Capability: No Additional Features: NRM, NEN Type: CAN FD Wake-up Inputs: None Standards: ISO11898-2 Transmission Rate max: 2.0MBit/s Features: NRM Features: NEN Supply Voltage: 5 V Type: CAN Family: CAN FD 2MBit/s Features: Receive Only Mode Base Product: TLE725x Product Category: Transceivers Quiescent Current: < 12 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

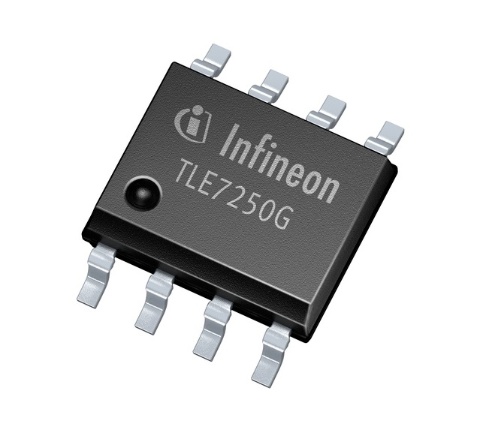

TLE7250G

分类:
数据:

简介: The TLE7250G is a transceiver designed for High Speed CAN networks in automotive and industrial applications.

Additional Features: NRM, NEN Bus Wake-Up Capability: No Features: Receive Only Mode Features: NEN Wake-up Inputs: None Qualification: Automotive Standards: ISO11898-2 Supply Voltage: 5 V Transmission Rate max: 1.0MBit/s Type: CAN Family: Classical CAN 1MBit/s Base Product: CAN Classic Product Category: Transceivers Quiescent Current: < 15 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

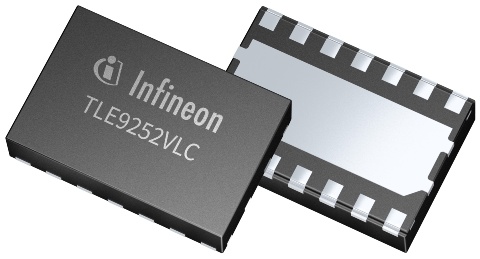

TLE9252VLC

分类:
数据:

简介: The TLE9252VLC is a transceiver designed for HS CAN networks with Flexible Data-rate up to 5 Mbit/s in automotive and industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: NSTB, WK, EN, NERR, INH, Vio, no SPLIT PIN Standards: ISO11898-2 Package: PG-TSON-14 Type: CAN FD Type: CAN Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Qualification: Automotive Features: NSTB Features: WK Features: EN Features: NERR Features: INH Output Features: Vio Features: Receive Only Mode Language: IBIS Product Category: Transceivers Base Product: TLE925x 更多

Supply Voltage: 5 V Quiescent Current: < 25 µA in sleep mode Family: CAN Transceiver Currently planned availability until at least: 2038 |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

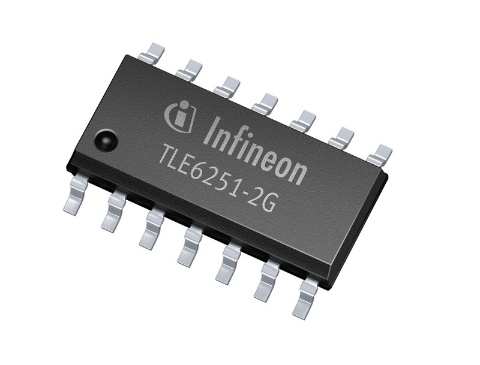

TLE6251-2G

分类:
数据:

简介: The TLE6251-2G with an excellent passive behavior in Power Down, extremely suitable for mixed power supply HS-CAN networks.

Additional Features: NSTB, WK, EN, NERR, INH, Vio Bus Wake-Up Capability: Yes Features: NSTB Features: WK Features: EN Features: NERR Features: INH Output Features: Vio Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Qualification: Automotive Standards: ISO11898-5 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 1.0MBit/s Type: CAN Family: Classical CAN 1MBit/s Features: Receive Only Mode Features: SPLIT PIN Base Product: CAN Classic 更多

Product Category: Transceivers Quiescent Current: < 30 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free
