INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

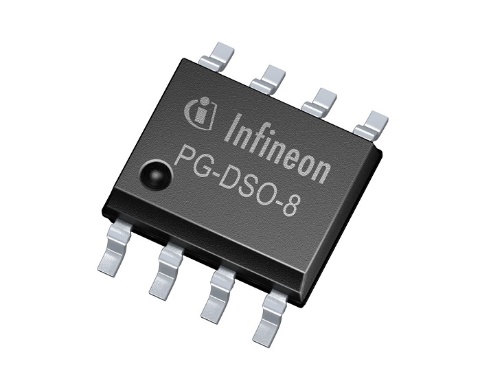

TLE6250G

分类:
数据:

简介: The HS CAN-transceiver TLE6250G is monolithic integrated circuits that are available is bare die as well as in a PG-DSO-8 package.

Additional Features: RM, INH Bus Wake-Up Capability: No Features: Receive Only Mode Features: INH Input Wake-up Inputs: None Qualification: Automotive Standards: ISO11898-2 Supply Voltage: 5 V Transmission Rate max: 1.0MBit/s Type: CAN Family: Classical CAN 1MBit/s Base Product: CAN Classic Product Category: Transceivers Quiescent Current: < 10 µA at 5 V standby |Product Group|: CAN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

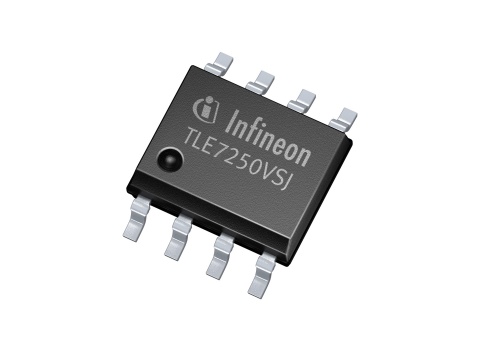

TLE7250VSJ

分类:
数据:

简介: The TLE7250VSJ is a transceiver designed for HS CAN networks in automotive and industrial applications.

Qualification: Automotive Bus Wake-Up Capability: No Additional Features: NEN; Vio Type: CAN FD Wake-up Inputs: None Standards: ISO11898-2 Transmission Rate max: 2.0MBit/s Features: NEN Features: Vio Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN Family: CAN FD 2MBit/s Base Product: TLE725x Product Category: Transceivers Quiescent Current: < 8 µA at 5 V standby |Product Group|: CAN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

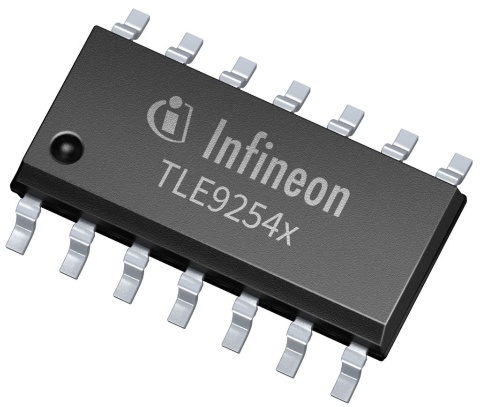

TLE9254SK

分类:
数据:

简介: TLE9254SK is a high speed Infineon dual CAN Transceiver with bus wake-up used in automotive as well as industrial HS CAN applications

|Product Group|: High Speed Family: CAN FD 5MBit/s Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: WK Standards: ISO11898-2 Qualification: Automotive Type: CAN FD Features: WK Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: 11 µA per channel at 105°C

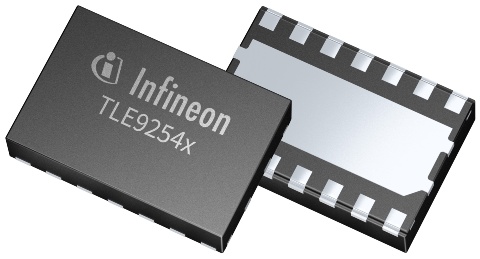

TLE9254LC

分类:
数据:

简介: TLE9254LC is a high speed Infineon dual CAN Transceiver with bus wake-up used in automotive as well as industrial HS CAN applications

Family: CAN FD 5MBit/s Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: WK Standards: ISO11898-2 Qualification: Automotive Type: CAN FD Features: WK Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: 11 µA per channel at 105°C |Product Group|: CAN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

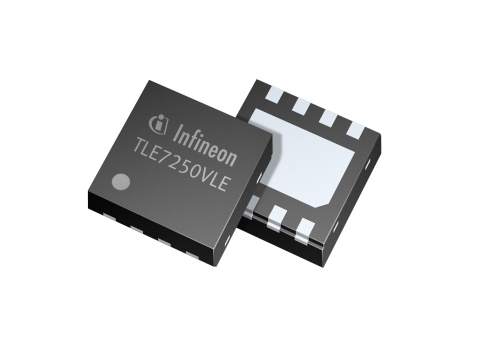

TLE7250VLE

分类:
数据:

简介: The TLE7250VLE is a transceiver designed for HS CAN networks in automotive and industrial applications.

Qualification: Automotive Bus Wake-Up Capability: No Additional Features: NEN; Vio Type: CAN FD Wake-up Inputs: None Standards: ISO11898-2 Transmission Rate max: 2.0MBit/s Features: NEN Features: Vio Features: Tiny Package Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN Family: CAN FD 2MBit/s Base Product: TLE725x Product Category: Transceivers Quiescent Current: < 8 µA at 5 V standby |Product Group|: CAN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

TLE9254VSK

分类:
数据:

简介: The TLE9254VSK is a high speed Infineon dual CAN Transceiver with bus wake-up used in automotive as well as industrial applications.

Family: CAN FD 5MBit/s Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: Yes Additional Features: WK Additional Features: Vio Standards: ISO11898-2 |Product Group|: High Speed Qualification: Automotive Type: CAN FD Features: WK Features: Vio Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: 11 µA per channel at 105°C

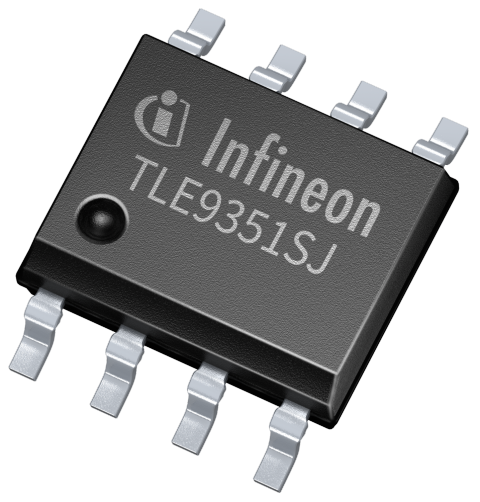

TLE9351SJ

分类:
数据:

简介: The TLE9351SJ is part of the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Family: CAN FD 5MBit/s Bus Wake-Up Capability: Yes Additional Features: STB Standards: ISO11898-2 Transmission Rate max: 5.0MBit/s Wake-up Inputs: Bus Wake-up Qualification: Automotive Base Product: TLE935x Features: STB Features: WK Product Category: Transceivers Supply Voltage: 5 V Type: CAN FD Type: CAN Quiescent Current: < 20 µA at 5 V standby Language: IBIS |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

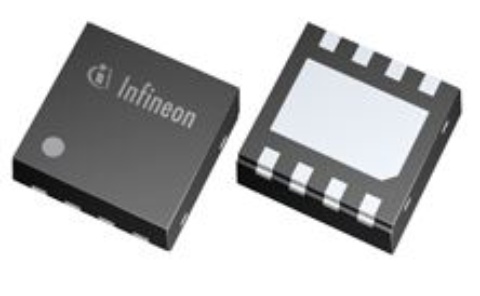

TLE7257LE

分类:
数据:

简介: The TLE7257LE is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features.

Additional Features: INH, EN Bus Wake-Up Capability: Yes Features: Tiny Package Features: EN Features: INH Output Wake-up Inputs: Bus Wake-up Qualification: Automotive Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Family: EiceDRIVER™ isolated gate driver ICs for EV Green: RoHS compliant Green: Halogen free

TLE7259-3LE

分类:
数据:

简介: The TLE7259-3LE is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features.

Additional Features: INH, EN, WK Bus Wake-Up Capability: Yes Features: INH Output Features: EN Features: WK Features: Tiny Package Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Qualification: Automotive Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode Family: LIN Transceiver Currently planned availability until at least: 2037 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

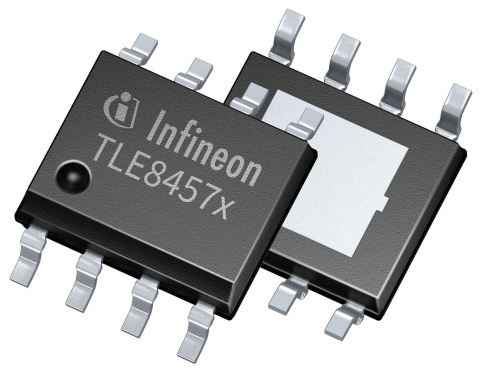

TLE8457CSJ

分类:
数据:

简介: The TLE8457CSJ is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.

Additional Features: 5.0 V output VREG, EN, RESET Bus Wake-Up Capability: Yes Features: Integrated voltage regulator Features: EN Qualification: Automotive Quiescent Current: < 10 µA sleep mode Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Output Current: 70.0mA Transmission Rate max: 20.0kBit/s Type: LIN Wake-up Inputs: Bus wake-up Supply Voltage: 5 V Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free
