INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

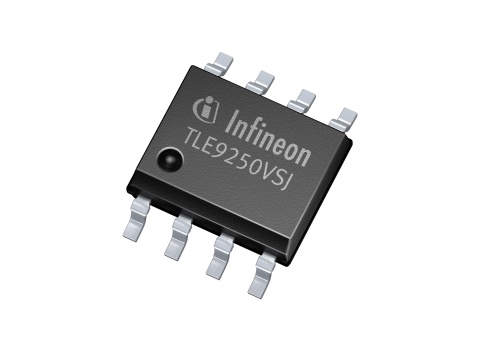

TLE9250VSJ

分类:
数据:

简介: The TLE9250VSJ is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.

Transmission Rate max: 5.0MBit/s Bus Wake-Up Capability: No Additional Features: NEN; Vio Wake-up Inputs: None Standards: ISO11898-2 Family: CAN FD 5MBit/s Type: CAN FD Features: NEN Features: Vio Qualification: Automotive Supply Voltage: 3.3 V Type: CAN Supply Voltage: 5 V Language: IBIS Product Category: Transceivers Base Product: TLE925x Quiescent Current: < 15 µA at 5 V standby |Product Group|: CAN transceiver Green: RoHS compliant Green: Halogen free

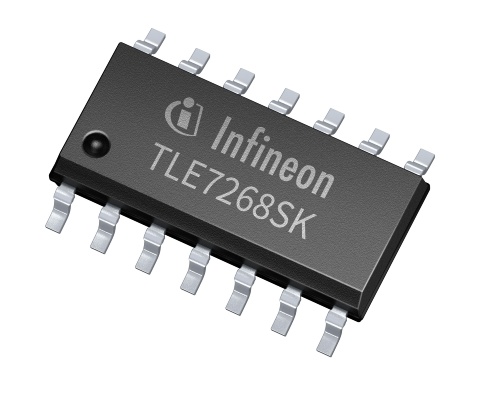

TLE7268SK

分类:
数据:

简介: The TLE7268SK is Infineon’s second generation DUAL LIN transceiver designed for data transmission rates up to 20 kbps.

Transmission Rate max: 20.0kBit/s Quiescent Current: < 20 µA sleep mode Bus Wake-Up Capability: Yes Wake-up Inputs: Bus Wake-up Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Type: LIN Features: Multiple Channel Features: INH Features: EN Features: 2 x LIN trx Additional Features: Multiple Channel, 2 x LIN trx, INH, EN Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

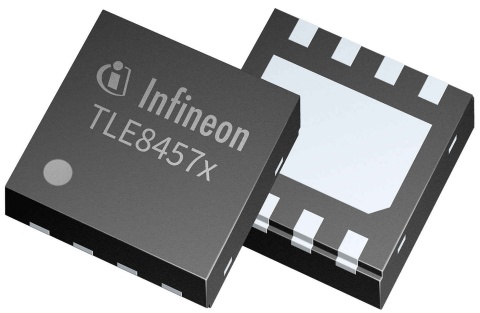

TLE8457ALE

分类:
数据:

简介: The TLE8457ALE is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.

Transmission Rate max: 20.0kBit/s Quiescent Current: < 10 µA sleep mode Bus Wake-Up Capability: Yes Additional Features: 5.0 V output VREG, EN, RESET Wake-up Inputs: Bus wake-up Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Qualification: Automotive Type: LIN Features: Integrated voltage regulator Features: EN Supply Voltage: 5 V Output Current: 70.0mA Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

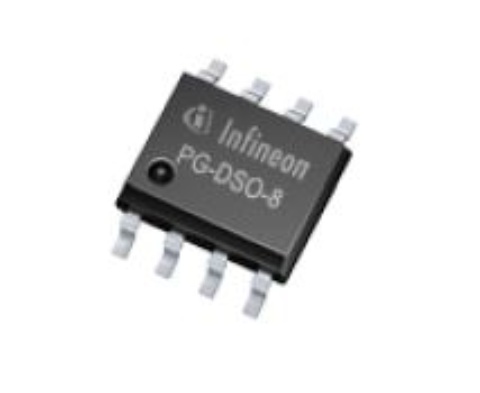

TLE7257SJ

分类:
数据:

简介: The TLE7257SJ is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features.

Additional Features: INH, EN Bus Wake-Up Capability: Yes Features: INH Output Features: EN Wake-up Inputs: Bus Wake-up Qualification: Automotive Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

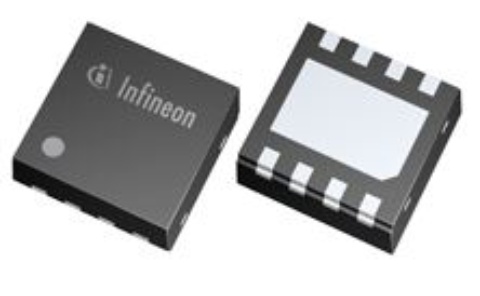

TLE7258LE

分类:
数据:

简介: The TLE7258LE is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features.

Additional Features: INH Additional Features: EN Bus Wake-Up Capability: Yes Features: INH Output Features: EN Features: Tiny Package Wake-up Inputs: Bus Wake-up Qualification: Automotive Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602 Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode Supply Voltage: 3.3 V Supply Voltage: 5 V Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

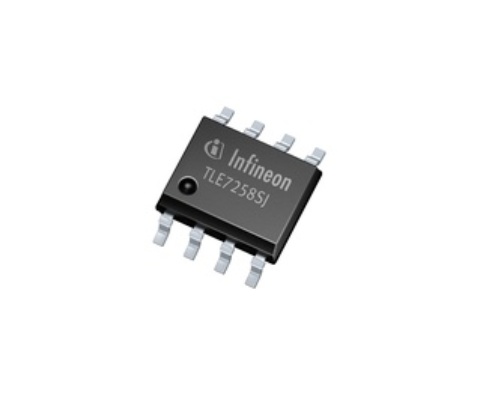

TLE7258SJ

分类:
数据:

简介: The TLE7258SJ is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features.

TLE7259-3GE

分类:
数据:

简介: The TLE7259-3GE is a transceiver for the Local Interconnect Network (LIN) with integrated Wake-Up and protection features.

Additional Features: INH, EN, WK Bus Wake-Up Capability: Yes Features: INH Output Features: EN Features: WK Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Qualification: Automotive Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode Family: LIN Transceiver Currently planned availability until at least: 2037 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

TLE8457DLE

分类:
数据:

简介: The TLE8457DLE is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.

Additional Features: 3.3 V output VREG, EN, RESET Bus Wake-Up Capability: Yes Features: Integrated voltage regulator Features: EN Qualification: Automotive Quiescent Current: < 10 µA sleep mode Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Output Current: 70.0mA Transmission Rate max: 20.0kBit/s Type: LIN Wake-up Inputs: Bus wake-up Supply Voltage: 3.3 V Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

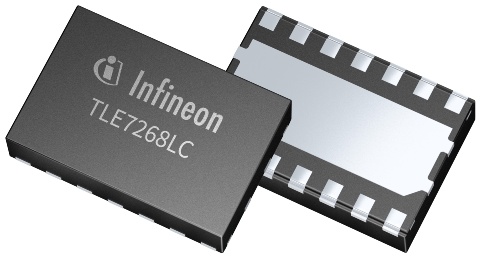

TLE7268LC

分类:
数据:

简介: The TLE7268LC is Infineon’s second generation DUAL LIN transceiver designed for data transmission rates up to 20 kbps.

Transmission Rate max: 20.0kBit/s Quiescent Current: < 20 µA sleep mode Bus Wake-Up Capability: Yes Additional Features: 2 x LIN trx, INH, EN Features: Multiple Channel Features: INH Features: EN Wake-up Inputs: Bus Wake-up Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Type: LIN Features: 2 x LIN trx Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

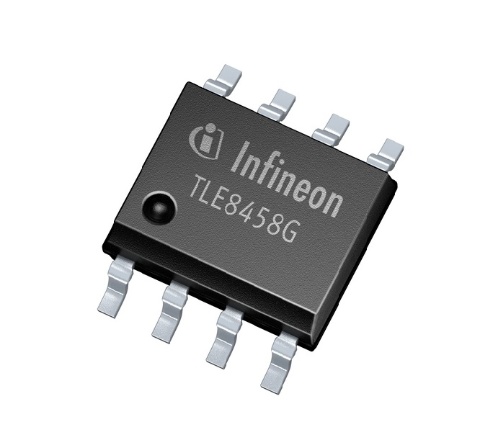

TLE8458G

分类:
数据:

简介: The TLE8458G integrate a low drop voltage regulator and a LIN transceiver on one monolithic circuit.

Package: PG-DSO-8 Bus Wake-Up Capability: Yes Features: Integrated Voltage Regulator Features: EN Features: WK Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Qualification: Automotive Standards: LIN 1.2, 1.3, 2.0, 2.1, SAEJ2602 Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode Additional Features: 5.0 V VREG, EN, WK Output Current: 50.0mA |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free
