INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

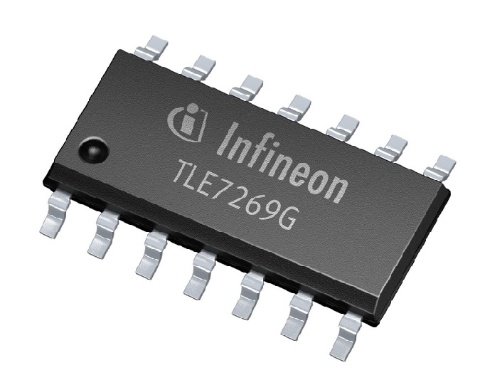

TLE7269G

分类:
数据:

简介: The TLE7269G is a transceiver for the Local Interconnect Network (LIN) with integrated Wake-Up and protection features.

Package: PG-DSO-14 Additional Features: 2 x LIN trx, INH, EN, WK, Vio Bus Wake-Up Capability: Yes Features: Multiple Channel Features: INH Output Features: 2 x LIN TrX Features: EN Features: WK Features: Vio Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Qualification: Automotive Standards: LIN 1.2, 1.3, 2.0, 2.1, SAEJ2602 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

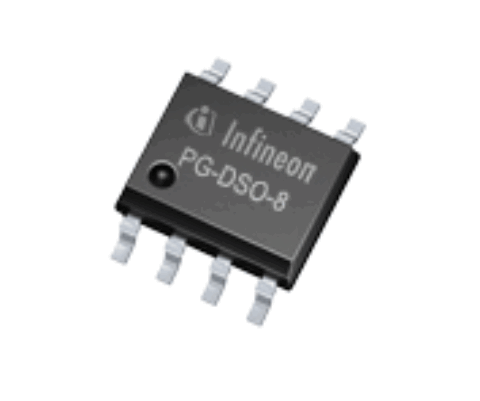

TLE6258-2G

分类:
数据:

简介: The single wire transceiver TLE6258-2G is a monolithic IC working as an interface between the protocol controller and the physical bus.

Additional Features: ENN, Vcc Bus Wake-Up Capability: Yes Features: ENN Features: Vcc Wake-up Inputs: Bus Wake-up Qualification: Automotive Standards: ISO9141, LIN 1.2, 1.3, 2.0, 2.1 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 40 µA standby mode |Product Group|: LIN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

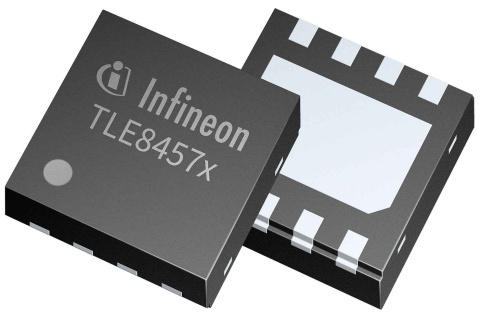

TLE8457ASJ

分类:
数据:

简介: The TLE8457ASJ is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.

Transmission Rate max: 20.0kBit/s Quiescent Current: < 10 µA sleep mode Bus Wake-Up Capability: Yes Additional Features: 5.0 V output VREG, EN, RESET Wake-up Inputs: Bus wake-up Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Qualification: Automotive Type: LIN Package: PG-DSO-8 Supply Voltage: 5 V Features: Integrated voltage regulator Output Current: 70.0mA Features: EN Features: Integrated voltage regulator |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

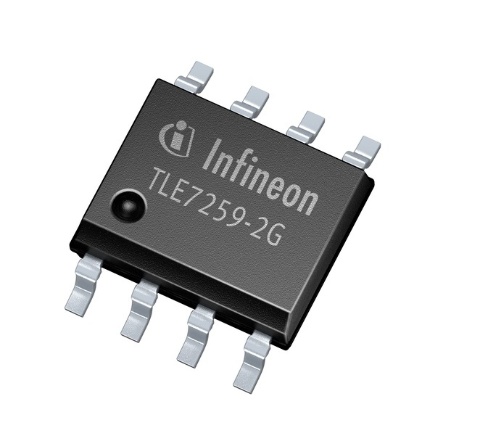

TLE7259-2GE

分类:
数据:

简介: The TLE7259-2GE is a transceiver for the Local Interconnect Network (LIN) with integrated Wake-Up and protection features.

Package: PG-DSO-8 Additional Features: INH, EN, WK Bus Wake-Up Capability: Yes Features: INH Output Features: EN Features: WK Wake-up Inputs: Bus Wake-up Wake-up Inputs: Wake-up Pin Qualification: Automotive Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602 Supply Voltage: 3.3 V Supply Voltage: 5 V Transmission Rate max: 20.0kBit/s Type: LIN Quiescent Current: < 10 µA sleep mode |Product Group|: LIN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

S6BT112A01SSBB002

分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路
数据:

Operating Temperature: None°C Operating Voltage: NoneV Output Channels: 1.0 Output Voltage: NoneV Peak Reflow Temp: 260.0°C Publish in NPSG: Y Publish in PSG: N Temperature: None°C Lead Ball Finish: Pure Sn

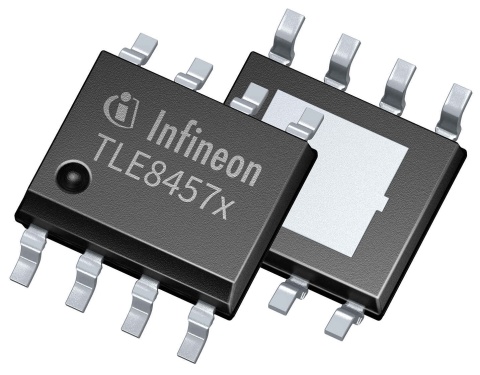

TLE8457BSJ

分类:
数据:

简介: The TLE8457BSJ is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.

Transmission Rate max: 20.0kBit/s Quiescent Current: < 10 µA sleep mode Bus Wake-Up Capability: Yes Additional Features: 3.3 V output VREG, EN, RESET Wake-up Inputs: Bus wake-up Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Features: Integrated voltage regulator Package: PG-DSO-8 Qualification: Automotive Type: LIN Supply Voltage: 3.3 V Features: EN Output Current: 70.0mA |Product Group|: LIN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

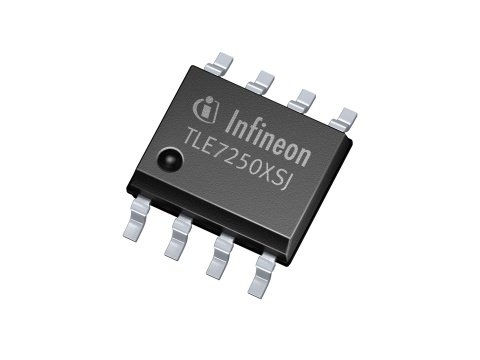

TLE7250XSJ

分类:
数据:

简介: The TLE7250XSJ is a transceiver designed for HS CAN networks in automotive and industrial applications.

Qualification: Automotive Bus Wake-Up Capability: No Additional Features: RM; Vio Type: CAN FD Wake-up Inputs: None Standards: ISO11898-2 Transmission Rate max: 2.0MBit/s Supply Voltage: 3.3 V Supply Voltage: 5 V Features: RM Type: CAN Family: CAN FD 2MBit/s Features: Receive Only Mode Features: Vio Base Product: TLE725x Product Category: Transceivers Quiescent Current: N/A, no standby mode |Product Group|: CAN transceiver Currently planned availability until at least: n.a Green: RoHS compliant Green: Halogen free

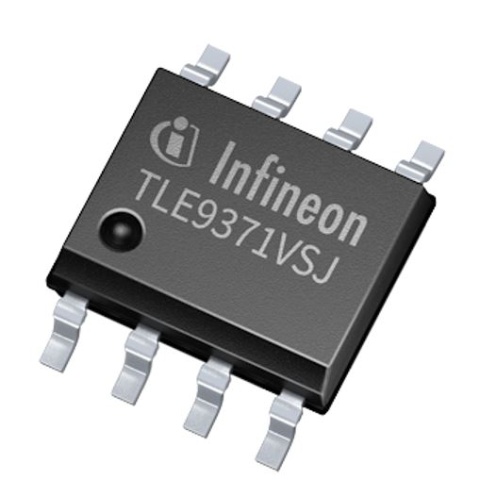

TLE9371VSJ

分类:
数据:

简介: Infineon’s TLE937x family with up to 8MB/s flexible data rate

Transmission Rate max: 8.0MBit/s Quiescent Current: < Max 20 µA on Vcc in Standby Bus Wake-Up Capability: Yes Additional Features: STB, Vio Standards: ISO11898-2 Package: DSO-8 Base Product: TLE937x Features: STB Features: WK Features: Vio Product Category: Transceivers Qualification: Automotive Supply Voltage: 3.3 V Supply Voltage: 5 V Type: CAN FD Type: CAN Wake-up Inputs: Bus Wake-up Family: CAN Transceiver |Product Group|: CAN transceiver Currently planned availability until at least: 2038 更多

Green: RoHS compliant Green: Halogen free

TLE8457BLE

分类:
数据:

简介: The TLE8457BLE is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.

Transmission Rate max: 20.0kBit/s Quiescent Current: < 10 µA sleep mode Bus Wake-Up Capability: Yes Additional Features: 3.3 V output VREG, EN, RESET Wake-up Inputs: Bus wake-up Standards: LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4 Features: Integrated voltage regulator Qualification: Automotive Type: LIN Supply Voltage: 3.3 V Features: EN Output Current: 70.0mA Family: LIN Transceiver Currently planned availability until at least: 2038 |Product Group|: LIN transceiver Green: RoHS compliant Green: Halogen free

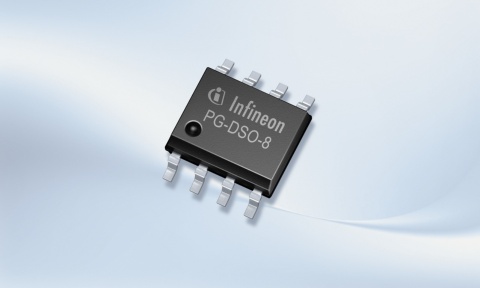

IFX1050G

分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器
数据:

简介: The IFX1050G is optimized for high speed differential mode data transmission in industrial applications and it is compliant to ISO11898-2.

Peak Reflow Temp: None°C Additional Features: RM, INH Product ID: SP000613990 Moisture Sensitivity Level: 3 Number Reflow: 3 Bus Wake-Up Capability: No Features: INH Output Features: Receive Only Mode Wake-up Inputs: None Qualification: Industrial Standards: ISO11898-2 Supply Voltage: 5 V Transmission Rate: NoneMBit/s Type: CAN Budgetary Price €/1k: 0.37
