INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

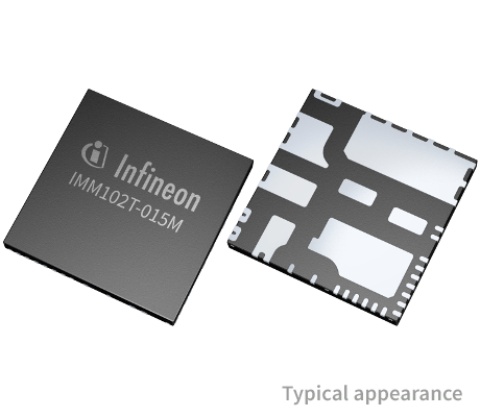

IMM102T-015M

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: IPM with PMSM/BLDC motor & PFC controller and MOSFET power stage

Control Option: 1 motor + PFC Integration Level: IPM + MCE Moisture Sensitivity Level: 3 Package: PG-IQFN-38-1 Processor Type: MCE 2.0 Type of Memory: Flash Language: PLECS Product Category: Motor Control ICs

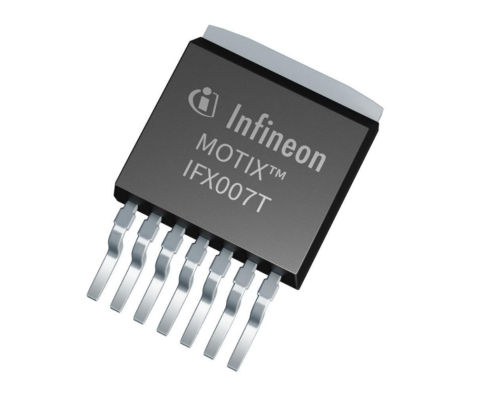

IFX007T

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The MOTIX™ IFX007T is an integrated high current half bridge for motor drive applications

I[q]: 7.0µA R[DS (on) ] (multiple): 10.0 I[D(lim)](multiple): 77.0 A Inhibit: Yes Mounting: SMT I[D(lim)](multiple): 55.0 A Normal Operating Voltage Range: 24 V Protect: Overtemperature-Protection Protect: Overcurrent-Protection Diagnostics: Current Sense Diagnostics: Overtemperature-Protection Diagnostics: Overcurrent-Protection-failure flag Language: SPICE Protect: Undervoltage Protection Temperature: - 40°C - 150°C Operating Voltage max: 40.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2033 Classification: JESD47I RDSON_H(typ): 5.3mΩ 更多

RDSON_L(typ): 4.7mΩ Over current detection min: 55.0A Supply Voltage absolute max ratings: 40.0V

BTN8982TA

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The MOTIX™ BTN8982TA is an integrated high current half bridge for motor drive applications

I[q]: 7.0µA I[D(lim)](multiple): 77.0A Inhibit: Yes Mounting: SMT R[DS (on) ] (multiple): 10.0 I[D(lim)](multiple): 55.0 A Normal Operating Voltage Range: 8 V - 18 V Protect: Overtemperature-Protection Protect: Overcurrent-Protection Diagnostics: Current Sense Diagnostics: Overtemperature-Protection Diagnostics: Overcurrent-Protection-failure flag Language: SPICE Protect: Undervoltage Protection Temperature: - 40°C - 150°C Operating Voltage max: 40.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2030 RDSON_H(typ): 5.3mΩ RDSON_L(typ): 4.7mΩ 更多

Over current detection min: 55.0A Supply Voltage absolute max ratings: 40.0V

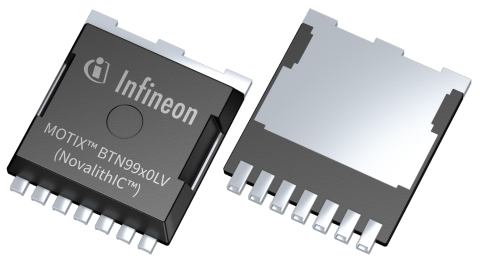

BTN9990LV

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The MOTIX™ BTN9990LV is an integrated high current half bridge with low path resistance for motor drive applications.

R[DS (on) ] (multiple): 5.3 mΩ I[D(lim)](multiple): min 75.0 A I[D(lim)](multiple): typ. 95.0 A I[D(lim)](multiple): max 115.0 A I[q] max: 3.3µA Operating Voltage max: 40.0V Normal Operating Voltage Range: 8 V - 18 V Technology: MOTIX™ Bridge Diagnostics: Current Sense Diagnostics: Overtemperature-Protection Diagnostics: Overcurrent-Protection-failure flag Protect: Overtemperature-Protection Protect: Overcurrent-Protection Protect: Undervoltage Protection Currently planned availability until at least: 2037 Temperature: - 40°C - 150°C Classification: ISO26262-ready RDSON_H(typ): 3.5mΩ RDSON_L(typ): 1.8mΩ Over current detection min: 5.0A Supply Voltage absolute max ratings: 40.0V

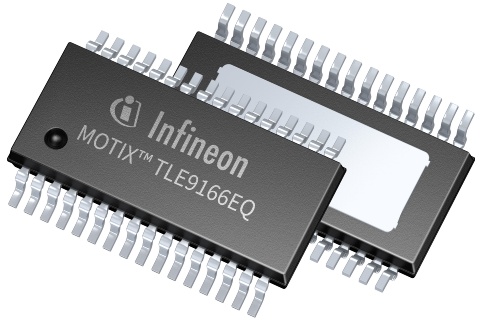

TLE9166EQ

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: MOTIX™ TLE9166EQ: Powerful, versatile multi half-bridge IC for door control modules and zone controllers, offering top performance and flexibility.

Normal Operating Voltage Range: 5.5 V to 20 V Technology: MOTIX™ Bridge Number of Half-Bridges: 6.0 Number of gate drivers: 2.0 Number of high-sides: 5.0 Number of low-sides: 1.0 High-side output current max: 1.5A Low-side output current max: 0.5A Half-bridge output current max: 7.0A Diagnostics: OC, OL, TW, TSD, PSF, SPI_ERR, NPOR Protect: SC, OT, UV, OV Operating Voltage max: 20.0V Temperature: - 40°C - 150°C Currently planned availability until at least: 2038 Supply Voltage absolute max ratings: 40.0V

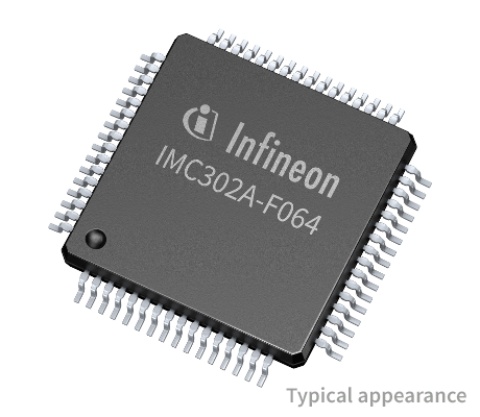

IMC302A-F064

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: PMSM/BLDC motor & PFC controller with additional 32-bit microcontroller

Package: PG-LQFP-64 Processor Type: MCE 2.0 + Arm® Cortex®-M0 Control Option: 1 motor + PFC Description: MCE 2.0 with scripting and additional MCU, boost /totem pole PFC Integration Level: MCE + MCU Moisture Sensitivity Level: 3 Type of Memory: Flash

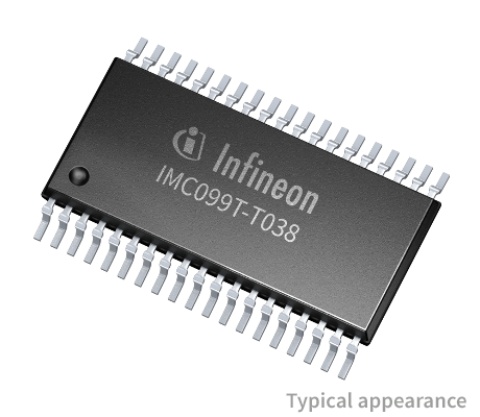

IMC099T-T038

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: PMSM/BLDC motor controller

Control Option: 1 motor Description: MCE 2.0 without scripting, low cost package Integration Level: MCE Moisture Sensitivity Level: 3 Package: PG-TSSOP-38 Processor Type: MCE 2.0 Type of Memory: Flash

TLE94104EP

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The MOTIX™ TLE9410EP is a protected four-fold half-bridge driver designed especially for automotive motion control applications

R[DS (on) ] (multiple): 850 mOhm I[D(lim)](multiple): 4 x 0.9A I[q]: 0.2µA Diagnostics: OC, TW, TSD, PSF, OL, SPI_ERR, NPOR Protect: SC, OT, UV, OV, OL Mounting: SMT Inhibit: Yes Temperature: - 40°C - 150°C Operating Voltage max: 20.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2037 RDSON_H(typ): 850.0mΩ RDSON_L(typ): 850.0mΩ Over current detection min: 0.9A Supply Voltage absolute max ratings: 40.0V

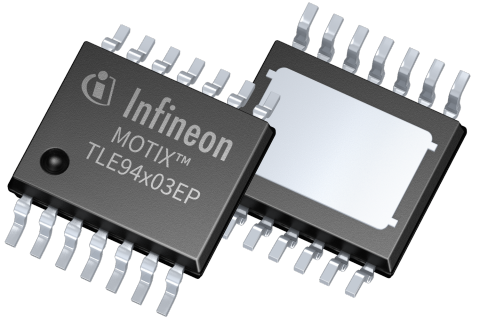

TLE94103EP

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The MOTIX™ TLE94103EP is a protected three-fold half-bridge driver designed to drive small DC motors in automotive applications

R[DS (on) ] (multiple): 850 mOhm I[D(lim)](multiple): 3 x 0.9A I[q]: 0.2µA Diagnostics: OC, TW, TSD, PSF, OL, SPI_ERR, NPOR Protect: SC, OT, UV, OV, OL Mounting: SMT Inhibit: Yes Temperature: - 40°C - 150°C Operating Voltage max: 20.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2037 RDSON_H(typ): 850.0mΩ RDSON_L(typ): 850.0mΩ Over current detection min: 0.9A Supply Voltage absolute max ratings: 40.0V

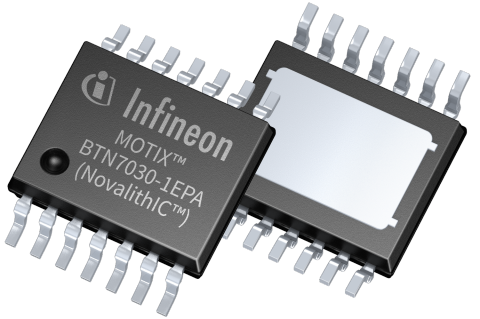

BTN7030-1EPA

分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
数据:

简介: The MOTIX™ BTN7030-1EPA is a protected half-bridge with integrated driver.

Diagnostics: Current Sense Diagnostics: Open Load Detection Diagnostics: Open load in OFF Detection Diagnostics: Overcurrent-Protection Diagnostics: Overtemperature-Protection Normal Operating Voltage Range: 6 V - 18 V Mounting: SMT Inhibit: Yes I[D(lim)](multiple): 17.0 A I[D(lim)](multiple): 14.0 A I[q]: 1.0µA R[DS (on) ] (multiple): 32 Protect: Overtemperature-Protection Protect: Overcurrent-Protection Protect: Undervoltage-Protection Protect: Cross-Current Protection Protect: Overvoltage-Protection Temperature: - 40°C - 150°C Operating Voltage max: 28.0V Technology: MOTIX™ Bridge 更多

Language: PSpice Currently planned availability until at least: 2038 RDSON_H(typ): 12.0mΩ RDSON_L(typ): 20.0mΩ Over current detection min: 14.0A Supply Voltage absolute max ratings: 35.0V
