INFINEON

Infineon 英飞凌专注于迎接现代社会的三大科技挑战：高能效、移动性和安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

SAK-TC299TP-128F300SBC

分类:
数据:

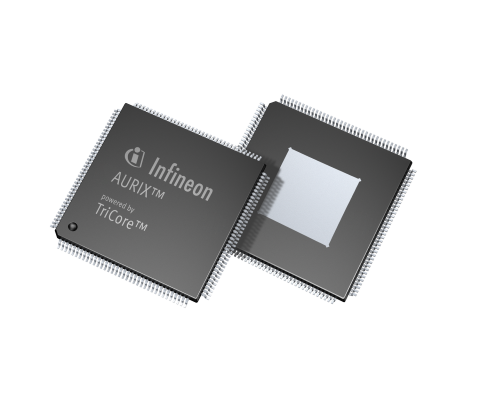

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package

SRAM (incl. Cache): 728.0kByte CAN Nodes: 6 A/D Input Lines(incl. FADC): 94 Program Memory: 8.0MByte Number of ADC Modules: 21.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 128 External Bus Interface: 1 Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no On-chip Voltage Regulator: yes Real Time Clock: yes Floating Point Unit: yes Oscillator Watchdog: yes Watchdog Timer: yes 更多

Additional Features: Hardware Security Module Additional Features: Ethernet Additional Features: Safety IO Monitor LIN: 6.0 SPI: 4.0 eMMC: no # of cores / lockstep cores: 3/1 Hardware Accelerator: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO26262-compliant Budgetary Price €/1k: 31.13 Budgetary Price €/1k: 31.13 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC299TX-128F300NBC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package

SRAM (incl. Cache): 2776.0kByte CAN Nodes: 6 A/D Input Lines(incl. FADC): 94 Program Memory: 8.0MByte Number of ADC Modules: 21.0 EEPROM Emulation: yes Instruction Width([bits]): 32/16 DMA Channels: 128 External Bus Interface: 1 Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes Floating Point Unit: yes 更多

Additional Features: Lockstep Additional Features: Hardware Security Module eMMC: no SPI: 4.0 LIN: 5.0 # of cores / lockstep cores: 3/1 Hardware Accelerator: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 45.54 ASIL/SIL support: ASIL-D/SIL-3

SAK-TC299TX-128F300SBC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package

SRAM (incl. Cache): 2776.0kByte CAN Nodes: 6 A/D Input Lines(incl. FADC): 94 Program Memory: 8.0MByte Number of ADC Modules: 21.0 EEPROM Emulation: yes Type of Serial I/O Interfaces: ASCLIN Type of Serial I/O Interfaces: CAN / CAN FD Type of Serial I/O Interfaces: QSPI Type of Serial I/O Interfaces: FlexRay™ Type of Serial I/O Interfaces: I²C Type of Serial I/O Interfaces: SENT (Single Edge Nibble Transmission) Type of Serial I/O Interfaces: PSI5 Type of Serial I/O Interfaces: PSI5S Type of Serial I/O Interfaces: HSCT Type of Serial I/O Interfaces: MSC (MicroSecond Channel) Type of Serial I/O Interfaces: CIF Type of Serial I/O Interfaces: Ethernet MAC Instruction Width([bits]): 32/19 DMA Channels: 128 更多

External Bus Interface: 1 Fast Flash Programming: no DSP Functionality: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V I/O Operation Voltages: 5.0V Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes Floating Point Unit: yes Additional Features: Lockstep Additional Features: Hardware Security Module Additional Features: Safety IO Monitor Additional Features: Ethernet Additional Features: Extended SRAM LIN: 6.0 SPI: 4.0 eMMC: no # of cores / lockstep cores: 3/1 Hardware Accelerator: no Type of Memory: Flash Temperature: -40°C - +125°C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 42.9 ASIL/SIL support: ASIL-D/SIL-3

SAL-TC212L-8F133NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 0.5MB of Flash and a TQFP-80 package

SRAM (incl. Cache): 56.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 14 Program Memory: 0.5MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Floating Point Unit: yes DSP Functionality: yes # of cores / lockstep cores: 1/1 Hardware Accelerator: no 更多

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +150 °C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 7.98 ASIL/SIL support: ASIL-D/SIL-3

SAL-TC213L-8F133NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 0.5MB and a TQFP-100 package

SRAM (incl. Cache): 56.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 0.5MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes I/O Operation Voltages: 3.3V Floating Point Unit: yes DSP Functionality: yes # of cores / lockstep cores: 1/1 Hardware Accelerator: no 更多

eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +150 °C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 8.38 ASIL/SIL support: ASIL-D/SIL-3

SAL-TC222L-16F133NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 1MB of Flash and a TQFP-80 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 14 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes # of cores / lockstep cores: 1/1 Hardware Accelerator: no 更多

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +150 °C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 8.38 ASIL/SIL support: ASIL-D/SIL-3

NONE

分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 1MB of Flash and a TQFP-100 package

SAL-TC223S-16F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 1MB of Flash and a TQFP-100 package

SRAM (incl. Cache): 96.0kByte CAN Nodes: 3 A/D Input Lines(incl. FADC): 24 Program Memory: 1.0MByte Number of ADC Modules: 2.0 Instruction Width([bits]): 32/16 DMA Channels: 16 External Bus Interface: no Fast Flash Programming: no Touch/LED Matrix Control: no Watchdog Timer: yes Real Time Clock: yes Oscillator Watchdog: yes On-chip Voltage Regulator: yes On-chip Clock Generation: yes Floating Point Unit: yes I/O Operation Voltages: 3.3V DSP Functionality: yes # of cores / lockstep cores: 1/0 Hardware Accelerator: no 更多

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +150 °C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 6.72 ASIL/SIL support: ASIL-B/SIL-2

SAL-TC224L-16F133FAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 1MB of Flash and a TQFP-144 package

eMMC: no SPI: 4.0 LIN: 2.0 Type of Memory: Flash Temperature: -40°C - +150 °C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 7.85 ASIL/SIL support: ASIL-D/SIL-3

SAL-TC224L-16F133NAC

分类:
数据:

简介: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133MHz, up to 1MB of Flash and a TQFP-144 package

LIN: 2.0 SPI: 4.0 eMMC: no Type of Memory: Flash Temperature: -40°C - +150 °C Family: AURIX™ 1G Classification: ISO 26262-compliant Budgetary Price €/1k: 9.28 ASIL/SIL support: ASIL-D/SIL-3
