ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

ADPA9007ACGZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: DC to 28 GHz, GaAs, pHEMT, 2 W Power Amplifier

RF Primary Function: Power Amp Freq Response RF (min): 100kHz Freq Response RF (max): 28GHz Gain dB (typ): 12.5dB OP1dB (typ): 33dBm NF (typ): 4dB OIP3 (typ): 45dBm Vs (typ): 15V Is (typ): 500mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 16V Specified at Freq: 16GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9007ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9007ACGZN)mm
Launch Date: 2023-12-18 EP: No

ADL7078ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 高耐受能力、低噪声放大器，1 GHz至20 GHz

RF Primary Function: LNA, LNA High Survivability Freq Response RF (min): 1GHz Freq Response RF (max): 20GHz Gain dB (typ): 13dB OP1dB (typ): 16.5dBm NF (typ): 4.4dB OIP3 (typ): 28dBm Vs (typ): 5V Is (typ): 175mA Package: 24-Lead LFCSP (4mm x 4mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4.75V Vs+ (max): 5.25V Gain dB (min): 11dB Specified at Freq: 18GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 16mm² (24-Lead LFCSP (4mm x 4mm w/ EP)) (ADL7078ACPZN)mm² Package Height: 0.8mm (24-Lead LFCSP (4mm x 4mm w/ EP)) (ADL7078ACPZN)mm Launch Date: 2023-10-26 EP: No

ADL7078ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 高耐受能力、低噪声放大器，1 GHz至20 GHz

RF Primary Function: LNA, LNA High Survivability Freq Response RF (min): 1GHz Freq Response RF (max): 20GHz Gain dB (typ): 13dB OP1dB (typ): 16.5dBm NF (typ): 4.4dB OIP3 (typ): 28dBm Vs (typ): 5V Is (typ): 175mA Package: 24-Lead LFCSP (4mm x 4mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4.75V Vs+ (max): 5.25V Gain dB (min): 11dB Specified at Freq: 18GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 16mm² (24-Lead LFCSP (4mm x 4mm w/ EP)) (ADL7078ACPZN)mm² Package Height: 0.8mm (24-Lead LFCSP (4mm x 4mm w/ EP)) (ADL7078ACPZN)mm Launch Date: 2023-10-26 EP: No

HMC8414ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 具有旁路开关的低噪声放大器，0.1 GHz至10 GHz

RF Primary Function: LNA, LNA with Bypass Switch Freq Response RF (min): 100MHz Freq Response RF (max): 10GHz Gain dB (typ): 16dB OP1dB (typ): 20dBm NF (typ): 2.3dB OIP3 (typ): 33.5dBm Vs (typ): 5V Is (typ): 90mA Package: 16-Lead LFCSP (3mm x 3mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 14dB Specified at Freq: 7GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 9mm² (16-Lead LFCSP (3mm x 3mm w/ EP)) (HMC8414ACPZN-R7)mm² Package Height: 0.8mm (16-Lead LFCSP (3mm x 3mm w/ EP)) (HMC8414ACPZN-R7)mm Launch Date: 2023-10-23 EP: No

HMC8414ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 具有旁路开关的低噪声放大器，0.1 GHz至10 GHz

RF Primary Function: LNA, LNA with Bypass Switch Freq Response RF (min): 100MHz Freq Response RF (max): 10GHz Gain dB (typ): 16dB OP1dB (typ): 20dBm NF (typ): 2.3dB OIP3 (typ): 33.5dBm Vs (typ): 5V Is (typ): 90mA Package: 16-Lead LFCSP (3mm x 3mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 14dB Specified at Freq: 7GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 9mm² (16-Lead LFCSP (3mm x 3mm w/ EP)) (HMC8414ACPZN-R7)mm² Package Height: 0.8mm (16-Lead LFCSP (3mm x 3mm w/ EP)) (HMC8414ACPZN-R7)mm Launch Date: 2023-10-23 EP: No

ADH463-701LH250

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 航空航天GaA、低噪声AGC放大器，2至20 GHz，LH250封装

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 2GHz Freq Response RF (max): 20GHz Gain dB (typ): 14dB OP1dB (typ): 18dBm NF (typ): 2.5dB OIP3 (typ): 27dBm Vs (typ): 5V Is (typ): 60mA Package: 12-Lead LCC (5.08mmm x 5.08mm),CHIPS OR DIE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 5V Gain dB (min): 9dB Specified at Freq: 10GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Package Area: 25.8064mm² (12-Lead LCC (5.08mmm x 5.08mm)) (ADH463-701LH250)mm² Package Height: 1.37mm (12-Lead LCC (5.08mmm x 5.08mm)) (ADH463-701LH250)mm
Launch Date: 2023-09-20 EP: No

ADH463-000C

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 航空航天GaA、低噪声AGC放大器，2至20 GHz，LH250封装

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 2GHz Freq Response RF (max): 20GHz Gain dB (typ): 14dB OP1dB (typ): 18dBm NF (typ): 2.5dB OIP3 (typ): 27dBm Vs (typ): 5V Is (typ): 60mA Package: 12-Lead LCC (5.08mmm x 5.08mm),CHIPS OR DIE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 5V Gain dB (min): 9dB Specified at Freq: 10GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Package Area: 25.8064mm² (12-Lead LCC (5.08mmm x 5.08mm)) (ADH463-701LH250)mm² Package Height: 1.37mm (12-Lead LCC (5.08mmm x 5.08mm)) (ADH463-701LH250)mm
Launch Date: 2023-09-20 EP: No

ADL8102ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，1 GHz至22 GHz

RF Primary Function: LNA Freq Response RF (min): 1GHz Freq Response RF (max): 22GHz Gain dB (typ): 27dB OP1dB (typ): 13dBm NF (typ): 2.5dB OIP3 (typ): 24.5dBm Vs (typ): 5V Is (typ): 110mA Package: 16-Lead LFCSP (3mm x 3mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 5.5V Gain dB (min): 24.5dB Specified at Freq: 19GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 9mm² (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8102ACPZN)mm² Package Height: 0.8mm (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8102ACPZN)mm Launch Date: 2023-07-28 EP: No

ADL8102ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，1 GHz至22 GHz

RF Primary Function: LNA Freq Response RF (min): 1GHz Freq Response RF (max): 22GHz Gain dB (typ): 27dB OP1dB (typ): 13dBm NF (typ): 2.5dB OIP3 (typ): 24.5dBm Vs (typ): 5V Is (typ): 110mA Package: 16-Lead LFCSP (3mm x 3mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 5.5V Gain dB (min): 24.5dB Specified at Freq: 19GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 9mm² (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8102ACPZN)mm² Package Height: 0.8mm (16-Lead LFCSP (3mm x 3mm w/ EP)) (ADL8102ACPZN)mm Launch Date: 2023-07-28 EP: No

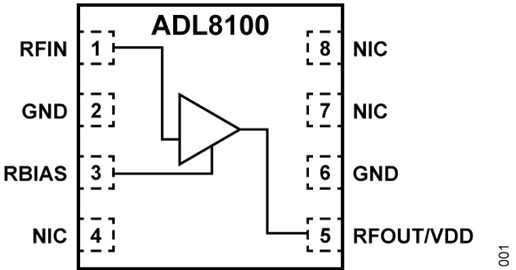

ADL8100ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，0.01 GHz至20 GHz

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 10MHz Freq Response RF (max): 20GHz Gain dB (typ): 19dB OP1dB (typ): 21.5dBm NF (typ): 2.5dB OIP3 (typ): 35dBm Vs (typ): 5V Is (typ): 220mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 16.5dB Specified at Freq: 14GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8100ACPZN)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8100ACPZN)mm Launch Date: 2023-07-17 EP: No
