ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

ADL8120ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 30 kHz to 20 GHz, Ultra-Wideband, Low Noise Amplifier

RF Primary Function: LNA, LNA High Survivability Freq Response RF (min): 30kHz Freq Response RF (max): 20GHz Gain dB (typ): 14dB OP1dB (typ): 16dBm NF (typ): 1.9dB OIP3 (typ): 29.5dBm Vs (typ): 3.3V Is (typ): 55mA Residual Phase Noise (typ): -160dBc/Hz Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 5.5V Specified at Freq: 14GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -55 to 125°C Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8120ACPZN-R7)mm²
Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8120ACPZN-R7)mm Launch Date: 2024-05-10 EP: No

ADPA1116ACGZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 0.3 GHz to 6 GHz, 39.5 dBm, GaN Power Amplifier

RF Primary Function: GaN Power Amp, Power Amp, Wideband Distributed Amps Freq Response RF (min): 300MHz Freq Response RF (max): 6GHz Gain dB (typ): 33.5dB NF (typ): 8dB OIP3 (typ): 39dBm Vs (typ): 28V Is (typ): 300mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 35V Specified at Freq: 5GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1116ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1116ACGZN)mm Launch Date: 2024-05-06 EP: No

ADPA1116ACGZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 0.3 GHz to 6 GHz, 39.5 dBm, GaN Power Amplifier

RF Primary Function: GaN Power Amp, Power Amp, Wideband Distributed Amps Freq Response RF (min): 300MHz Freq Response RF (max): 6GHz Gain dB (typ): 33.5dB NF (typ): 8dB OIP3 (typ): 39dBm Vs (typ): 28V Is (typ): 300mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 35V Specified at Freq: 5GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1116ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA1116ACGZN)mm Launch Date: 2024-05-06 EP: No

ADPA9007-2C-SX

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: DC to 28 GHz, GaAs, pHEMT, 2 W Power Amplifier

RF Primary Function: Power Amp Freq Response RF (min): 50MHz Freq Response RF (max): 28GHz Gain dB (typ): 13.5dB OP1dB (typ): 32.5dBm NF (typ): 3.5dB OIP3 (typ): 43.5dBm Vs (typ): 15V Is (typ): 500mA Package: CHIPS OR DIE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Specified at Freq: 16GHz Export Classification: EAR99 Automotive: No Temp Range: -55 to 85°C Launch Date: 2024-04-30 EP: No

ADPA9007-2CHIP

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: DC to 28 GHz, GaAs, pHEMT, 2 W Power Amplifier

RF Primary Function: Power Amp Freq Response RF (min): 50MHz Freq Response RF (max): 28GHz Gain dB (typ): 13.5dB OP1dB (typ): 32.5dBm NF (typ): 3.5dB OIP3 (typ): 43.5dBm Vs (typ): 15V Is (typ): 500mA Package: CHIPS OR DIE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Specified at Freq: 16GHz Export Classification: EAR99 Automotive: No Temp Range: -55 to 85°C Launch Date: 2024-04-30 EP: No

ADH8412TCPZ-PT-CSL

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: ADH8412S: Low Noise Amplifier, 0.4 GHz to 11 GHz

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 13dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: 6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 预发布 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -55 to 125°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADH8412TCPZ-R7-CSL)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADH8412TCPZ-R7-CSL)mm Launch Date: 2024-02-20 EP: No

ADH8412TCPZ-R7-CSL

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: ADH8412S: Low Noise Amplifier, 0.4 GHz to 11 GHz

RF Primary Function: Gain Block, LNA, Low Phase Noise Freq Response RF (min): 400MHz Freq Response RF (max): 11GHz Gain dB (typ): 13dB OP1dB (typ): 18dBm NF (typ): 1.5dB OIP3 (typ): 33dBm Vs (typ): 5V Is (typ): 60mA Package: 6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 预发布 # of Channels: 1 Vs+ (max): 6V Gain dB (min): 13dB Specified at Freq: 9GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -55 to 125°C
Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADH8412TCPZ-R7-CSL)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADH8412TCPZ-R7-CSL)mm Launch Date: 2024-02-20 EP: No

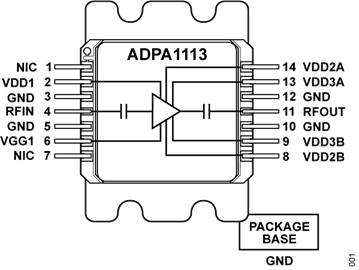

ADPA1113AEJZ

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 2 GHz 至 6 GHz，46 dBm (40 W)，GaN 功率放大器

RF Primary Function: GaN Power Amp, Power Amp Freq Response RF (min): 2GHz Freq Response RF (max): 6GHz Gain dB (typ): 40.5dB NF (typ): 5dB OIP3 (typ): 48dBm Vs (typ): 28V Is (typ): 750mA Package: CER LEADED CHIP CARRIER Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 35V Specified at Freq: 4GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.a.4 Automotive: No Temp Range: -40 to 85°C Launch Date: 2024-02-14 EP: No

ADPA1113AEJZ-50

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 2 GHz 至 6 GHz，46 dBm (40 W)，GaN 功率放大器

RF Primary Function: GaN Power Amp, Power Amp Freq Response RF (min): 2GHz Freq Response RF (max): 6GHz Gain dB (typ): 40.5dB NF (typ): 5dB OIP3 (typ): 48dBm Vs (typ): 28V Is (typ): 750mA Package: CER LEADED CHIP CARRIER Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 35V Specified at Freq: 4GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.a.4 Automotive: No Temp Range: -40 to 85°C Launch Date: 2024-02-14 EP: No

ADPA9007ACGZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: DC to 28 GHz, GaAs, pHEMT, 2 W Power Amplifier

RF Primary Function: Power Amp Freq Response RF (min): 100kHz Freq Response RF (max): 28GHz Gain dB (typ): 12.5dB OP1dB (typ): 33dBm NF (typ): 4dB OIP3 (typ): 45dBm Vs (typ): 15V Is (typ): 500mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (max): 16V Specified at Freq: 16GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9007ACGZN)mm² Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9007ACGZN)mm
Launch Date: 2023-12-18 EP: No
