ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

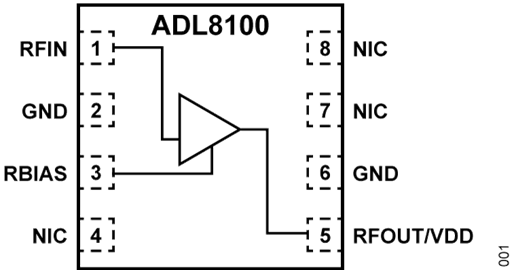

ADL8100ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，0.01 GHz至20 GHz

RF Primary Function: LNA, Wideband Distributed Amps Freq Response RF (min): 10MHz Freq Response RF (max): 20GHz Gain dB (typ): 19dB OP1dB (typ): 21.5dBm NF (typ): 2.5dB OIP3 (typ): 35dBm Vs (typ): 5V Is (typ): 220mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 6V Gain dB (min): 16.5dB Specified at Freq: 14GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8100ACPZN)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8100ACPZN)mm Launch Date: 2023-07-17 EP: No

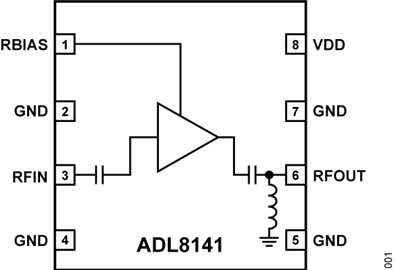

ADL8141ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，14 GHz至24 GHz

RF Primary Function: LNA Freq Response RF (min): 14GHz Freq Response RF (max): 24GHz Gain dB (typ): 28.5dB OP1dB (typ): 9dBm NF (typ): 1.4dB OIP3 (typ): 18dBm Vs (typ): 2V Is (typ): 25mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85,LFCSP:LEADFRM CHIP SCALE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 26.5dB Specified at Freq: 22GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: Class S
Temp Range: -40 to 85°C Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm Launch Date: 2023-07-11 EP: No

ADL8141ACPZN-CSL

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，14 GHz至24 GHz

RF Primary Function: LNA Freq Response RF (min): 14GHz Freq Response RF (max): 24GHz Gain dB (typ): 28.5dB OP1dB (typ): 9dBm NF (typ): 1.4dB OIP3 (typ): 18dBm Vs (typ): 2V Is (typ): 25mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85,LFCSP:LEADFRM CHIP SCALE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 26.5dB Specified at Freq: 22GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: Class S
Temp Range: -40 to 85°C Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm Launch Date: 2023-07-11 EP: No

ADL8141ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，14 GHz至24 GHz

RF Primary Function: LNA Freq Response RF (min): 14GHz Freq Response RF (max): 24GHz Gain dB (typ): 28.5dB OP1dB (typ): 9dBm NF (typ): 1.4dB OIP3 (typ): 18dBm Vs (typ): 2V Is (typ): 25mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85,LFCSP:LEADFRM CHIP SCALE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 26.5dB Specified at Freq: 22GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: Class S
Temp Range: -40 to 85°C Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm Launch Date: 2023-07-11 EP: No

ADL8141ACPZN-R7-CSL

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，14 GHz至24 GHz

RF Primary Function: LNA Freq Response RF (min): 14GHz Freq Response RF (max): 24GHz Gain dB (typ): 28.5dB OP1dB (typ): 9dBm NF (typ): 1.4dB OIP3 (typ): 18dBm Vs (typ): 2V Is (typ): 25mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85,LFCSP:LEADFRM CHIP SCALE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 26.5dB Specified at Freq: 22GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Reliability Level: Class S
Temp Range: -40 to 85°C Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8141ACPZN-R7)mm Launch Date: 2023-07-11 EP: No

ADL8112ACCZ

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 具有旁路开关的 10MHz 至 26.5GHz 放大器

RF Primary Function: LNA with Bypass Switch Freq Response RF (min): 10MHz Freq Response RF (max): 26.5GHz Gain dB (typ): 13.5dB OP1dB (typ): 11dBm NF (typ): 4dB OIP3 (typ): 22.5dBm Vs (typ): 8.5V Is (typ): 90mA Package: 28-Terminal Land Grid Array [LGA] Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 7.5V Vs+ (max): 9.5V Gain dB (min): 11.5dB Specified at Freq: 14GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 36mm² (28-Terminal Land Grid Array [LGA]) (ADL8112ACCZ-R7)mm² Package Height: 2.11mm (28-Terminal Land Grid Array [LGA]) (ADL8112ACCZ-R7)mm Launch Date: 2023-05-02 EP: No

ADL8112ACCZ-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 具有旁路开关的 10MHz 至 26.5GHz 放大器

RF Primary Function: LNA with Bypass Switch Freq Response RF (min): 10MHz Freq Response RF (max): 26.5GHz Gain dB (typ): 13.5dB OP1dB (typ): 11dBm NF (typ): 4dB OIP3 (typ): 22.5dBm Vs (typ): 8.5V Is (typ): 90mA Package: 28-Terminal Land Grid Array [LGA] Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 7.5V Vs+ (max): 9.5V Gain dB (min): 11.5dB Specified at Freq: 14GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 36mm² (28-Terminal Land Grid Array [LGA]) (ADL8112ACCZ-R7)mm² Package Height: 2.11mm (28-Terminal Land Grid Array [LGA]) (ADL8112ACCZ-R7)mm Launch Date: 2023-05-02 EP: No

ADPA1122AEHZ

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 43dBm、20W、GaN 功率放大器，8.2GHz 至 11.8GHz

RF Primary Function: GaN Power Amp, Power Amp Freq Response RF (min): 8.2GHz Freq Response RF (max): 11.8GHz Gain dB (typ): 31dB Vs (typ): 28V Is (typ): 200mA Package: 18-Lead LCC (7mm x 7mm x 1.32mm w/EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Gain dB (min): 28.5dB Specified at Freq: 11GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.b.2 Automotive: No Temp Range: -40 to 85°C Package Area: 49mm² (18-Lead LCC (7mm x 7mm x 1.32mm w/EP)) (ADPA1122AEHZ)mm² Package Height: 1.317mm (18-Lead LCC (7mm x 7mm x 1.32mm w/EP)) (ADPA1122AEHZ)mm Launch Date: 2023-04-13 EP: No

ADPA1122AEHZ-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 43dBm、20W、GaN 功率放大器，8.2GHz 至 11.8GHz

RF Primary Function: GaN Power Amp, Power Amp Freq Response RF (min): 8.2GHz Freq Response RF (max): 11.8GHz Gain dB (typ): 31dB Vs (typ): 28V Is (typ): 200mA Package: 18-Lead LCC (7mm x 7mm x 1.32mm w/EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Gain dB (min): 28.5dB Specified at Freq: 11GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.b.2 Automotive: No Temp Range: -40 to 85°C Package Area: 49mm² (18-Lead LCC (7mm x 7mm x 1.32mm w/EP)) (ADPA1122AEHZ)mm² Package Height: 1.317mm (18-Lead LCC (7mm x 7mm x 1.32mm w/EP)) (ADPA1122AEHZ)mm Launch Date: 2023-04-13 EP: No

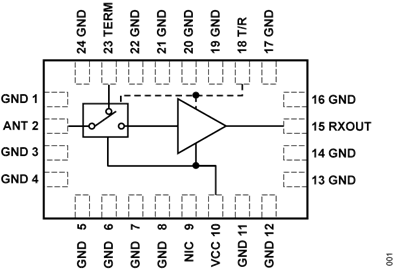

ADRF5534BCPZN

分类: 微电路 / 半导体集成电路 / 射频电路
数据:

简介: 3.1 GHz 至 4.2 GHz，接收器前端

RF Primary Function: Rx Front End, SPDT Switch Freq Response RF (min): 3.1GHz Freq Response RF (max): 4.2GHz NF (typ): 1.3dB Vs (typ): 5V Package: 24-lead LFCSP (5 mm x 3 mm x 0.95 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Specified at Freq: 3.6GHz Eval / Ref Circuit: Evaluation board Export Classification: 5A991.g Automotive: No Temp Range: -40 to 105°C Launch Date: 2023-03-06 EP: No
