ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

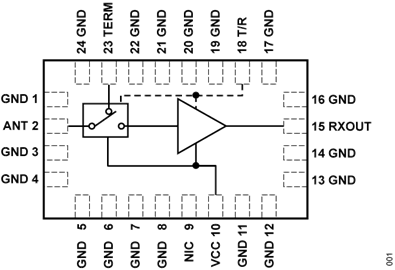

ADRF5534BCPZN-R7

分类: 微电路 / 半导体集成电路 / 射频电路
数据:

简介: 3.1 GHz 至 4.2 GHz，接收器前端

RF Primary Function: Rx Front End, SPDT Switch Freq Response RF (min): 3.1GHz Freq Response RF (max): 4.2GHz NF (typ): 1.3dB Vs (typ): 5V Package: 24-lead LFCSP (5 mm x 3 mm x 0.95 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Specified at Freq: 3.6GHz Eval / Ref Circuit: Evaluation board Export Classification: 5A991.g Automotive: No Temp Range: -40 to 105°C Launch Date: 2023-03-06 EP: No

ADRF5534BCPZN-RL

分类: 微电路 / 半导体集成电路 / 射频电路
数据:

简介: 3.1 GHz 至 4.2 GHz，接收器前端

RF Primary Function: Rx Front End, SPDT Switch Freq Response RF (min): 3.1GHz Freq Response RF (max): 4.2GHz NF (typ): 1.3dB Vs (typ): 5V Package: 24-lead LFCSP (5 mm x 3 mm x 0.95 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Specified at Freq: 3.6GHz Eval / Ref Circuit: Evaluation board Export Classification: 5A991.g Automotive: No Temp Range: -40 to 105°C Launch Date: 2023-03-06 EP: No

ADH8411TCPZ-CSH-PT

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.01 GHz 至 10 GHz 低噪声放大器

RF Primary Function: LNA, Low Phase Noise Freq Response RF (min): 10MHz Freq Response RF (max): 10GHz Gain dB (typ): 15dB OP1dB (typ): 20dBm NF (typ): 1.7dB OIP3 (typ): 34dBm Vs (typ): 5V Is (typ): 55mA Package: 6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 Specified at Freq: 6GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -55 to 125°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADH8411TCPZ-CSL-PT)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADH8411TCPZ-CSL-PT)mm Launch Date: 2022-12-22 EP: No

ADH8411TCPZ-CSL-PT

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 0.01 GHz 至 10 GHz 低噪声放大器

RF Primary Function: LNA, Low Phase Noise Freq Response RF (min): 10MHz Freq Response RF (max): 10GHz Gain dB (typ): 15dB OP1dB (typ): 20dBm NF (typ): 1.7dB OIP3 (typ): 34dBm Vs (typ): 5V Is (typ): 55mA Package: 6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 Specified at Freq: 6GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -55 to 125°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADH8411TCPZ-CSL-PT)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADH8411TCPZ-CSL-PT)mm Launch Date: 2022-12-22 EP: No

ADL8142-2C-CSL

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，23 GHz至31 GHz

RF Primary Function: LNA Freq Response RF (min): 23GHz Freq Response RF (max): 31GHz Gain dB (typ): 26.5dB OP1dB (typ): 8.5dBm NF (typ): 1.8dB OIP3 (typ): 20dBm Vs (typ): 2V Is (typ): 25mA Package: CHIPS OR DIE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 23.5dB Specified at Freq: 31GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -55 to 85°C
Launch Date: 2022-11-17 EP: No

ADL8142-2C-SX

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，23 GHz至31 GHz

RF Primary Function: LNA Freq Response RF (min): 23GHz Freq Response RF (max): 31GHz Gain dB (typ): 26.5dB OP1dB (typ): 8.5dBm NF (typ): 1.8dB OIP3 (typ): 20dBm Vs (typ): 2V Is (typ): 25mA Package: CHIPS OR DIE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 23.5dB Specified at Freq: 31GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -55 to 85°C
Launch Date: 2022-11-17 EP: No

ADL8142-2CHIP

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，23 GHz至31 GHz

RF Primary Function: LNA Freq Response RF (min): 23GHz Freq Response RF (max): 31GHz Gain dB (typ): 26.5dB OP1dB (typ): 8.5dBm NF (typ): 1.8dB OIP3 (typ): 20dBm Vs (typ): 2V Is (typ): 25mA Package: CHIPS OR DIE Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 23.5dB Specified at Freq: 31GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -55 to 85°C
Launch Date: 2022-11-17 EP: No

ADPA7009-2ACEZ

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 20 GHz 至 54 GHz GaAs pHEMT MMIC 29 dBm (0.5 W) 功率放大器

RF Primary Function: Power Amp, Wideband Distributed Amps Freq Response RF (min): 20GHz Freq Response RF (max): 54GHz Gain dB (typ): 17dB OP1dB (typ): 26.5dBm NF (typ): 7dB OIP3 (typ): 34.5dBm Vs (typ): 5V Is (typ): 850mA Package: 24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Gain dB (min): 14.5dB Specified at Freq: 43GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C Launch Date: 2022-09-07 EP: No

ADPA7009-2ACEZ-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: 20 GHz 至 54 GHz GaAs pHEMT MMIC 29 dBm (0.5 W) 功率放大器

RF Primary Function: Power Amp, Wideband Distributed Amps Freq Response RF (min): 20GHz Freq Response RF (max): 54GHz Gain dB (typ): 17dB OP1dB (typ): 26.5dBm NF (typ): 7dB OIP3 (typ): 34.5dBm Vs (typ): 5V Is (typ): 850mA Package: 24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Gain dB (min): 14.5dB Specified at Freq: 43GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C Launch Date: 2022-09-07 EP: No

ADL8106ACEZ

分类: 微电路 / 微波半导体集成电路 / 放大器 / 宽带放大器
数据:

简介: GaAs pHEMT 低噪声放大器，20 GHz 至 54 GHz

RF Primary Function: Driver Amp, LNA, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 54GHz Gain dB (typ): 21.5dB OP1dB (typ): 14.5dBm NF (typ): 3.5dB OIP3 (typ): 21.5dBm Vs (typ): 3V Is (typ): 120mA Package: CHIPS OR DIE,24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 2V Vs+ (max): 3.5V Gain dB (min): 19dB Specified at Freq: 44GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2022-09-02 EP: No
