ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

ADL8106ACEZ-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 宽带放大器
数据:

简介: GaAs pHEMT 低噪声放大器，20 GHz 至 54 GHz

RF Primary Function: Driver Amp, LNA, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 54GHz Gain dB (typ): 21.5dB OP1dB (typ): 14.5dBm NF (typ): 3.5dB OIP3 (typ): 21.5dBm Vs (typ): 3V Is (typ): 120mA Package: CHIPS OR DIE,24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 2V Vs+ (max): 3.5V Gain dB (min): 19dB Specified at Freq: 44GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2022-09-02 EP: No

ADL8106CHIPS

分类: 微电路 / 微波半导体集成电路 / 放大器 / 宽带放大器
数据:

简介: GaAs pHEMT 低噪声放大器，20 GHz 至 54 GHz

RF Primary Function: Driver Amp, LNA, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 54GHz Gain dB (typ): 21.5dB OP1dB (typ): 14.5dBm NF (typ): 3.5dB OIP3 (typ): 21.5dBm Vs (typ): 3V Is (typ): 120mA Package: CHIPS OR DIE,24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 2V Vs+ (max): 3.5V Gain dB (min): 19dB Specified at Freq: 44GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2022-09-02 EP: No

ADL8106CHIPS-SX

分类: 微电路 / 微波半导体集成电路 / 放大器 / 宽带放大器
数据:

简介: GaAs pHEMT 低噪声放大器，20 GHz 至 54 GHz

RF Primary Function: Driver Amp, LNA, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 54GHz Gain dB (typ): 21.5dB OP1dB (typ): 14.5dBm NF (typ): 3.5dB OIP3 (typ): 21.5dBm Vs (typ): 3V Is (typ): 120mA Package: CHIPS OR DIE,24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 2V Vs+ (max): 3.5V Gain dB (min): 19dB Specified at Freq: 44GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2022-09-02 EP: No

ADL8105ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，5 GHz至20 GHz

RF Primary Function: Driver Amp, Gain Block, LNA Freq Response RF (min): 5GHz Freq Response RF (max): 20GHz Gain dB (typ): 27dB OP1dB (typ): 18dBm NF (typ): 1.8dB OIP3 (typ): 30.5dBm Vs (typ): 5V Is (typ): 90mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 5.5V Gain dB (min): 24.5dB Specified at Freq: 20GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8105ACPZN)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8105ACPZN)mm Launch Date: 2022-07-28 EP: No

ADL8105ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，5 GHz至20 GHz

RF Primary Function: Driver Amp, Gain Block, LNA Freq Response RF (min): 5GHz Freq Response RF (max): 20GHz Gain dB (typ): 27dB OP1dB (typ): 18dBm NF (typ): 1.8dB OIP3 (typ): 30.5dBm Vs (typ): 5V Is (typ): 90mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 3V Vs+ (max): 5.5V Gain dB (min): 24.5dB Specified at Freq: 20GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8105ACPZN)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8105ACPZN)mm Launch Date: 2022-07-28 EP: No

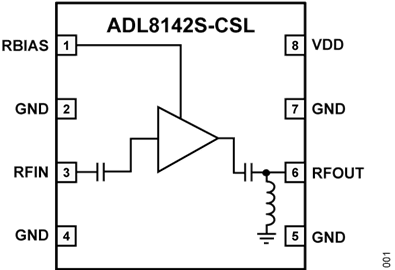

ADL8142ACPZN-CSL

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，23 GHz 至 31 GHz

RF Primary Function: LNA Freq Response RF (min): 23GHz Freq Response RF (max): 31GHz Gain dB (typ): 27dB OP1dB (typ): 10dBm NF (typ): 1.6dB OIP3 (typ): 29dBm Vs (typ): 2V Is (typ): 25mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 24.5dB Specified at Freq: 31GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -40 to 85°C
Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8142ACPZN-CSL)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8142ACPZN-CSL)mm Launch Date: 2022-06-27 EP: No

ADL8142ACPZN-R7-CSL

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，23 GHz 至 31 GHz

RF Primary Function: LNA Freq Response RF (min): 23GHz Freq Response RF (max): 31GHz Gain dB (typ): 27dB OP1dB (typ): 10dBm NF (typ): 1.6dB OIP3 (typ): 29dBm Vs (typ): 2V Is (typ): 25mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 24.5dB Specified at Freq: 31GHz Export Classification: EAR99 Automotive: No Reliability Level: Class S Temp Range: -40 to 85°C
Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8142ACPZN-CSL)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8142ACPZN-CSL)mm Launch Date: 2022-06-27 EP: No

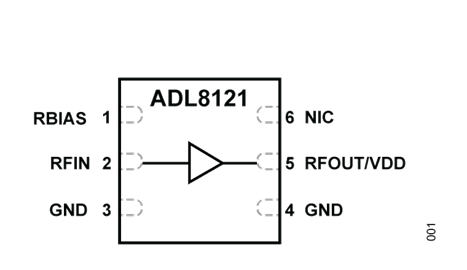

ADL8121ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，0.025 GHz至12 GHz

RF Primary Function: Gain Block, LNA, LNA High Survivability Freq Response RF (min): 25MHz Freq Response RF (max): 12GHz Gain dB (typ): 16.5dB OP1dB (typ): 21dBm NF (typ): 2.5dB OIP3 (typ): 36dBm Vs (typ): 5V Is (typ): 95mA Package: 6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Gain dB (min): 14.5dB Specified at Freq: 10GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADL8121ACPZN-R7)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADL8121ACPZN-R7)mm
Launch Date: 2022-05-01 EP: No

ADL8121ACPZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，0.025 GHz至12 GHz

RF Primary Function: Gain Block, LNA, LNA High Survivability Freq Response RF (min): 25MHz Freq Response RF (max): 12GHz Gain dB (typ): 16.5dB OP1dB (typ): 21dBm NF (typ): 2.5dB OIP3 (typ): 36dBm Vs (typ): 5V Is (typ): 95mA Package: 6-Lead LFCSP (2mm x 2mm) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Gain dB (min): 14.5dB Specified at Freq: 10GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 4mm² (6-Lead LFCSP (2mm x 2mm)) (ADL8121ACPZN-R7)mm² Package Height: 0.85mm (6-Lead LFCSP (2mm x 2mm)) (ADL8121ACPZN-R7)mm
Launch Date: 2022-05-01 EP: No

ADL8142ACPZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: GaAs、pHEMT、MMIC、低噪声放大器，23 GHz至31 GHz

RF Primary Function: LNA Freq Response RF (min): 23GHz Freq Response RF (max): 31GHz Gain dB (typ): 27dB OP1dB (typ): 10dBm NF (typ): 1.6dB OIP3 (typ): 21.5dBm Vs (typ): 2V Is (typ): 25mA Package: 8-lead LFCSP 2 mm × 2 mm × 0.85 Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 1.5V Vs+ (max): 3.5V Gain dB (min): 24.5dB Specified at Freq: 31GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C
Package Area: 4mm² (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8142ACPZN-R7)mm² Package Height: 0.85mm (8-lead LFCSP 2 mm × 2 mm × 0.85) (ADL8142ACPZN-R7)mm Launch Date: 2022-05-01 EP: No
