Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.7
Vos (offset voltage at 25°C) (max) (mV): 0.1
GBW (typ) (MHz): 1
Features: e-Trim™
| 库存数量: | 0 |
Device type: Current sensing
Peak-to-peak input voltage range (V): 0.05
Isolation rating: Basic
Withstand isolation voltage (VISO) (Vrms): 3000
Working isolation voltage (VIOWM) (Vrms): 1000
Transient isolation voltage (VIOTM) (VPK): 4250
| 库存数量: | 0 |
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 40
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Rail-to-rail: In to V+
GBW (typ) (MHz): 5.25
Slew rate (typ) (V/µs): 20
| 库存数量: | 0 |
Number of channels: 4
Output type: Push-Pull
Propagation delay time (µs): 3
Vs (max) (V): 6.5
Vs (min) (V): 1.6
Vos (offset voltage at 25°C) (max) (mV): 8
| 库存数量: | 0 |
Number of channels: 4
Output type: Open-collector, Open-drain
Propagation delay time (µs): 3
Vs (max) (V): 6.5
Vs (min) (V): 1.6
Vos (offset voltage at 25°C) (max) (mV): 8
| 库存数量: | 0 |
Vn at 1 kHz (nV√Hz): 0.8
Breakdown voltage (V): 40
VDS (V): 40
VGS (V): -40
VGSTH typ (typ) (V): -1.2
Rating: Catalog
| 库存数量: | 0 |
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 40
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Rail-to-rail: In to V+
GBW (typ) (MHz): 5.25
Slew rate (typ) (V/µs): 20
| 库存数量: | 0 |

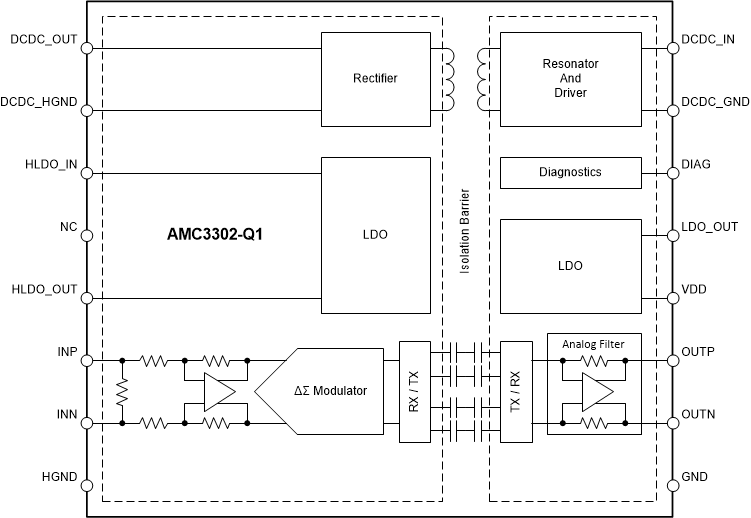

Device type: Current sensing
Peak-to-peak input voltage range (V): 0.05
Isolation rating: Reinforced
Withstand isolation voltage (VISO) (Vrms): 4250
Working isolation voltage (VIOWM) (Vrms): 1200
Transient isolation voltage (VIOTM) (VPK): 6000
| 库存数量: | 0 |
Common-mode voltage (max) (V): 85
Common-mode voltage (min) (V): -0.3
Input offset (±) (max) (µV): 1
Input offset drift (±) (max) (µV/°C): 0.01
Input offset drift (±) (typ) (µV/°C): 0.002
Voltage gain (V/V): 1
| 库存数量: | 0 |
