德州仪器 (TI) 是一家全球化半导体设计与制造企业,凭借 80,000+ 模拟 IC 与嵌入式处理器产品、各类软件以及最大规模的销售和技术支持不断开拓创新。

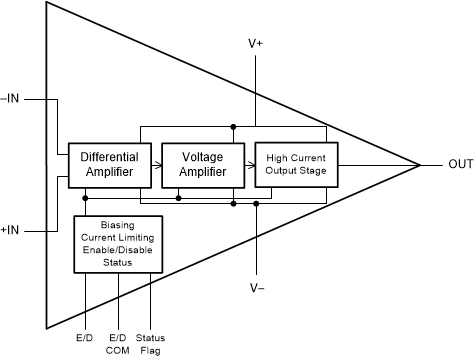

Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 12
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 150
Iout (typ) (A): 0.045
GBW (typ) (MHz): 6.5
Slew rate (typ) (V/µs): 32
| 库存数量: | 0 |
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 40
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Rail-to-rail: In to V+
GBW (typ) (MHz): 5.25
Slew rate (typ) (V/µs): 20
| 库存数量: | 0 |

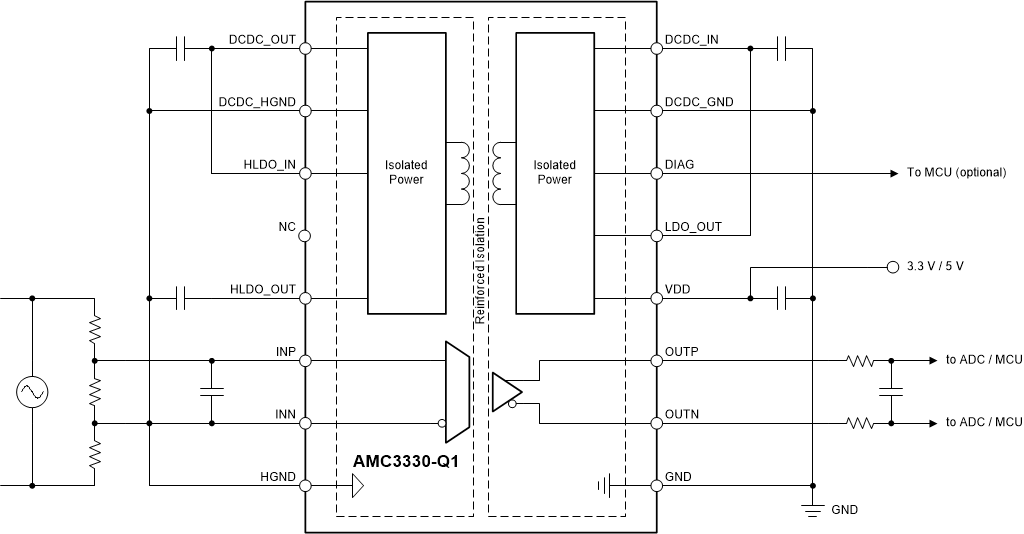

Device type: Voltage sensing
Peak-to-peak input voltage range (V): 1
Isolation rating: Reinforced
Withstand isolation voltage (VISO) (Vrms): 4250
Working isolation voltage (VIOWM) (Vrms): 1200
Transient isolation voltage (VIOTM) (VPK): 6000
| 库存数量: | 0 |

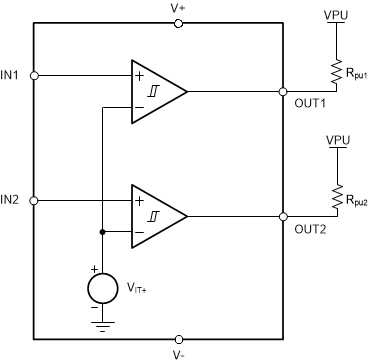

Number of channels: 2
Output type: Push-Pull
Propagation delay time (µs): 5.5
Vs (max) (V): 5.5
Vs (min) (V): 1.5
Vos (offset voltage at 25°C) (max) (mV): 6
| 库存数量: | 0 |
Number of channels: 2
Output type: Open-collector, Open-drain
Propagation delay time (µs): 5.5
Vs (max) (V): 5.5
Vs (min) (V): 1.5
Vos (offset voltage at 25°C) (max) (mV): 6
| 库存数量: | 0 |
Number of channels: 2
Output type: Open-collector, Open-drain
Propagation delay time (µs): 18
Vs (max) (V): 18
Vs (min) (V): 1.8
Vos (offset voltage at 25°C) (max) (mV): 2
| 库存数量: | 0 |
Number of channels: 1
Output type: Open-collector, Open-drain
Propagation delay time (µs): 18
Vs (max) (V): 18
Vs (min) (V): 1.8
Vos (offset voltage at 25°C) (max) (mV): 2
| 库存数量: | 0 |

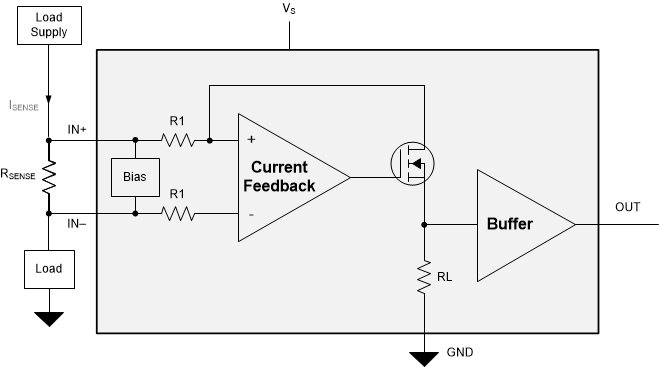

Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -4
Input offset (±) (max) (µV): 150, 200, 250, 300, 500
Input offset drift (±) (typ) (µV/°C): 0.07
Voltage gain (V/V): 20, 50, 100, 200, 500
| 库存数量: | 0 |
Product type: Analog output
Common-mode voltage (max) (V): 110
Common-mode voltage (min) (V): -4
Input offset (±) (max) (µV): 20, 30, 50, 80, 150
Input offset drift (±) (typ) (µV/°C): 0.025
Voltage gain (V/V): 20, 50, 100, 200, 500
| 库存数量: | 0 |
