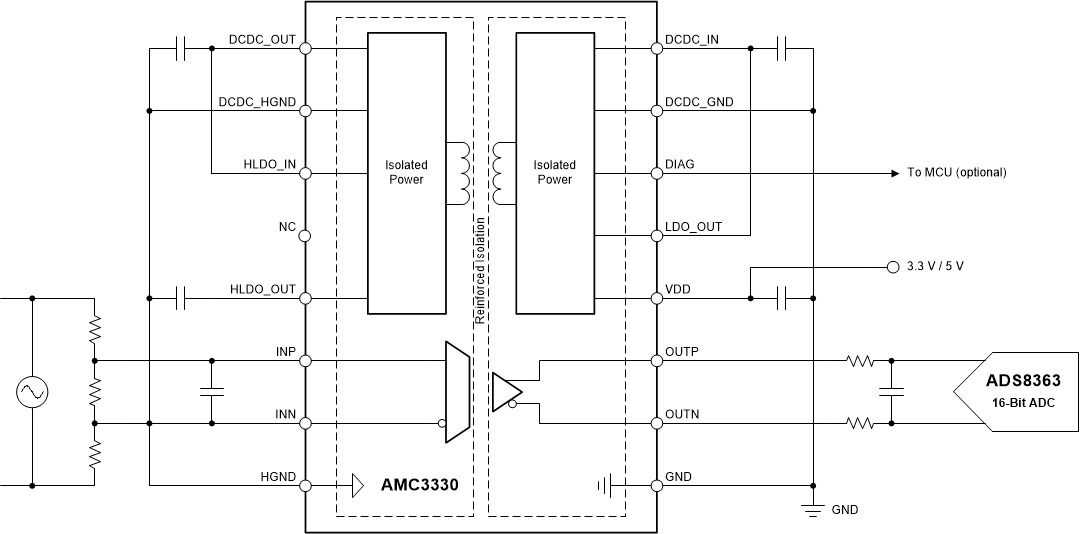

Device type: Voltage sensing
Peak-to-peak input voltage range (V): 1
Isolation rating: Reinforced
Withstand isolation voltage (VISO) (Vrms): 4250
Working isolation voltage (VIOWM) (Vrms): 1200
Transient isolation voltage (VIOTM) (VPK): 6000
| 库存数量: | 0 |
Number of channels: 2
Output type: Open-collector, Open-drain
Propagation delay time (µs): 0.6
Vs (max) (V): 5.5
Vs (min) (V): 1.65
Vos (offset voltage at 25°C) (max) (mV): 2
| 库存数量: | 0 |
Number of channels: 2
Output type: Open-collector, Open-drain
Propagation delay time (µs): 0.1
Vs (max) (V): 5.5
Vs (min) (V): 1.65
Vos (offset voltage at 25°C) (max) (mV): 1.5
| 库存数量: | 0 |
Number of channels: 2
Output type: Push-Pull
Propagation delay time (µs): 0.1
Vs (max) (V): 5.5
Vs (min) (V): 1.65
Vos (offset voltage at 25°C) (max) (mV): 1.5
| 1: | ¥9.8055 |
| 10: | ¥7.8444 |
| 100: | ¥6.7238 |
| 库存数量: | 3840 |
Architecture: FET / CMOS Input, Voltage FB
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
GBW (typ) (MHz): 50
BW at Acl (MHz): 2.5
| 库存数量: | 0 |
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.2
Rail-to-rail: In, Out
GBW (typ) (MHz): 0.35
Slew rate (typ) (V/µs): 0.2
| 库存数量: | 0 |
Architecture: Voltage FB
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3.3
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.25
GBW (typ) (MHz): 1080
BW at Acl (MHz): 1100
| 库存数量: | 0 |
Number of channels: 1
Vs (max) (V): 36
Vs (min) (V): 8
Input offset (±) (max) (µV): 35
Voltage gain (min) (V/V): 2000
Voltage gain (max) (V/V): 2000
| 库存数量: | 0 |
Number of channels: 1
Output type: Open-collector, Open-drain
Propagation delay time (µs): 5
Vs (max) (V): 6
Vs (min) (V): 1.3
Vos (offset voltage at 25°C) (max) (mV): 9
| 库存数量: | 0 |
