CSD13202Q2
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管

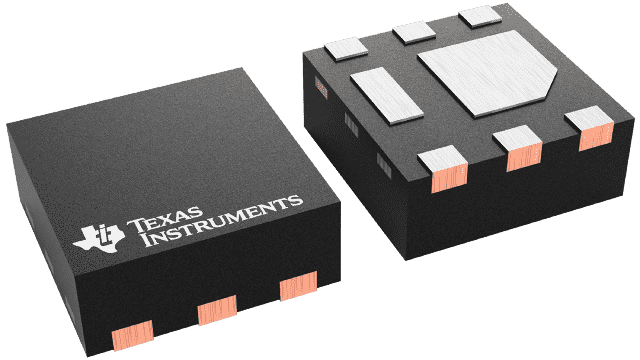

描述: 采用 2mm x 2mm SON 封装的单通道、9.3mΩ、12V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 12
VGS (V): 8
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 9.3
VGSTH typ (typ) (V): 0.8
QG (typ) (nC): 5.1
QGD (typ) (nC): 0.76
QGS (typ) (nC): 0.98
ID - silicon limited at TC=25°C (A): 14.4
ID - package limited (A): 22
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 12
VGS (V): 8
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 9.3
VGSTH typ (typ) (V): 0.8
更多
QG (typ) (nC): 5.1
QGD (typ) (nC): 0.76
QGS (typ) (nC): 0.98
ID - silicon limited at TC=25°C (A): 14.4
ID - package limited (A): 22
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD87384M
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 3.5mm LGA 封装的 30A、30V、N 沟道同步降压 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 10
Type: Power block
Configuration: PowerBlock
ID - continuous drain current at TA=25°C (A): 30
Power loss (W): 3.7
Ploss current (A): 25
Features: Power supply
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 10
Type: Power block
Configuration: PowerBlock
ID - continuous drain current at TA=25°C (A): 30
Power loss (W): 3.7
Ploss current (A): 25
Features: Power supply
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD25481F4
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 0.6mm x 1mm LGA 封装、具有栅极 ESD 保护的单通道、105mΩ、-20V、P 沟道 NexFET™ 功率 MOSFET
VDS (V): -20
VGS (V): -12
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 105
Rds(on) at VGS=2.5 V (max) (mΩ): 175
VGSTH typ (typ) (V): -0.95
QG (typ) (nC): 0.913
QGD (typ) (nC): 0.153
QGS (typ) (nC): 0.24
ID - silicon limited at TC=25°C (A): 2.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): -20
VGS (V): -12
Type: P-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 105
Rds(on) at VGS=2.5 V (max) (mΩ): 175
更多
VGSTH typ (typ) (V): -0.95
QG (typ) (nC): 0.913
QGD (typ) (nC): 0.153
QGS (typ) (nC): 0.24
ID - silicon limited at TC=25°C (A): 2.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD13381F4
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管

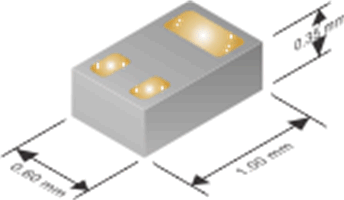

描述: 采用 1mm x 0.6mm LGA 封装、具有栅极 ESD 保护的单通道、180mΩ、12V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 12
VGS (V): 8
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 180
VGSTH typ (typ) (V): 0.85
QG (typ) (nC): 1.06
QGD (typ) (nC): 0.14
QGS (typ) (nC): 0.23
ID - silicon limited at TC=25°C (A): 2.1
ID - package limited (A): 2.1
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 12
VGS (V): 8
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 180
VGSTH typ (typ) (V): 0.85
更多
QG (typ) (nC): 1.06
QGD (typ) (nC): 0.14
QGS (typ) (nC): 0.23
ID - silicon limited at TC=25°C (A): 2.1
ID - package limited (A): 2.1
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD17483F4
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 1mm x 0.6mm LGA 封装、具有栅极 ESD 保护的单通道、260mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 12
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 230
Rds(on) at VGS=4.5 V (max) (mΩ): 260
VGSTH typ (typ) (V): 0.85
QG (typ) (nC): 1.01
QGD (typ) (nC): 0.13
QGS (typ) (nC): 0.22
ID - silicon limited at TC=25°C (A): 1.5
ID - package limited (A): 1.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 12
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 230
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 260
VGSTH typ (typ) (V): 0.85
QG (typ) (nC): 1.01
QGD (typ) (nC): 0.13
QGS (typ) (nC): 0.22
ID - silicon limited at TC=25°C (A): 1.5
ID - package limited (A): 1.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD19531KCS
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管

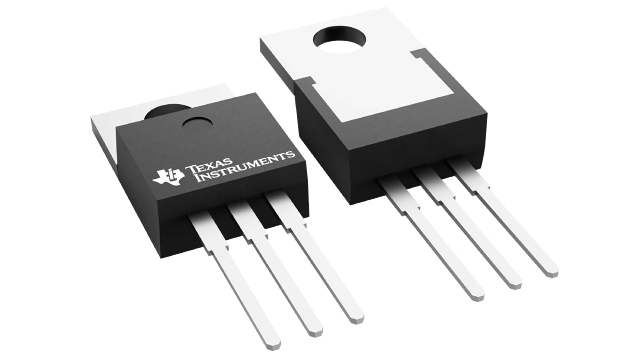

描述: 采用 TO-220 封装的单通道、7.7mΩ、100V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 7.7
VGSTH typ (typ) (V): 2.7
QG (typ) (nC): 38
QGD (typ) (nC): 7.5
QGS (typ) (nC): 11.9
ID - silicon limited at TC=25°C (A): 110
ID - package limited (A): 100
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 175
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 7.7
VGSTH typ (typ) (V): 2.7
更多
QG (typ) (nC): 38
QGD (typ) (nC): 7.5
QGS (typ) (nC): 11.9
ID - silicon limited at TC=25°C (A): 110
ID - package limited (A): 100
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 175
CSD19531Q5A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管

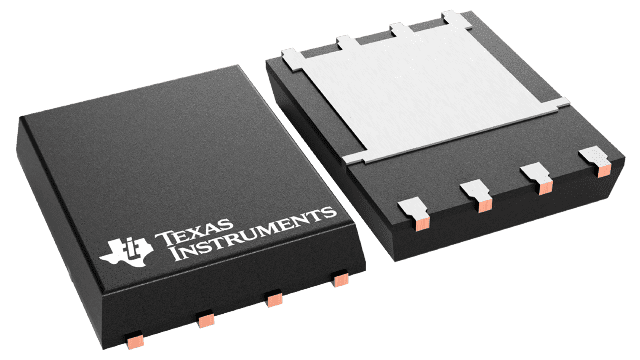

描述: 采用 5mm x 6mm SON 封装的单通道、6.4mΩ、100V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6.4
VGSTH typ (typ) (V): 2.7
QG (typ) (nC): 37
QGD (typ) (nC): 6.6
QGS (typ) (nC): 10.5
ID - silicon limited at TC=25°C (A): 110
ID - package limited (A): 100
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 100
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6.4
VGSTH typ (typ) (V): 2.7
更多
QG (typ) (nC): 37
QGD (typ) (nC): 6.6
QGS (typ) (nC): 10.5
ID - silicon limited at TC=25°C (A): 110
ID - package limited (A): 100
Logic level: No
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD15571Q2
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 2mm x 2mm SON 封装的单通道、19.2mΩ、20V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 20
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 15
Rds(on) at VGS=4.5 V (max) (mΩ): 19.2
VGSTH typ (typ) (V): 1.45
QG (typ) (nC): 2.5
QGD (typ) (nC): 0.66
QGS (typ) (nC): 0.93
ID - silicon limited at TC=25°C (A): 10
ID - package limited (A): 22
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 20
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 15
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 19.2
VGSTH typ (typ) (V): 1.45
QG (typ) (nC): 2.5
QGD (typ) (nC): 0.66
QGS (typ) (nC): 0.93
ID - silicon limited at TC=25°C (A): 10
ID - package limited (A): 22
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD13303W1015
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 1mm x 1.5mm WLP 封装的单通道、20mΩ、12V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 12
VGS (V): 8
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 20
VGSTH typ (typ) (V): 0.85
QG (typ) (nC): 3.9
QGD (typ) (nC): 0.4
QGS (typ) (nC): 1
ID - silicon limited at TC=25°C (A): 3.5
ID - package limited (A): 3.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 12
VGS (V): 8
Type: N-channel
Configuration: Single
Rds(on) at VGS=4.5 V (max) (mΩ): 20
VGSTH typ (typ) (V): 0.85
更多
QG (typ) (nC): 3.9
QGD (typ) (nC): 0.4
QGS (typ) (nC): 1
ID - silicon limited at TC=25°C (A): 3.5
ID - package limited (A): 3.5
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD18563Q5A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单通道、6.8mΩ、60V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6.8
Rds(on) at VGS=4.5 V (max) (mΩ): 10.8
VGSTH typ (typ) (V): 2
QG (typ) (nC): 15
QGD (typ) (nC): 2.9
QGS (typ) (nC): 3.3
ID - silicon limited at TC=25°C (A): 93
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6.8
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 10.8
VGSTH typ (typ) (V): 2
QG (typ) (nC): 15
QGD (typ) (nC): 2.9
QGS (typ) (nC): 3.3
ID - silicon limited at TC=25°C (A): 93
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
