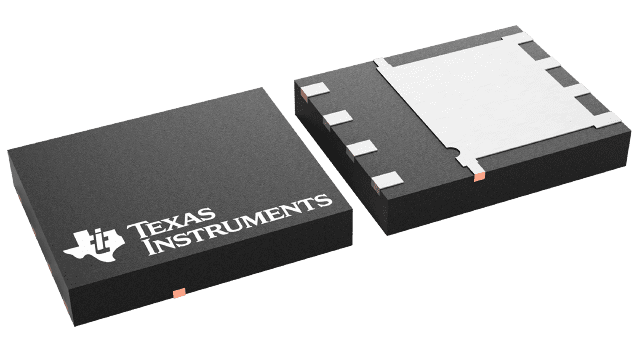

CSD87351ZQ5D
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的 32A、30V、N 沟道同步降压 NexFET™ 功率 MOSFET 电源块
VDS (V): 30
VGS (V): 10
Type: Power block
Configuration: PowerBlock
ID - continuous drain current at TA=25°C (A): 32
Power loss (W): 2.5
Ploss current (A): 20
Features: Power supply
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 10
Type: Power block
Configuration: PowerBlock
ID - continuous drain current at TA=25°C (A): 32
Power loss (W): 2.5
Ploss current (A): 20
Features: Power supply
Rating: Catalog
Operating temperature range (°C): -55 to 150

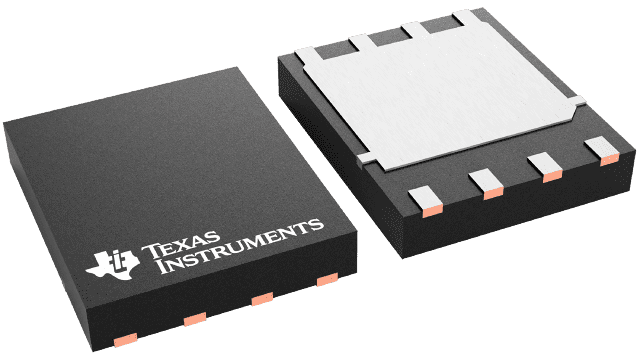

CSD16556Q5B
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、1.5mΩ、25V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 25
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 1.07
Rds(on) at VGS=4.5 V (max) (mΩ): 1.5
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 37
QGD (typ) (nC): 13
QGS (typ) (nC): 12
ID - silicon limited at TC=25°C (A): 263
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 25
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 1.07
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 1.5
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 37
QGD (typ) (nC): 13
QGS (typ) (nC): 12
ID - silicon limited at TC=25°C (A): 263
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD18502Q5B
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、2.3mΩ、40V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 40
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 2.3
Rds(on) at VGS=4.5 V (max) (mΩ): 3.3
VGSTH typ (typ) (V): 1.8
QG (typ) (nC): 52
QGD (typ) (nC): 8.4
QGS (typ) (nC): 10.3
ID - silicon limited at TC=25°C (A): 204
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 40
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 2.3
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 3.3
VGSTH typ (typ) (V): 1.8
QG (typ) (nC): 52
QGD (typ) (nC): 8.4
QGS (typ) (nC): 10.3
ID - silicon limited at TC=25°C (A): 204
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD18532Q5B
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、3.2mΩ、60V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 3.2
Rds(on) at VGS=4.5 V (max) (mΩ): 4.3
VGSTH typ (typ) (V): 1.8
QG (typ) (nC): 44
QGD (typ) (nC): 6.9
QGS (typ) (nC): 10
ID - silicon limited at TC=25°C (A): 172
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 3.2
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 4.3
VGSTH typ (typ) (V): 1.8
QG (typ) (nC): 44
QGD (typ) (nC): 6.9
QGS (typ) (nC): 10
ID - silicon limited at TC=25°C (A): 172
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

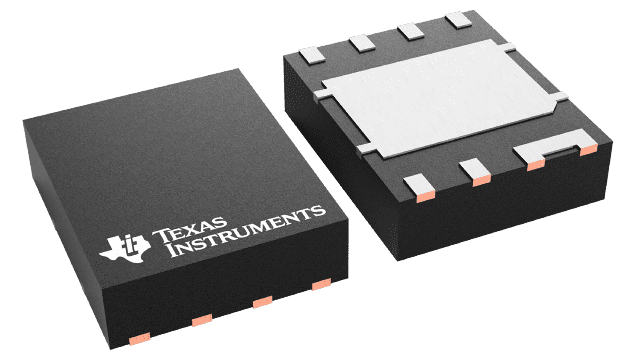

CSD17552Q5A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、6.2mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6.2
Rds(on) at VGS=4.5 V (max) (mΩ): 7.5
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 9
QGD (typ) (nC): 2
QGS (typ) (nC): 3.6
ID - silicon limited at TC=25°C (A): 88
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6.2
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 7.5
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 9
QGD (typ) (nC): 2
QGS (typ) (nC): 3.6
ID - silicon limited at TC=25°C (A): 88
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD17559Q5
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、1.5mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 1.15
Rds(on) at VGS=4.5 V (max) (mΩ): 1.5
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 39
QGD (typ) (nC): 9.3
QGS (typ) (nC): 14.4
ID - silicon limited at TC=25°C (A): 257
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 1.15
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 1.5
VGSTH typ (typ) (V): 1.4
QG (typ) (nC): 39
QGD (typ) (nC): 9.3
QGS (typ) (nC): 14.4
ID - silicon limited at TC=25°C (A): 257
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

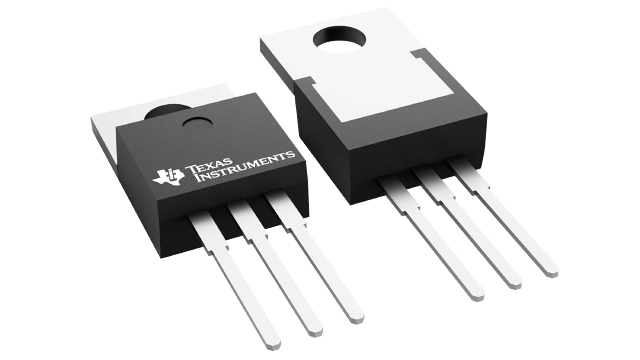

CSD18504KCS
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 TO-220 封装的单路、7mΩ、40V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 40
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 7
Rds(on) at VGS=4.5 V (max) (mΩ): 10
VGSTH typ (typ) (V): 1.9
QG (typ) (nC): 19
QGD (typ) (nC): 3.5
QGS (typ) (nC): 4.4
ID - silicon limited at TC=25°C (A): 89
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 175
VDS (V): 40
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 7
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 10
VGSTH typ (typ) (V): 1.9
QG (typ) (nC): 19
QGD (typ) (nC): 3.5
QGS (typ) (nC): 4.4
ID - silicon limited at TC=25°C (A): 89
ID - package limited (A): 100
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 175
CSD18534Q5A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 5mm x 6mm SON 封装的单路、9.8mΩ、60V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 9.8
Rds(on) at VGS=4.5 V (max) (mΩ): 12.4
VGSTH typ (typ) (V): 1.9
QG (typ) (nC): 17
QGD (typ) (nC): 3.5
QGS (typ) (nC): 3.2
ID - silicon limited at TC=25°C (A): 69
ID - package limited (A): 50
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 60
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 9.8
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 12.4
VGSTH typ (typ) (V): 1.9
QG (typ) (nC): 17
QGD (typ) (nC): 3.5
QGS (typ) (nC): 3.2
ID - silicon limited at TC=25°C (A): 69
ID - package limited (A): 50
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150

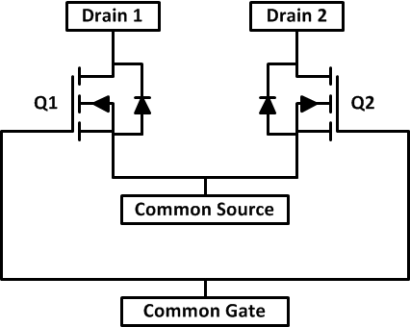

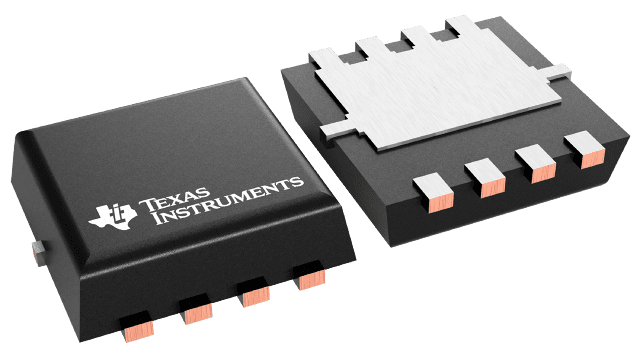

CSD87312Q3E
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 3mm x 3mm SON 封装的双路共源极、38mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 10
Type: N-channel
Configuration: Dual Common Source
Rds(on) at VGS=4.5 V (max) (mΩ): 38
VGSTH typ (typ) (V): 1
QG (typ) (nC): 6.3
QGD (typ) (nC): 0.7
QGS (typ) (nC): 1.9
ID - silicon limited at TC=25°C (A): 27
ID - package limited (A): 27
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 10
Type: N-channel
Configuration: Dual Common Source
Rds(on) at VGS=4.5 V (max) (mΩ): 38
VGSTH typ (typ) (V): 1
更多
QG (typ) (nC): 6.3
QGD (typ) (nC): 0.7
QGS (typ) (nC): 1.9
ID - silicon limited at TC=25°C (A): 27
ID - package limited (A): 27
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
CSD17552Q3A
数据:
分类: 半导体分立器件和附件 / 晶体管 / 普通晶体管 / 场效应晶体管 / 绝缘栅场效应晶体管
描述: 采用 3mm x 3mm SON 封装的单路、6mΩ、30V、N 沟道 NexFET™ 功率 MOSFET
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6
Rds(on) at VGS=4.5 V (max) (mΩ): 8.1
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 9
QGD (typ) (nC): 2.3
QGS (typ) (nC): 3.6
ID - silicon limited at TC=25°C (A): 74
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
VDS (V): 30
VGS (V): 20
Type: N-channel
Configuration: Single
Rds(on) at VGS=10 V (max) (mΩ): 6
更多
Rds(on) at VGS=4.5 V (max) (mΩ): 8.1
VGSTH typ (typ) (V): 1.5
QG (typ) (nC): 9
QGD (typ) (nC): 2.3
QGS (typ) (nC): 3.6
ID - silicon limited at TC=25°C (A): 74
ID - package limited (A): 60
Logic level: Yes
Rating: Catalog
Operating temperature range (°C): -55 to 150
