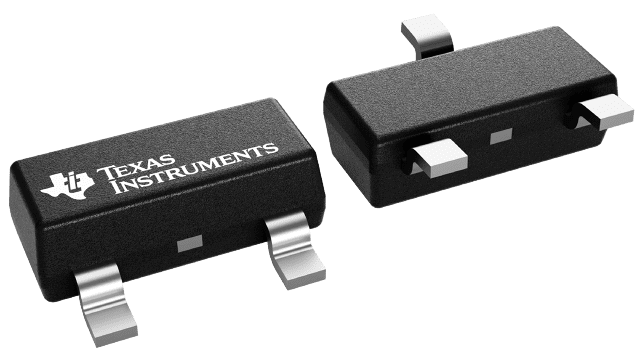

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 137.5 Vrwm (V): 18 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 4 IEC 61000-4-2 contact (±V): 30000 IEC 61000-4-5 (A): 5.5 Features: ESD Protection Clamping voltage (V): 22 Dynamic resistance (typ): 0.32 Interface type: General purpose, RS-485/432/422/232 Breakdown voltage (min) (V): 19 IO leakage current (max) (nA): 50 Rating: Catalog Operating temperature range (°C): -55 to 150 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 137.5 Vrwm (V): 18 Bi-/uni-directional: Bi-directional 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 133 Vrwm (V): 18 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 4 IEC 61000-4-2 contact (±V): 30000 IEC 61000-4-5 (A): 5.5 Features: ESD Protection Clamping voltage (V): 23 Dynamic resistance (typ): 0.3 Interface type: General purpose, RS-485/432/422/232 Breakdown voltage (min) (V): 20 IO leakage current (max) (nA): 50 Rating: Automotive Operating temperature range (°C): -55 to 150 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 133 Vrwm (V): 18 Bi-/uni-directional: Bi-directional 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 210 Vrwm (V): 36 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 2.8 IEC 61000-4-2 contact (±V): 25000 IEC 61000-4-5 (A): 4.3 Features: ESD Protection Clamping voltage (V): 63 Dynamic resistance (typ): 0.5 Interface type: CAN, General purpose Breakdown voltage (min) (V): 37.8 IO leakage current (max) (nA): 500 Rating: Automotive Operating temperature range (°C): -55 to 150 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 210 Vrwm (V): 36 Bi-/uni-directional: Bi-directional 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 170 Vrwm (V): 36 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 2.8 IEC 61000-4-2 contact (±V): 18000 IEC 61000-4-5 (A): 3 Features: ESD Protection Clamping voltage (V): 64 Dynamic resistance (typ): 0.5 Interface type: CAN-FD, General purpose Breakdown voltage (min) (V): 40 IO leakage current (max) (nA): 50 Rating: Automotive Operating temperature range (°C): -55 to 150 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 170 Vrwm (V): 36 Bi-/uni-directional: Bi-directional 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 75 Vrwm (V): 12 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 1.5 IEC 61000-4-2 contact (±V): 22000 IEC 61000-4-5 (A): 3 Features: ESD Protection Clamping voltage (V): 20 Dynamic resistance (typ): 0.45 Interface type: General purpose, RS-485/432/422/232 Breakdown voltage (min) (V): 14 IO leakage current (max) (nA): 1000 Rating: Catalog Operating temperature range (°C): -40 to 125 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 75 Vrwm (V): 12 Bi-/uni-directional: Bi-directional 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 600 Vrwm (V): 12 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 9.5 IEC 61000-4-2 contact (±V): 30000 IEC 61000-4-5 (A): 25 Features: ESD Protection Clamping voltage (V): 23.8 Dynamic resistance (typ): 0.4 Interface type: RS-485/432/422/232 Breakdown voltage (min) (V): 14 IO leakage current (max) (nA): 50 Rating: Catalog Operating temperature range (°C): -40 to 125 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 600 Vrwm (V): 12 Bi-/uni-directional: Bi-directional 更多

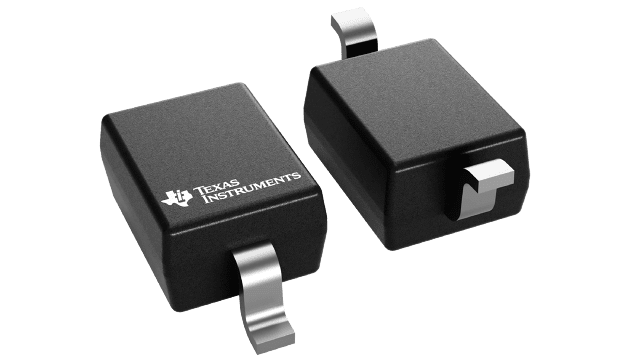

Package name: SOD323 Peak pulse power (8/20 μs) (max) (W): 170 Vrwm (V): 3.6 Bi-/uni-directional: Uni-Directional Number of channels: 1 IO capacitance (typ) (pF): 4.5 IEC 61000-4-2 contact (±V): 30000 IEC 61000-4-5 (A): 25 Features: Surge protection Clamping voltage (V): 6.5 Interface type: Ethernet, General purpose, USB 2.0 Breakdown voltage (min) (V): 4.5 IO leakage current (max) (nA): 50 Rating: Catalog Operating temperature range (°C): -40 to 125 Package name: SOD323 Peak pulse power (8/20 μs) (max) (W): 170 Vrwm (V): 3.6 Bi-/uni-directional: Uni-Directional Number of channels: 1 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 170 Vrwm (V): 36 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 2.8 IEC 61000-4-2 contact (±V): 18000 IEC 61000-4-5 (A): 3 Features: ESD Protection Clamping voltage (V): 64 Dynamic resistance (typ): 0.5 Interface type: CAN-FD, General purpose Breakdown voltage (min) (V): 40 IO leakage current (max) (nA): 50 Rating: Catalog Operating temperature range (°C): -55 to 150 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 170 Vrwm (V): 36 Bi-/uni-directional: Bi-directional 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 210 Vrwm (V): 36 Bi-/uni-directional: Bi-directional Number of channels: 2 IO capacitance (typ) (pF): 2.8 IEC 61000-4-2 contact (±V): 25000 IEC 61000-4-5 (A): 4.3 Features: ESD Protection Clamping voltage (V): 63 Dynamic resistance (typ): 0.5 Interface type: CAN, General purpose Breakdown voltage (min) (V): 37.8 IO leakage current (max) (nA): 500 Rating: Catalog Operating temperature range (°C): -55 to 150 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 210 Vrwm (V): 36 Bi-/uni-directional: Bi-directional 更多

Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 2800 IEC 61000-4-5 (A): 60 Vrwm (V): 24 Breakdown voltage (min) (V): 24.8 Bi-/uni-directional: Uni-Directional Number of channels: 1 IO capacitance (typ) (pF): 54 Clamping voltage (V): 35, 38 Package name: SOT-23-3 Peak pulse power (8/20 μs) (max) (W): 2800 IEC 61000-4-5 (A): 60 Vrwm (V): 24 Breakdown voltage (min) (V): 24.8 Bi-/uni-directional: Uni-Directional Number of channels: 1 IO capacitance (typ) (pF): 54 Clamping voltage (V): 35, 38
