Configuration: Discrete I[D ](@100°C) max: 45.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Qualification: COTS Die Size: 6 TID max: 100.0Krad(Si) ESD Class: Class 3B SEE: Yes R[DS (on)](@25°C) max: 12.0mΩ Generation: R7 Q[G]: 162.0C Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 28.5A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Die Size: 6 QPL Part Number: 2N7586T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 41.0mΩ Generation: R6 Qualification: COTS Q[G]: 220.0C Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 250.0V

Configuration: Discrete I[D ](@100°C) max: 18.0A I[D ](@25°C) max: 18.0A V[F] max: 1.2V Package: TO-257AA Polarity: N Die Size: 3 QPL Part Number: 2N7482T3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 30.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Q[G]: 65.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 30.0V

Configuration: Discrete I[D ](@100°C) max: 75.0A I[D ](@25°C) max: 75.0A V[F] max: 1.3V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7468U2 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 5.6mΩ Generation: R5 Q[G]: 165.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 6.0A I[D ](@25°C) max: 9.4A V[F] max: 1.4V Package: SMD-0.5 Polarity: N Qualification: COTS Die Size: 3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 400.0mΩ Generation: R4 Q[G]: 50.0nC Optional TID Rating(kRad(si)): 100 300 500 V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 12.0A I[D ](@25°C) max: 19.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 V[BRDSS] min: 150.0V QPL Part Number: 2N7589U3 TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 88.0mΩ Generation: R6 Q[G]: 50.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

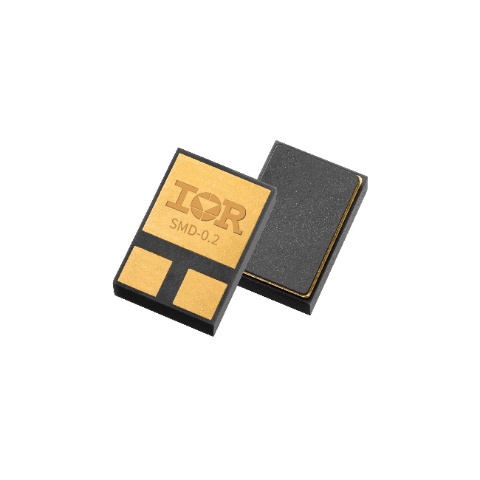

Configuration: Discrete I[D ](@100°C) max: 2.0A I[D ](@25°C) max: 3.2A V[F] max: 1.2V Package: SMD-0.2 Polarity: N Die Size: 1 TID max: 300.0Krad(Si) ESD Class: Class 1B SEE: Yes R[DS (on)](@25°C) max: 1100.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 13.0nC Qualification: COTS V[BRDSS]: 250.0V

P[tot] max: 250.0W Comments: Package SMD2 I[Dpuls]: 214 A Language: SPICE Generation: PowerMOS V[DS]: 250 V QPL Part Number: 5205/027 Polarity: N Optional TID Rating(kRad(si)): 100 V[F] max: 1.2V Qualification: ESA Die Size: 3 Package: SMD-2 V[GS]: +/-20 V Q[G]: 150.0nC ESD Class: class 1C TID max: 100.0Krad(Si) Product Category: Rad tol MOSFETs V[BRDSS]: 250.0V I[D ] max: 54.0A R[DS (on)] max: 30.0Ω

Configuration: Discrete I[D ](@100°C) max: 69.0A I[D ](@25°C) max: 75.0A V[F] max: 1.2V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7469U2 TID max: 500.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 12.0mΩ Generation: R5 Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 12.5A I[D ](@25°C) max: 20.0A V[F] max: 1.2V Package: SMD-0.5 Polarity: N Die Size: 3 QPL Part Number: 2N7485U3 TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 80.0mΩ Generation: R5 Q[G]: 48.0nC Optional TID Rating(kRad(si)): 100 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 130.0V
