Configuration: Discrete I[D ](@100°C) max: 35.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Die Size: 6 QPL Part Number: 2N7584T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 29.0mΩ Generation: R6 Q[G]: 240.0C Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Generation: R7 Qualification: COTS I[D ](@25°C) max: 6.5A R[DS (on)](@25°C) max: 290.0mΩ Q[G]: 11.0nC Package: SMD-0.2 TID max: 300.0Krad(Si) Die Size: 1 QPL Part Number: JANSF2N7609U8 ESD Class: Class 1A per MIL-STD-750, Method 1020 Polarity: N Optional TID Rating(kRad(si)): 100 300 V[F] max: 1.2V V[BRDSS]: 100.0V

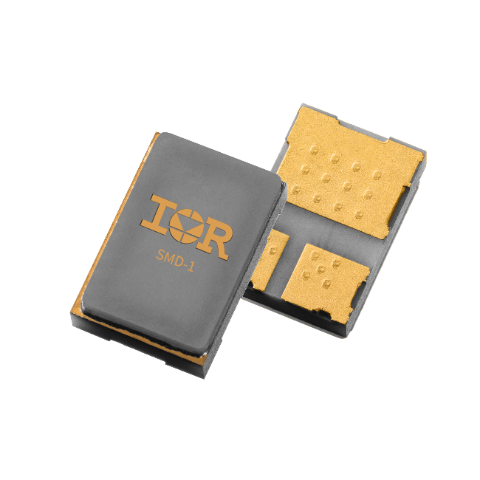

Configuration: Discrete I[D ](@100°C) max: 16.0A I[D ](@25°C) max: 26.0A V[F] max: 1.4V Package: SMD-1 Polarity: N Qualification: DLA Die Size: 5 QPL Part Number: 2N7269U TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 100.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Q[G]: 170.0nC V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 0.5A I[D ](@25°C) max: 0.8A V[F] max: 1.2V Package: UBC Polarity: N QPL Part Number: 2N7616UBC TID max: 100.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 680.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 3.6nC Die Size: Z Language: SPICE Language: SPICE Voltage Class: 100.0V Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 20.0A I[D ](@25°C) max: 20.0A V[F] max: 1.2V Package: TO-257AA Low Ohmic Polarity: N Qualification: QIRL Die Size: 3 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 45.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 34.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 5.0A I[D ](@25°C) max: 8.0A V[F] max: 1.5V Package: TO-205AF Polarity: N Die Size: 3 QPL Part Number: 2N7261 TID max: 500.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 180.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Q[G]: 50.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 20.0A I[D ](@25°C) max: 25.0A V[F] max: 1.2V Package: SMD-0.2C Polarity: N QPL Part Number: 2N7650U8C TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 30.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 100 300 Q[G]: 31.0nC Qualification: COTS Die Size: 1.7 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 12.0A I[D ](@25°C) max: 12.0A V[F] max: 1.2V Package: TO-205AF Polarity: N Die Size: 3 TID max: 100.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 65.0mΩ Generation: R6 Optional TID Rating(kRad(si)): 100 300 Qualification: QIRL Q[G]: 54.0nC V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 35.0A I[D ](@25°C) max: 35.0A V[F] max: 1.5V Package: TO-254AA Polarity: N Die Size: 6 QPL Part Number: 2N7431 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 21.0mΩ Generation: R4 Q[G]: 270.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 45.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Die Size: 6 QPL Part Number: 2N7580T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 11.0mΩ Generation: R6 Q[G]: 170.0C Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS Qualification: COTS V[BRDSS]: 100.0V
