Configuration: Discrete
I[D ](@100°C) max: 49.0A
I[D ](@25°C) max: 56.0A
V[F] max: 1.2V

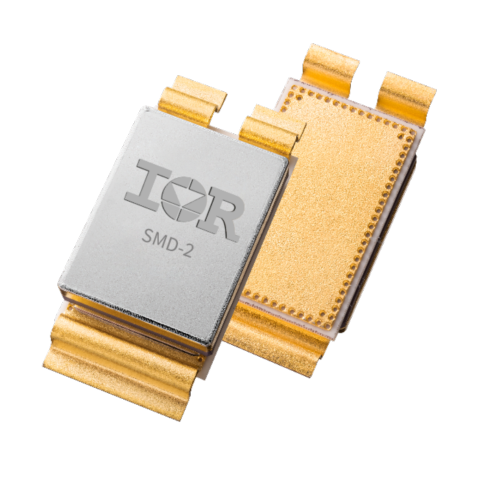

Package: SMD-2
Polarity: N
Die Size: 6
QPL Part Number: 2N7581U2
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 18.0mΩ
Generation: R6
Qualification: QIRL
Q[G]: 230.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 150.0V
P[tot] max: 75.0W
Comments: Package TO257AA
Language: SPICE
Generation: PowerMOS
I[Dpuls]: 100 A
V[DS]: 60 V
Qualification: COTS
Polarity: N
Optional TID Rating(kRad(si)): 100
V[F] max: 1.3V
Die Size: 3
Package: TO-257AA
V[GS]: +/-20 V
Q[G]: 26.0nC
I[D ] max: 23.0A
ESD Class: class 2
TID max: 100.0Krad(Si)
Product Category: Rad tol MOSFETs
V[BRDSS]: 60.0V
R[DS (on)] max: 40.0Ω
Configuration: Discrete
I[D ](@100°C) max: 45.0A
I[D ](@25°C) max: 45.0A
V[F] max: 1.2V
Package: TO-254AA Tabless Low Ohmic
Polarity: N
Qualification: COTS
Die Size: 6
TID max: 100.0Krad(Si)
ESD Class: Class 3B
R[DS (on)](@25°C) max: 4.5mΩ
Generation: R5
Q[G]: 240.0nC
Optional TID Rating(kRad(si)): 100 300 500
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 30.0V
I[D ](@25°C) max: 4.4A
V[F] max: 1.2V
Package: SMD 0.1
Polarity: N
Q[G]: 10.0nC
Qualification: DLA
QPL Part Number: 2N7657U9C
Optional TID Rating(kRad(si)): 100 300
TID max: 300.0Krad(Si)
ESD Class: 1B
R[DS (on)](@25°C) max: 570.0mΩ
Generation: R9
Die Size: 1
V[BRDSS]: 250.0V
Configuration: Discrete
I[D ](@100°C) max: 10.5A
I[D ](@25°C) max: 17.0A
Package: TO-257AA Low Ohmic
Polarity: N
QPL Part Number: 2N7649T3
TID max: 300.0Krad(Si)
ESD Class: Class 2
SEE: Yes
R[DS (on)](@25°C) max: 110.0mΩ
Generation: R9
Optional TID Rating(kRad(si)): 300
Qualification: DLA
Q[G]: 34.0nC
Die Size: 3
V[F] max: 1.2V
Voltage Class: 100.0V
Language: SPICE
Product Category: Rad hard MOSFETS
V[BRDSS]: 250.0V
P[tot] max: 208.0W
Comments: Package TO254AA
Language: SPICE
Generation: PowerMOS
I[Dpuls]: 200 A
V[DS]: 60 V
QPL Part Number: 5205/032/03
Polarity: N
Optional TID Rating(kRad(si)): 100
V[F] max: 1.3V
Qualification: ESA
Die Size: 3
Package: TO-254AA Low Ohmic
V[GS]: +/-20 V
Q[G]: 75.0nC
ESD Class: class 2
TID max: 100.0Krad(Si)
Product Category: Rad tol MOSFETs
V[BRDSS]: 60.0V
I[D ] max: 45.0A
R[DS (on)] max: 15.0Ω
Qualification: COTS
I[D ](@25°C) max: 9.0A
R[DS (on)](@25°C) max: 150.0mΩ
Q[G]: 9.5nC
Package: SMD-0.1
TID max: 100.0Krad(Si)
Die Size: 1
QPL Part Number: 2N7656U9C
ESD Class: 1B
Polarity: N
Generation: R9
Optional TID Rating(kRad(si)): 100 300
V[F] max: 1.2V
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 14.0A
I[D ](@25°C) max: 23.0A
V[F] max: 1.2V
Package: SMD-0.2C
Polarity: N
QPL Part Number: 2N7651U8C
TID max: 100.0Krad(Si)
ESD Class: Class 1C
SEE: Yes
R[DS (on)](@25°C) max: 55.0mΩ
Generation: R9
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 23.0nC
Die Size: 1.7
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 22.0A
I[D ](@25°C) max: 30.0A
V[F] max: 1.2V
Package: TO-257AA Tabless Low Ohmic
Polarity: N
QPL Part Number: 2N7648D5
TID max: 300.0Krad(Si)
ESD Class: Class 2
SEE: Yes
R[DS (on)](@25°C) max: 35.0mΩ
Generation: R9
Optional TID Rating(kRad(si)): 100 300
Qualification: COTS
Q[G]: 44.0nC
Die Size: 3
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 16.0A
I[D ](@25°C) max: 22.0A
V[F] max: 1.2V

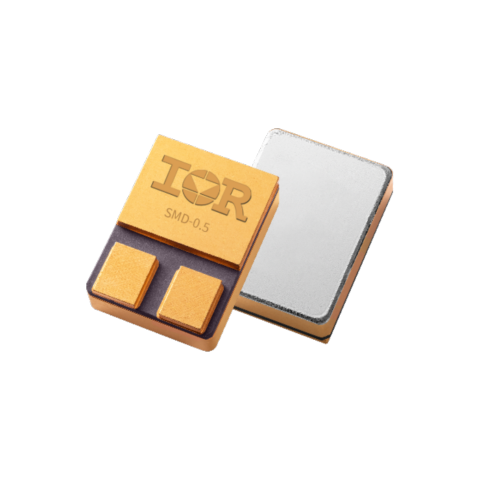

Package: SMD-0.5
Polarity: N
Die Size: 3
QPL Part Number: 2N7481U3
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 75.0mΩ
Generation: R5
Q[G]: 50.0nC
Optional TID Rating(kRad(si)): 100 300 500
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
