Configuration: Discrete
I[D ](@100°C) max: 18.0A
I[D ](@25°C) max: 18.0A
V[F] max: 1.2V
Package: TO-257AA
Polarity: N
Die Size: 3
QPL Part Number: 2N7482T3
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 30.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300 500
Qualification: DLA
Q[G]: 65.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 30.0V
Configuration: Discrete
I[D ](@100°C) max: 19.0A
I[D ](@25°C) max: 31.0A
V[F] max: 1.2V

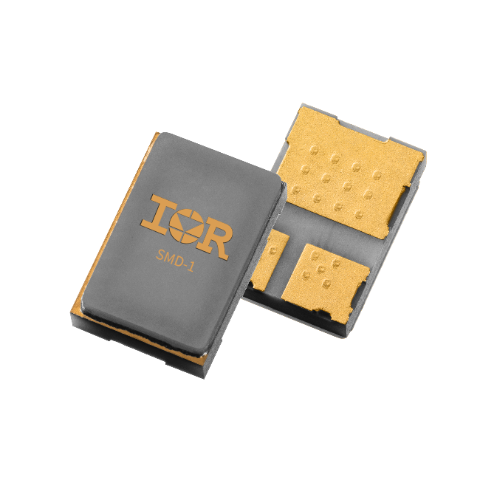

Package: SMD-1
Polarity: N
Qualification: COTS
Die Size: 5
TID max: 100.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 60.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100
Q[G]: 132.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 200.0V
Configuration: Discrete
I[D ](@100°C) max: 14.0A
I[D ](@25°C) max: 23.0A
V[F] max: 1.2V
Package: SMD-0.2C
Polarity: N
QPL Part Number: 2N7651U8C
TID max: 300.0Krad(Si)
ESD Class: Class 1C
SEE: Yes
R[DS (on)](@25°C) max: 55.0mΩ
Generation: R9
Optional TID Rating(kRad(si)): 100 300
Q[G]: 23.0nC
Qualification: COTS
Die Size: 1.7
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 14.0A
I[D ](@25°C) max: 22.0A
V[F] max: 1.4V
Package: TO-254AA
Polarity: N
Qualification: DLA
Die Size: 6
QPL Part Number: 2N7391
TID max: 100.0Krad(Si)
ESD Class: Class 3B
SEE: Yes
R[DS (on)](@25°C) max: 200.0mΩ
Generation: R4
Q[G]: 185.0nC
Optional TID Rating(kRad(si)): 100
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 400.0V
Configuration: Discrete
I[D ](@100°C) max: 25.0A
I[D ](@25°C) max: 35.0A
V[F] max: 1.8V
Package: TO-254AA
Polarity: N
Qualification: QIRL
Die Size: 6
QPL Part Number: 2N7433
TID max: 100.0Krad(Si)
ESD Class: Class 3B
R[DS (on)](@25°C) max: 70.0mΩ
Generation: R4
Q[G]: 290.0nC
Optional TID Rating(kRad(si)): 100 300 500
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 200.0V
Configuration: Discrete
I[D ](@100°C) max: 35.0A
I[D ](@25°C) max: 53.5A
V[F] max: 1.2V

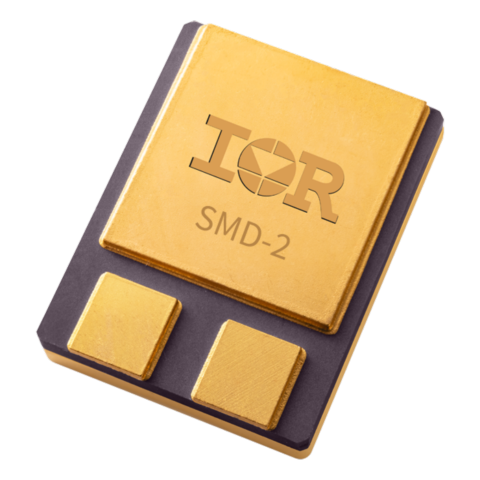

Package: SMD-2
Polarity: N
Die Size: 6
QPL Part Number: 2N7473U2
TID max: 100.0Krad(Si)
ESD Class: Class 3B
SEE: Yes
R[DS (on)](@25°C) max: 38.0mΩ
Generation: R5
Q[G]: 155.0nC
Optional TID Rating(kRad(si)): 100
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 200.0V
Configuration: Discrete
I[D ](@100°C) max: 1.6A
I[D ](@25°C) max: 2.6A
V[F] max: 1.2V
Package: TO-205AF
Polarity: N
Die Size: 3
QPL Part Number: 2N7464T2
TID max: 100.0Krad(Si)
ESD Class: Class 1C
SEE: Yes
R[DS (on)](@25°C) max: 1650.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100
Qualification: COTS
Q[G]: 30.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 500.0V
P[tot] max: 208.0W
I[Dpuls]: 180 A
Comments: Package TO254AA
Language: SPICE
Generation: PowerMOS
V[DS]: 250 V
Qualification: COTS
Polarity: N
Optional TID Rating(kRad(si)): 100
V[F] max: 1.4V
Die Size: 3
Package: TO-254AA
V[GS]: +/-20 V
Q[G]: 70.0nC
I[D ] max: 45.0A
ESD Class: class 1C
TID max: 100.0Krad(Si)
Product Category: Rad tol MOSFETs
V[BRDSS]: 250.0V
R[DS (on)] max: 50.0Ω
Configuration: Discrete
I[D ](@100°C) max: 10.5A
I[D ](@25°C) max: 17.0A
V[F] max: 1.2V

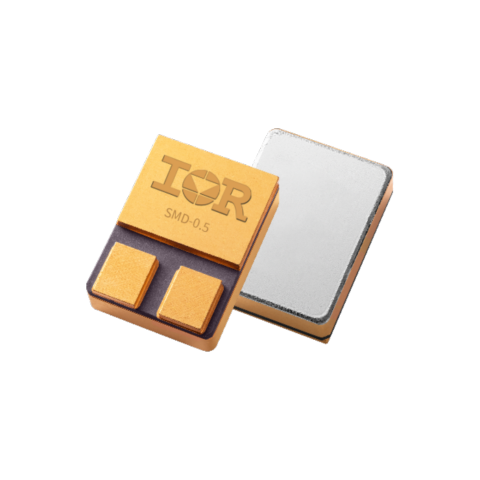

Package: SMD-0.5
Polarity: N
Die Size: 3
QPL Part Number: 2N7649U3
TID max: 300.0Krad(Si)
ESD Class: Class 2
SEE: Yes
R[DS (on)](@25°C) max: 110.0mΩ
Generation: R9
Q[G]: 34.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 250.0V
ESD Class: Class 3B
Package: TO-254AA Low Ohmic
I[D ](@100°C) max: 45.0A
I[D ](@25°C) max: 45.0A
Polarity: N
Qualification: COTS
R[DS (on)](@25°C) max: 19.5mΩ
SEE: 88.2MeV∙cm2/mg
SEE: Yes
TID max: 100.0Krad(Si)
V[F] max: 1.2V
Optional TID Rating(kRad(si)): 100
Die Size: 6
Q[G]: 165.0nC
Generation: R9
V[BRDSS]: 250.0V
