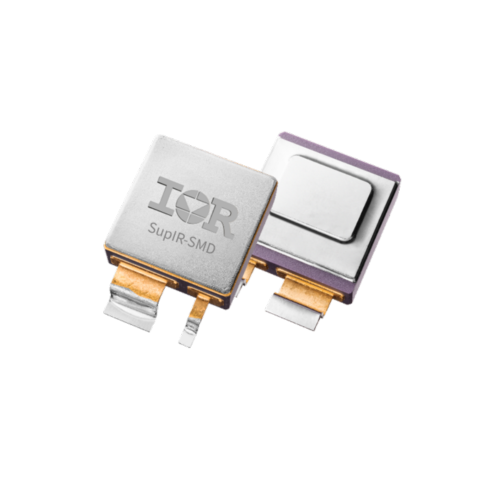

Configuration: Discrete I[D ](@100°C) max: 12.0A I[D ](@25°C) max: 20.0A V[F] max: 1.8V Package: SupIR-SMD Polarity: N Qualification: COTS TID max: 100.0Krad(Si) ESD Class: Class 3B SEE: Yes R[DS (on)](@25°C) max: 320.0mΩ Generation: R4 Die Size: 6 Q[G]: 220.0nC Optional TID Rating(kRad(si)): 100 V[BRDSS]: 500.0V

Configuration: Discrete I[D ](@100°C) max: 5.0A I[D ](@25°C) max: 8.0A V[F] max: 1.5V Package: TO-205AF Polarity: N Die Size: 3 QPL Part Number: 2N7261 TID max: 300.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 180.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Q[G]: 50.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 57.0A I[D ](@25°C) max: 75.0A V[F] max: 1.2V Package: SupIR-SMD Polarity: N QPL Part Number: 2N7472U2A TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 13.5mΩ Generation: R5 Die Size: 6 Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 130.0V

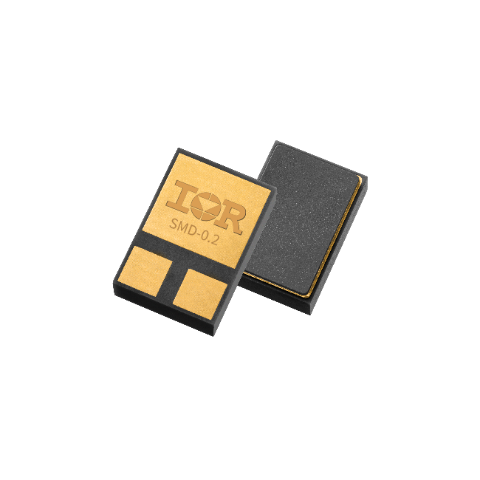

Configuration: Discrete I[D ](@100°C) max: 4.4A I[D ](@25°C) max: 6.9A V[F] max: 1.2V Package: SMD-0.2 Polarity: N Die Size: 1 QPL Part Number: 2N7503U8 TID max: 100.0Krad(Si) ESD Class: Class 1A R[DS (on)](@25°C) max: 220.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 15.0nC Qualification: COTS Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Qualification: COTS I[D ](@25°C) max: -100.0A R[DS (on)](@25°C) max: 9.0mΩ Q[G]: 221.0nC Package: SupIR-SMD TID max: 100.0Krad(Si) Die Size: 6 QPL Part Number: 2N7664U2A ESD Class: Class B Polarity: P Generation: R9 Optional TID Rating(kRad(si)): 100 300 V[F] max: -1.3V V[BRDSS]: -60.0V

Configuration: Discrete I[D ](@100°C) max: 62.0A I[D ](@25°C) max: 75.0A V[F] max: 1.2V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7472U2 TID max: 100.0Krad(Si) ESD Class: Class 3B SEE: Yes R[DS (on)](@25°C) max: 13.5mΩ Generation: R5 Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 130.0V

Comments: Package SMD05 P[tot] max: 75.0W Language: SPICE Generation: PowerMOS I[Dpuls]: 93 A V[DS]: 150 V QPL Part Number: 5205/031/01 Polarity: N Optional TID Rating(kRad(si)): 100 V[F] max: 1.2V Qualification: ESA Die Size: 3 Package: SMD-0.5 V[GS]: +/-20 V Q[G]: 25.5nC ESD Class: class 1C TID max: 100.0Krad(Si) Product Category: Rad tol MOSFETs V[BRDSS]: 150.0V I[D ] max: 23.0A R[DS (on)] max: 60.0Ω

Configuration: Discrete I[D ](@100°C) max: 45.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Low Ohmic Polarity: N Die Size: 6 QPL Part Number: 2N7580T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 11.0mΩ Generation: R6 Q[G]: 170.0C Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 100.0V

Configuration: Discrete I[D ](@100°C) max: 1.9A I[D ](@25°C) max: 3.0A V[F] max: 1.4V Package: TO-205AF Polarity: N Die Size: 3 QPL Part Number: 2N7463T2 TID max: 100.0Krad(Si) ESD Class: Class 1C SEE: Yes R[DS (on)](@25°C) max: 1200.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 Qualification: DLA Q[G]: 31.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 400.0V

P[tot] max: 75.0W Comments: Package SMD05 Language: SPICE Generation: PowerMOS I[Dpuls]: 24 A V[DS]: 650 V Qualification: COTS Polarity: N Optional TID Rating(kRad(si)): 100 V[F] max: 1.2V Die Size: 3 Package: SMD-0.5 V[GS]: +/-20 V Q[G]: 23.0nC I[D ] max: 8.0A ESD Class: class 1C TID max: 100.0Krad(Si) V[BRDSS]: 650.0V R[DS (on)] max: 450.0Ω
