Configuration: Discrete
I[D ](@100°C) max: 6.4A
I[D ](@25°C) max: 10.0A
V[F] max: 1.2V

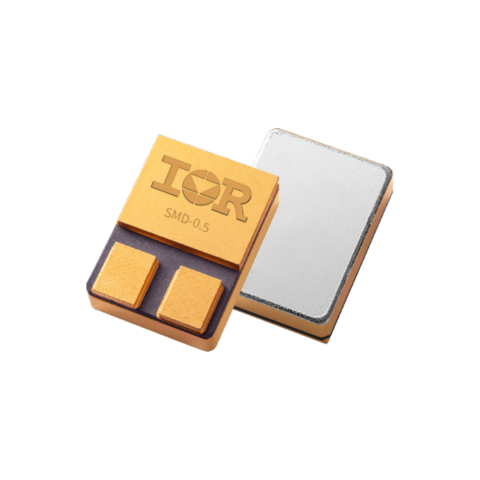

Package: SMD-0.5
Polarity: N
Die Size: 3
QPL Part Number: 2N7555U3
TID max: 100.0Krad(Si)
ESD Class: Class 1C
SEE: Yes
R[DS (on)](@25°C) max: 400.0mΩ
Generation: R5
Q[G]: 32.0nC
Optional TID Rating(kRad(si)): 100
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 250.0V
Configuration: Discrete
I[D ](@100°C) max: 4.4A
I[D ](@25°C) max: 6.9A
V[F] max: 1.2V

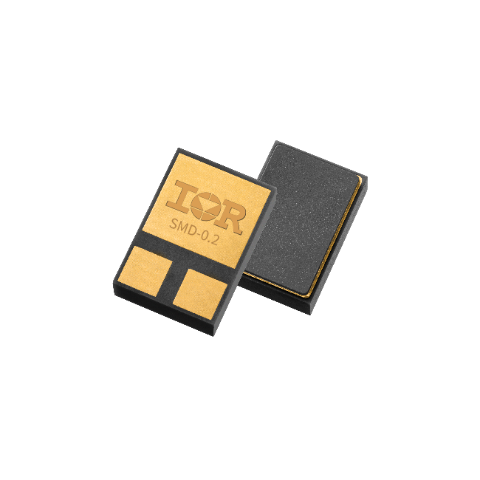

Package: SMD-0.2
Polarity: N
Die Size: 1
QPL Part Number: 2N7503U8
TID max: 100.0Krad(Si)
ESD Class: Class 1A
R[DS (on)](@25°C) max: 220.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Q[G]: 15.0nC
Qualification: COTS
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
P[tot] max: 75.0W
I[Dpuls]: 50 A
Comments: Package TO257AA
Language: SPICE
Generation: PowerMOS
V[DS]: 250 V
TID max: 100.0Krad(Si)
QPL Part Number: 5205/030/01
Polarity: N
Optional TID Rating(kRad(si)): 100
V[F] max: 1.2V
Qualification: ESA
Die Size: 3
Package: TO-257AA
V[GS]: +/-20 V
Q[G]: 25.0nC
ESD Class: class 1C
Product Category: Rad tol MOSFETs
V[BRDSS]: 250.0V
I[D ] max: 12.4A
R[DS (on)] max: 130.0Ω
Configuration: Discrete
I[D ](@100°C) max: 31.5A
I[D ](@25°C) max: 50.0A
V[F] max: 1.2V

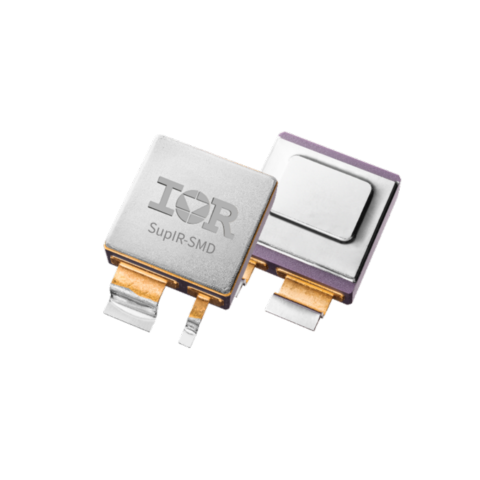

Package: SupIR-SMD
Polarity: N
QPL Part Number: 2N7585U2A
TID max: 100.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 40.0mΩ
Generation: R6
Die Size: 6
Q[G]: 220.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
V[BRDSS]: 250.0V
Configuration: Discrete
I[D ](@100°C) max: 31.0A
I[D ](@25°C) max: 49.0A
V[F] max: 1.2V

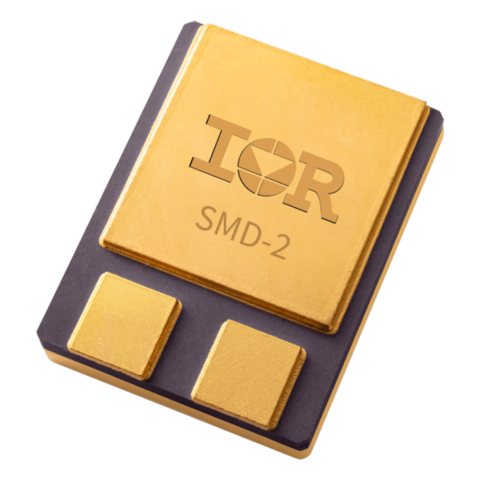

Package: SMD-2
Polarity: N
Die Size: 6
QPL Part Number: 2N7474U2
TID max: 100.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 60.0mΩ
Generation: R5
Q[G]: 165.0nC
Optional TID Rating(kRad(si)): 100
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 250.0V
Configuration: Discrete
I[D ](@100°C) max: 21.0A
I[D ](@25°C) max: 34.0A
V[F] max: 1.4V
Package: TO-254AA
Polarity: N
Die Size: 5
QPL Part Number: 2N7268
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 65.0mΩ
Generation: R4
Q[G]: 160.0nC
Optional TID Rating(kRad(si)): 100 300 500
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 100.0V
Configuration: Discrete
I[D ](@100°C) max: 62.0A
I[D ](@25°C) max: 75.0A
V[F] max: 1.2V
Package: SMD-2
Polarity: N
Die Size: 6
QPL Part Number: 2N7472U2
TID max: 100.0Krad(Si)
ESD Class: Class 3B
SEE: Yes
R[DS (on)](@25°C) max: 13.5mΩ
Generation: R5
Qualification: COTS
Q[G]: 160.0nC
Optional TID Rating(kRad(si)): 100
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 130.0V
Configuration: Discrete
I[D ](@100°C) max: 2.0A
I[D ](@25°C) max: 3.2A
V[F] max: 1.2V
Package: SMD-0.2
Polarity: N
Die Size: 1
TID max: 300.0Krad(Si)
ESD Class: Class 1B
SEE: Yes
R[DS (on)](@25°C) max: 1100.0mΩ
Generation: R7
Optional TID Rating(kRad(si)): 100 300
Q[G]: 13.0nC
Qualification: COTS
V[BRDSS]: 250.0V
Configuration: Discrete
I[D ](@100°C) max: 10.0A
I[D ](@25°C) max: 12.0A
V[F] max: 1.5V
Package: TO-205AF
Polarity: N
Die Size: 3
QPL Part Number: 2N7491T2
TID max: 300.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 45.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300 500
Qualification: DLA
Q[G]: 65.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS]: 30.0V
Configuration: Discrete
I[D ](@100°C) max: 7.0A
I[D ](@25°C) max: 12.0A
V[F] max: 1.6V
Package: TO-254AA
Polarity: N
Qualification: COTS
Die Size: 5
TID max: 100.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 510.0mΩ
Generation: R4
Q[G]: 140.0nC
Optional TID Rating(kRad(si)): 100
V[BRDSS]: 500.0V
