Configuration: Discrete I[D ](@100°C) max: 45.0A I[D ](@25°C) max: 45.0A V[F] max: 1.2V Package: TO-254AA Tabless Low Ohmic Polarity: N Die Size: 6 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 6.0mΩ Generation: R5 Qualification: QIRL Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 56.0A I[D ](@25°C) max: 75.0A V[F] max: 1.5V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7431U TID max: 300.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 15.0mΩ Generation: R4 Q[G]: 270.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 30.0A I[D ](@25°C) max: 35.0A V[F] max: 1.4V Package: TO-254AA Polarity: N Die Size: 5 QPL Part Number: 2N7394 TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 27.0mΩ Generation: R4 Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 500 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 2.2A I[D ](@25°C) max: 3.5A V[F] max: 1.4V Package: 18-pin LCC Polarity: N Qualification: COTS Die Size: 1 TID max: 300.0Krad(Si) ESD Class: Class 1A R[DS (on)](@25°C) max: 600.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 500 Q[G]: 11.0nC V[BRDSS]: 100.0V

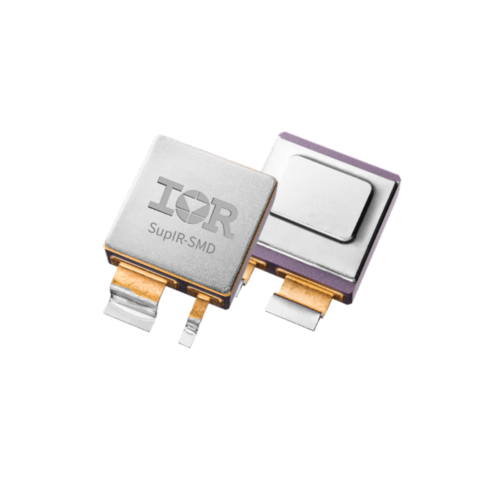

Configuration: Discrete I[D ](@100°C) max: 40.0A I[D ](@25°C) max: 56.0A V[F] max: 1.2V Package: SupIR-SMD Polarity: N QPL Part Number: 2N7583U2A TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 28.0mΩ Generation: R6 Die Size: 6 Q[G]: 240.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 75.0A I[D ](@25°C) max: 75.0A V[F] max: 1.3V Package: SMD-2 Polarity: N Die Size: 6 QPL Part Number: 2N7468U2 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 5.6mΩ Generation: R5 Qualification: COTS Q[G]: 165.0nC Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 60.0V

Configuration: Discrete I[D ](@100°C) max: 4.5A I[D ](@25°C) max: 7.0A V[F] max: 1.5V Package: TO-205AF Polarity: N Die Size: 3 QPL Part Number: 2N7498T2 TID max: 100.0Krad(Si) ESD Class: Class 1A SEE: Yes R[DS (on)](@25°C) max: 240.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 Qualification: COTS Q[G]: 47.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 200.0V

Configuration: Discrete I[D ](@100°C) max: 7.0A I[D ](@25°C) max: 11.0A V[F] max: 1.6V Package: TO-254AA Polarity: N Qualification: DLA Die Size: 5 QPL Part Number: 2N7270 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 450.0mΩ Generation: R4 Q[G]: 150.0nC Optional TID Rating(kRad(si)): 100 300 500 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS V[BRDSS]: 500.0V

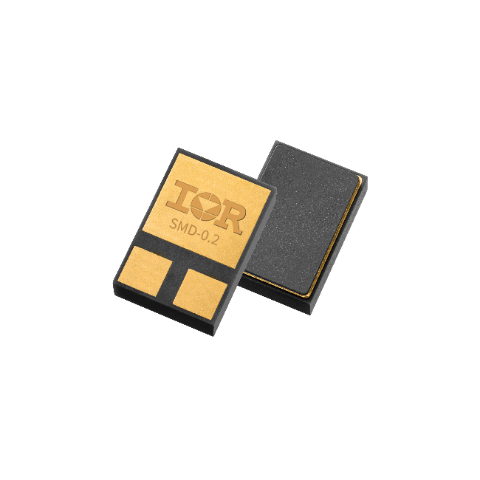

Configuration: Discrete I[D ](@100°C) max: 17.0A I[D ](@25°C) max: 17.0A V[F] max: 1.0V Package: SMD-0.2 Polarity: N Qualification: COTS TID max: 300.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 15.0mΩ Generation: R8 Optional TID Rating(kRad(si)): 100 300 Q[G]: 26.0nC Language: SPICE Voltage Class: 100.0V Die Size: 1.7 Product Category: Rad hard MOSFETS V[BRDSS]: 20.0V

Comments: Package TO254AA P[tot] max: 208.0W Language: SPICE Generation: PowerMOS I[Dpuls]: 180 A V[DS]: 150 V QPL Part Number: 5205/031/04 Polarity: N Optional TID Rating(kRad(si)): 100 V[F] max: 1.2V Qualification: ESA Die Size: 3 Package: TO-254AA V[GS]: +/-20 V Q[G]: 75.0nC ESD Class: class 1C TID max: 100.0Krad(Si) Product Category: Rad tol MOSFETs V[BRDSS]: 150.0V I[D ] max: 45.0A R[DS (on)] max: 27.0Ω
